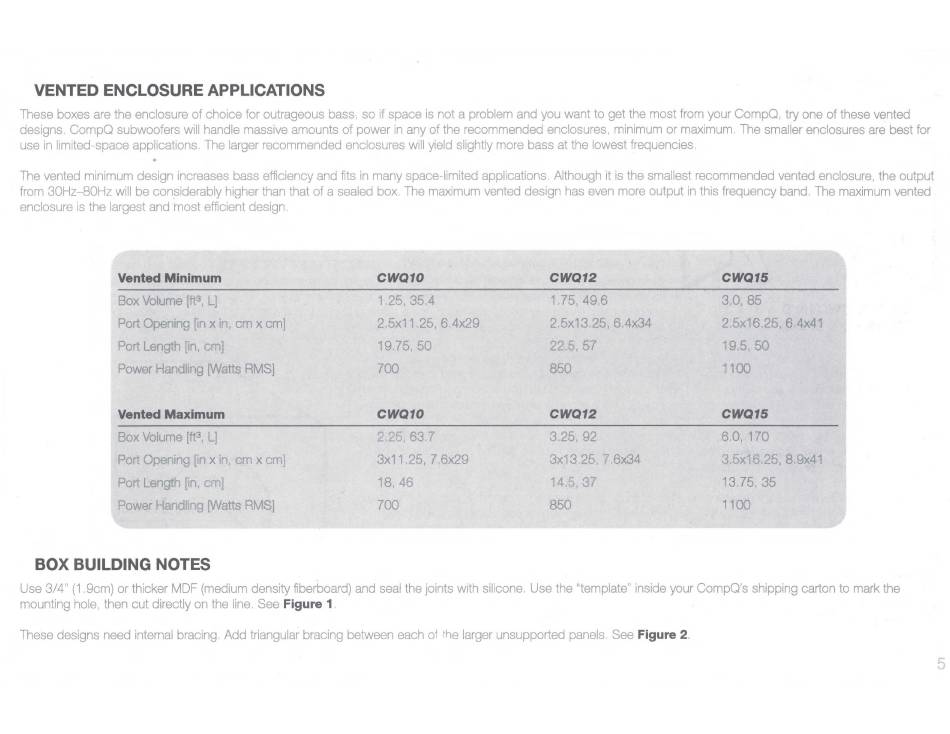

VENTED ENCLOSURE APPLICATIONS
These boxes are the enclosure of choice for outrageous bass, so if space is not a problem and you want to get the most from your CompQ, try one of these vented
designs. CompQ subwoofers will handle massive amounts of power in any of the recommended enclosures, minimum or maximum. The smaller enclosures are best for
use in limited-space applications. The larger recommended enclosures will yield slightly more bass at the lowest frequencies
The vented minimum design increases bass efficiency and fits in many space-limited applications Although it is the smallest recommended vented enclosure, the output
from 30Hz-80Hz will be con_siderably higher than that of a sealed box. The maximum vented design has even more output in this frequency band. The maximum vented
enclosure is the largest and tnost efficient design.
Vented Minimum CWQ10 CWQ12 CWQ15
Box Volume
lft
3 ,
L]
1.25, 35,4 1.75, 49.6 3,0, 85
Port Opening
[in
x in,
crn
x cm] 2.5x11.25, 6.4x29 2.5x13.25, 6.4x34 2.5x16,25, 6 .4x41
Port Length [in, cm]
19.75, 50
22.5, 57
19.5, 50
Power
Handling
[Watts RMS] 700
850 1100
Vented Maximum CWQ10 CWQ12 CWQ15
Box Volume [ft3, L]
2.25, 63.7
3.25, 92 6. 0 , 170
Port
Opening
(in x in, cm x cm] 3x11.25, 7.6x29 3x13.25, 7 .6x34
3.5x16.25,
8.9x41
Port Length
Pn,
cm] 18,46
14$, 37 13,75, 35
Power
Handling
[Watts
RMS]
700
850 1100
BOX BUILDING NOTES
Use 3/4" (1.9cm) or thicker MDF (medium density fiberboard) and seal the joints with silicone. Use the "template" inside your CompQ's shipping carton to mark the
mounting hole, then cut directly on the line. See
Figure 1.
These designs need internal bracing. Add triangular bracing between each of ~he larger unsupported panels . See Figure 2.
