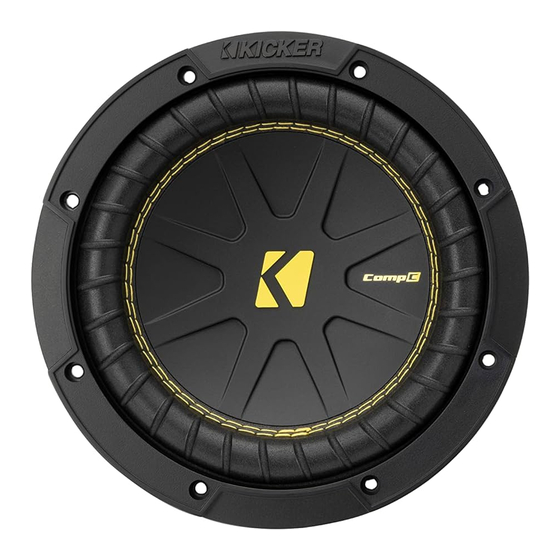

- Page 1 Owner’s Manual Manual del Propietario Manuel d’utilisatio Benutzerhandbuch KICKER CompC-Series Subwoofers select language seleccione el idioma choisir la langue sprache auswählen...
-
Page 2: Table Of Contents
Contents Overview ......3 Specifications ......4 Installation ...... 5 Wiring Configuration ....5 Box Building Notes ....7 Sealed Enclosures ....10 Vented Enclosures ....12 Warranty ...... 13 English 50CompC-b-230609... -
Page 3: Overview
VENTILATION. SUBWOOFERS SHOULD BE MOUNTED WITH AT LEAST 1 INCH (2.5CM) CLEARANCE BETWEEN THE FRONT OF THE SPEAKER AND ANY SURFACE. KICKER PRODUCTS ARE CAPABLE OF PRODUCING SOUND LEVELS THAT CAN PERMANENTLY DAMAGE YOUR HEARING! TURNING UP A SYSTEM TO A LEVEL THAT HAS AUDIBLE DISTORTION IS MORE DAMAGING TO YOUR EARS THAN LISTENING TO AN UNDISTORTED SYSTEM AT THE SAME VOLUME LEVEL. -
Page 4: Specifications
Please allow two weeks of break-in time for the speakers to reach optimum performance. Pro Tip: You’re a KICKER amplifier and a few cables away from a full system upgrade that will dominate any factory system! KICKER line of amplifiers make it easy to upgrade to solid bass with your existing or stock source unit. -
Page 5: Installation
Installation Wiring Configuration CompC-Series subwoofers are made with single and dual 4Ω voice coils. Voice coils must be connected to a source of amplification. The dual voice coil models will provide a 2Ω load wired in parallel or 8Ω load wired in series. Make sure your source unit or amplifier is rated at the correct ohm load for operation. - Page 6 Series Wiring Dual 4Ω Voice Coils = 8Ω Load Parallel Wiring Dual 4Ω Voice Coils = 2Ω Load English...
-
Page 7: Box Building Notes
Box Building Notes Use 3/4” (1.9cm) or thicker MDF (medium density fiberboard) and seal the joints with silicone. Use the “template” inside your CompC subwoofer’s shipping carton to mark the mounting hole, then cut directly on the line. These designs need internal bracing. - Page 8 Do not install a port opening against a solid surface, such as an internal brace, back- panel or trunk wall, seat or interior panel of your vehicle. The port opening must remain unobstructed. Use the smallest dimension of the rectangular port as the minimum amount of space between the port opening and any solid surface to insure unrestricted airflow.
- Page 9 CWC12, CWC15: D = 3” x 3” (8cm x 8cm) CWC8, CWC10: D = 2” x 2” (5cm x 5cm) For more advice on box building, refer to your Authorized Kicker Dealer, or click on the Support tab on the Kicker homepage, www.kicker.com. Please e-mail support@kicker.com or call Technical...
-
Page 10: Sealed Enclosures
Sealed Enclosures These sealed enclosure designs give the smoothest response with increased energy at the lowest frequencies, 20 to 30Hz. These designs deliver massive amounts of highly-accurate bass and can be driven with punishing levels of amplifier power. The CompC-Series high performance suspension system can operate in a larger sealed enclosure. - Page 11 Panel Dimensions for Minimum Sealed Enclosures using 3/4” (1.9cm) thick MDF: CWC8 CWC10 CWC12 CWC15 Volume ft3 [L] .5 [14.2] 1 [28.3] 1.25 [35.4] 2.25 [63.7] Panel A in. [cm] 11X11 [27.9X27.9] 13.5X13.5 [34.3X34.3] 14.5X14.5 [36.8X36.8] 17.25X17.25 [43.8X43.8] Panel B in. [cm] 11X9.5 [27.9X24.1] 13.5X12 [34.3X30.5] 14.5X13 [36.8X33]...
-
Page 12: Vented Enclosures
Vented Enclosures These boxes are the enclosure of choice if space is not a problem and you want to get the most output and low freqeuncy extension from your CompC subwoofer. CompC subwoofers will handle massive amounts of power in any of the recommended enclosures, minimum or maximum. -
Page 13: Warranty
Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction during the warranty period, KICKER will repair or replace (at its discretion) the defective merchandise with equivalent merchandise. Warranty replacements may have cosmetic scratches and blemishes.
