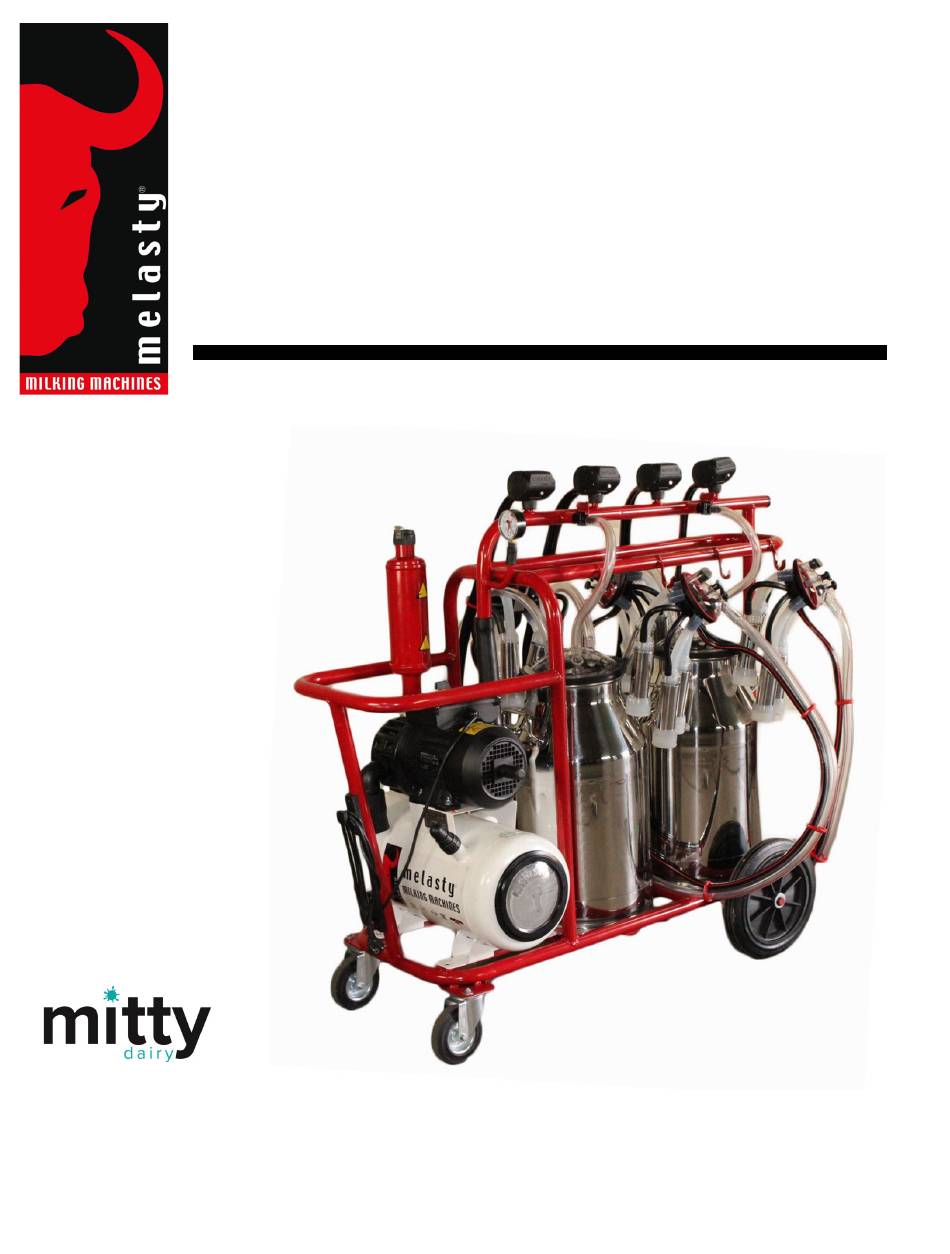

- Page 1 QUADRUPLE COW MILKING MACHINE TWIN BUCKET 40LT TK4-2PS OWNERS MANUAL 315 E Banks St Glennville, GA 30427 Tel: 912-339-0173...
-
Page 2: Package Contents
PACKAGE CONTENTS 1) 4 Pulsators 11) 1 Blind Plug 2) 2 40Lt Stainless Steel Buckets 12) 2 Milking Lids 3) 4 Cow Assemblies 240cc 13) 2 Lid Gaskets 4) 1 Muffler 14) Brush Set 5) 1 Motor Vacuum Pump 1.5 KW 6) 1 Air Tank 25L/Lid/Gasket/Drain Plug 7) 1 Vacuum Regulator 8) 4 Wheels... - Page 3 ASSEMBLY INSTRUCTIONS 1.– Take the machine out of the crate and remove all the bubble wrap 2.– Open the bucket lids and take out the 4 cow assemblies and the 4 pulsators. Take the first pulsator and put it on the machine inserting it on each metal nozzle on the top the vacuum distributor tube. Continue with the 3 pulsators left.
- Page 4 3.-Take the first cow assembly and start hanging one by one on the hooks located on the metal frame. 4.-Take the black twin pulsator hose and insert it on the 2 pulsator nozzles. Repeat with each cluster. If the hose is too narrow use a heat gun or hair dryer to warm up the hose and put Vaseline around the nozzles to insert it smoothly.
- Page 5 5.- From cow assembly No.1 take the clear milk hose and insert it on the No.1 milking lid nozzle No. 1...
- Page 6 6.-From the second cow assembly insert the clear milk hose on the second nozzle of the same milking lid. No. 2 7.-Repeat the same process with the other 2 cow assemblies that are hanging on the hooks. Take milk hose No.
- Page 7 8.-Take the air hose and butterfly air valve that is inside of one of the buckets and connect the air hose. 9.-Connect the air hose valve into the No. 1 hole that is located on the metal frame. 10.-Connect the air hose in to the 3rd nozzle of the milking lid...
- Page 8 11.-Repeat the same process and connect air hose No. 2 to the butter fly valve No. 2 to the second hole on the metal frame. 12.-At this time you should have already connected the 2 air hoses on both buckets...
- Page 9 13.-Insert the milk stopper under the nozzle where you connected the air hose. Repeat the same process on both buckets. 14.-Insert the vacuum gauge on the rubber mounting...
- Page 10 **WARNING!!! THIS MACHINE HAS A 220V MOTOR. IT HAS AN L6-15 TURN LOCK ELECTRICAL PLUG. A CERTIFIED ELECTRICIAN needs to inspect and/or install your wiring for a 220V circuit. This system will not work with a 110 volt circuit or plug.** Plug You are all set! Let’s start milking!
- Page 11 OPERATION OF THE MILKING MACHINE TK4-2PS 1. Adjust your vacuum regulator. Before turning on your machine, pull all of the black rubber plugs on the top of your milking clusters out. Pull out the black rubber plugs 2. Turn on the milking machine and start adjusting your vacuum regulator. Turn the middle knob on the regulator to the right to increase the pressure and to the left to decrease the pressure.
- Page 12 3. Remove the first milking claw from the machine, push in the butterfly plug that is situated on the top of the milking claw, and fold the four teat liners against the head of the milking claw. Having the silicone liners/inflations clamped keeps the pressure steady.
- Page 13 4. Bring the claw under the udder of the cow and position the first liner/inflation beneath one teat. Keep the other 3 liners clamped. This will allow vacuum to build in the milking claw. 5. Once you are directly under the teat with the liner, put the teat at the opening of the liner and unclamp it.
- Page 14 6. Proceed with cluster No. 2,3 and 4 following the same steps. HOW TO TURN OFF YOUR MACHINE AND FINISH WITH THE MILKING PROCESS Once the milk begins to slow down in each cow (you can see this in the clear cover of the claw) and is about to complete, pull the butterfly plug up at the top of the claw.
- Page 15 When ordering parts please refer to this page for the part numbers that you will need. 1) 3300 Cow Pulsator 6) 3611-2-5 Motor/Vacuum Pump 1.1Kw. 2) Cow Assembly: 7) 7071 Air Tank A) 7050 Milking Cluster 240cc 8) 3268 Air Tank Lid B) 3442 Milk Hose 9) 3270-1 Air Tank Gasket C) 3271 Pulsator Hose...
