Assembly Instructions

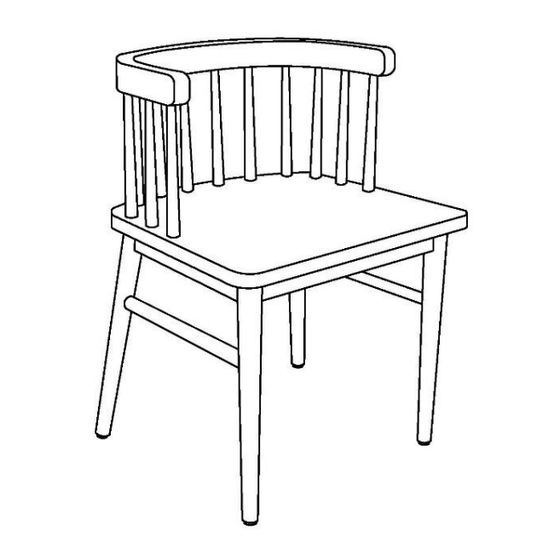

Maddsen Armchair (Black)
SKU 633787
Maddsen Armchair (Natural)
SKU 633788
Maddsen Armchair (White)
SKU 633789
Thank you for your purchase. If you have any questions pertaining to the assembly of this
furniture piece, please contact the nearest World Market store. If you are not near a store,
please call our customer service call center toll free at 877-967-5362 for assistance.
ALL PRODUCTS SOLD AT WORLD MARKET ARE NOT
FOR COMMERCIAL USE AND ARE INTENDED FOR
RESIDENTIAL USE ONLY.
2024.02.29
PAGE 1
Advertisement
Table of Contents
Related Manuals for World Market Maddsen 633787
Summary of Contents for World Market Maddsen 633787
- Page 1 Thank you for your purchase. If you have any questions pertaining to the assembly of this furniture piece, please contact the nearest World Market store. If you are not near a store, please call our customer service call center toll free at 877-967-5362 for assistance.
-
Page 2: Component List
Component List DESCRIPTION LABEL Chair Left Front Leg (STICKER FRONT LEG-L) Right Front Leg (STICKER FRONT LEG-R) Left Back Leg (STICKER BACK LEG-L) Right Back Leg (STICKER BACK LEG-R) Side Stretcher Page 2... -
Page 3: Hardware List
Hardware List DESCRIPTION LABEL Flat Washer 1.2mm.xD.8mm. Lock Washer 1.2mm.xD.8mm. M8xD.8mm. Long Wood Screw 38mm. Tool List LABEL DESCRIPTION Key Wrench Phillips Screwdriver ( not included) Page 3... -
Page 4: Assembly Preparation
Assemble on a clean non-marring surface (such as the product’s packing foam). Do not discard any packaging until the product has been fully assembled. In case of missing parts, please contact your nearest World Market store or call our customer service call center at 1-877-967-5362. -
Page 5: Assembly Steps
Assembly Steps Step 1 (H-1) Flat Washer x4 (H-2) Lock Washer x4 (H-3) Nut x4 (T-1) Key Wrench x1 STICKER FRONT LEG-L STICKER FRONT LEG-R Carefully place the Chair (A) upside down onto a padded, non-marring surface. Position the Left and Right Front Legs (B/C) with the bottom of the Chair (A) by inserting the hanger bolts through the through holes. - Page 6 Assembly Steps Step 3 (H-4) Long Wood Screw x4 (T-2) Phillips Screwdriver (not included) Carefully position each Side Stretcher (F) between the Front and Back Legs (B/C, D/E). Careful not to scratch the legs with the Side Stretchers (F). Align the pocket holes in the Side Stretchers (F) with the receiving holes. Engage all connection points by hand with the provided Long Wood Screws (H-4).
-
Page 7: Care And Maintenance
ARE & MAINTENANCE PAGE - DINING TABLES Warnings All products sold at World Market are not for commercial use and are intended for residential use only. Care & Maintenance DO NOT put hot items directly on furniture surface. DO NOT clean furniture with harsh cleansers or polish. - Page 8 Page 8...
