Skov DOL 9940-2 Technical User Manual

Feed weigher
Hide thumbs
Table of Contents

Advertisement

Quick Links

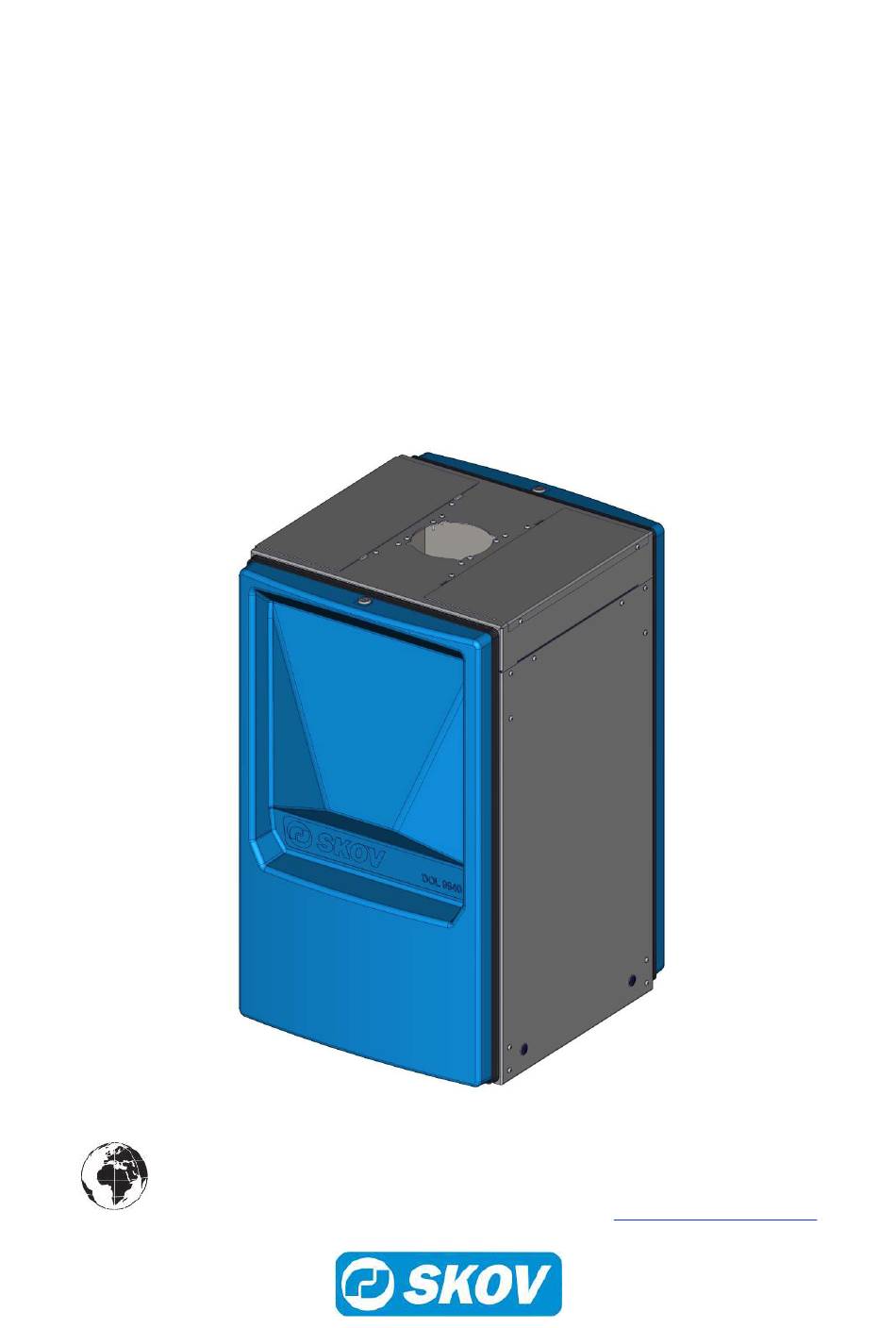

DOL 9940-2 Feed Weigher
Technical User Guide
English For other language variants of this document we refer to:
Español Para otras variantes del idioma de este documento, visite:
Français Pour les versions dans d'autres langues de ce document veuillez consulter:
http://docs.skov.com/1118
604467 • 2023-06-15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DOL 9940-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Skov DOL 9940-2

Summary of Contents for Skov DOL 9940-2

  • Page 1 DOL 9940-2 Feed Weigher Technical User Guide English For other language variants of this document we refer to: Español Para otras variantes del idioma de este documento, visite: Français Pour les versions dans d'autres langues de ce document veuillez consulter: http://docs.skov.com/1118...
  • Page 3 The date of change appears from the front and back pages. Note • All rights belong to SKOV A/S. No part of this manual may be reproduced in any manner whatsoever without the expressed written permission of SKOV A/S in each case.

  • Page 4: Table Of Contents

    Letter code .......................... 16 4.2.5 Positioning of feed demand sensor....................  17 4.2.6 Cable plan.......................... 17 4.2.6.1 DOL 9940-2 without distribution shutter .................. 17 4.2.6.2 DOL 9940-2 with distribution shutter .................. 17 4.2.7 Circuit diagrams .........................  18 4.2.7.1 DOL 9940-2 - stand alone ...................... 18 4.2.7.2...
  • Page 5 DOL 9940-2 Feed Weigher 8.1.2 Distribution shutter ........................ 33 8.1.3 Inlet funnel for 3 components.....................  33 8.1.4 Inlet funnel for 5 components.....................  34 Technical User Guide...

  • Page 6: Product Description

    1 Product description DOL 9940-2 is a feed weigher with a portion size of 40 kg, which is used for precise weighing of the feed con- sumption in livestock houses. It consists of a dust and splash proof cabinet with feed supply at the top and feed discharge at the bottom.

  • Page 7: Product Survey

    DOL 9940-2 Feed Weigher 2 Product survey 2.1 DOL 9940-2 130329 DOL 9940-2 feed weigher with distribution shutter Feed weigher with build in motorized shutter which distributes the feed be- tween two feeding systems. 130339 DOL 9940-2 feed weigher Feed weigher for accurate weighing of feed consumption in houses...

  • Page 8: Mounting Guide

    DOL 9940-2 Feed Weigher 3 Mounting guide Check that the parts ordered are present and undamaged before starting work. Please read through the entire guide before starting assembly and fitting. Please note that the weighing hopper and the load cells must be moved to the service position be- fore the feed weigher is used.
  • Page 9 DOL 9940-2 Feed Weigher Item Description Multigrip pliers Spirit level Ladder Technical User Guide...

  • Page 10: Mounting Example

    A distribution shutter (extra accessory) may be installed on the bottom flange of the feed funnel on the feed weigher or on the hopper below the feed weigher. (A) Feed augers (B) Inlet funnel (C) DOL 9940-2 feed weigher with build in distribution shutter (D) Distribution shutter (E) Angle bracket...

  • Page 11: Front Panel And Inspection Panel

    DOL 9940-2 Feed Weigher 3.3 Front panel and inspection panel Dismount panels and inspections panels for access to mechanical mounting, cleaning and maintenance of the feed weigher. Turn the lock a quarter turn counterclockwise. Dismount the panel by lifting it slightly upwards.

  • Page 12: Transport And Service Position

    DOL 9940-2 Feed Weigher 3.5 Transport and service position Dismount the front panel to access the transport lock and load cells, see section Front panel and inspection panel [} 11]. Dismount the 4 M6x16 TX30 screws. Mount the 4 dismounted M6x16 TX30 screws, 2 in each load cell.

  • Page 13: Feed Discharge

    DOL 9940-2 Feed Weigher 3.7 Feed discharge Feed discharge is located in the middle below the bottom of the feed weigher. Delivering of feed to 1 feeding system. Mount the hopper directly under the feed weigher. Delivering of feed to 2 feeding systems. Mount 1 distribu- tion shutter (extra accessory) that can direct the feed to feeding system 1 or feeding system 2.

  • Page 14: Installation Guide

    DOL 9940-2 Feed Weigher 4 Installation guide 4.1 Electrical connection Installation, servicing and troubleshooting of all electrical equipment must be carried out by quali- fied personnel in compliance with the applicable national and international standard EN 60204-1 and any other EU standards that are applicable in Europe.

  • Page 15: Connection In Connection Box

    DOL 9940-2 Feed Weigher 4.1.2 Connection in connection box + 24 V DC supply from terminal A6 in the con- troller. Weighing signal 1-10 V to the controller. Reference signal 9,6 V to the controller. 0 V supply from terminal A5 in the controller.

  • Page 16: Cable Plans And Circuit Diagrams

    DOL 9940-2 Feed Weigher 4.2 Cable plans and circuit diagrams 4.2.1 General information about circuit diagrams Symbols are in accordance with the IEC/EN 60617 standard. The classification of the symbols ("letter codes") on the symbols is in accordance with the IEC/EN 81346-2 stan- dard.

  • Page 17: Positioning Of Feed Demand Sensor

    Allow space for a sufficient amount of feed below the sensor, so that the hopper does not empty too quickly. 4.2.6 Cable plan 4.2.6.1 DOL 9940-2 without distribution shutter DOL 9940-2 Controller Feed demand sensor 4.2.6.2 DOL 9940-2 with distribution shutter...

  • Page 18: Circuit Diagrams

    DOL 9940-2 Feed Weigher 4.2.7 Circuit diagrams 4.2.7.1 DOL 9940-2 - stand alone Example of terminal number For correct connection see the setup menu Show connection in controller Weight Technical User Guide...

  • Page 19: Dol 9940-2 - Shared

    DOL 9940-2 Feed Weigher 4.2.7.2 DOL 9940-2 - shared Weight Reference Emptying relay Position Shutter relay Technical User Guide...

  • Page 20: Motor On Distribution Shutter

    DOL 9940-2 Feed Weigher 4.2.7.3 Motor on distribution shutter Jumper on the winch motor. Winch motor Normal Winch motor Reverse ON/OFF ON/OFF REVERSE Feed weigher Feed weigher House 1 House 2 House 2 House 1 Normal Reverse Example of terminal...

  • Page 21: Setup Of The House Controller

    See the section Installation guide in the Technical manual of the house controller. 4.4 Calibration The weighing system of the DOL 9940-2 is calibrated by means of the calibration program in the house con- troller. The calibration procedure is described in the Technical Manual for the house computer.

  • Page 22: Maintenance Instructions

    DOL 9940-2 Feed Weigher 5 Maintenance instructions It is recommended that feed weigher is cleaned by means of compressed air at each batch change. Under no circumstances should a high pressure cleaner be used for internal cleaning of the feed weigher, as this could damage the load cells, the magnet coil and the load amplifier.

  • Page 23: Tool For Manual Opening

    DOL 9940-2 Feed Weigher 5.2 Tool for manual opening The manual opening tool (supplied) is used to keep both panels of the weighing hopper open for cleaning and service. Open one panel. Mount the tool for manual opening on the bushing for toggle joint.

  • Page 24: Adjustment

    DOL 9940-2 Feed Weigher 6 Adjustment 6.1 Open/close function Adjust the adjustment screw (A) until the tog- gle joints rest against the rubber suspension (B). Technical User Guide...

  • Page 25: Distribution Shutter - 2 Feeding Systems

    DOL 9940-2 Feed Weigher 6.2 Distribution shutter - 2 feeding systems Adjust the distribution shutter as follows: Loosen the two nuts on the shaft between the winch motor and the distribution shutter. Follow the instructions under Testing in the Technical Manual for the house controller.

  • Page 26: Troubleshooting/Testing

    DOL 9940-2 Feed Weigher 7 Troubleshooting/testing 7.1 Signal levels of the feed weigher A feed weigher can be shared between 2 house controllers. One house controller is to be set up as controlling. This means that this house controller controls the distribution shutter of the weigher (and silos). For this pur- pose, it uses a relay.

  • Page 27: Feed Weigher Sharing Signal

    DOL 9940-2 Feed Weigher 7.1.1 Feed weigher sharing signal Check that the feed weigher sharing signals are connected cor- rectly. The signals are checked in the menu of the house controller | Technical | Manual/auto | Production | Feed weigher.

  • Page 28: Load Cells

    DOL 9940-2 Feed Weigher 7.2 Load cells Test load cells if the feed weigher discharges too much or too little feed in relation to the required amount. This test presupposes that the load amplifier is in proper working order. The load cells can be tested in the following order: Checking load cell by altering load: 1.

  • Page 29: Load Amplifier

    DOL 9940-2 Feed Weigher 7.3 Load amplifier Test the load amplifier if the feed weigher discharges too much or too little feed in relation to the required amount. Measure all voltages in relation to 0 V terminal U9 (-) in the following order: Supply voltage: 1.

  • Page 30: Magnet Coil (Solenoid)

    DOL 9940-2 Feed Weigher 7.4 Magnet coil (solenoid) Should be tested if emptying cannot be activated. Test the magnet coil (solenoid) as follows: 1. Activate the magnet coil (solenoid) manually. 2. Check 24 V DC supply voltage in the connection box on terminal U13 (+) and U14 (-), subsequently the volt- age in the house controller.

  • Page 31: Technical Data

    DOL 9940-2 Feed Weigher 8 Technical data DOL 9940-2 DOL 9940-2 w/distribution shutter Electrical Load amplifier V DC 20 - 30 Operating voltage 80 - 100 Max. power consumption V DC 9.5 – 9.7 Reference output V DC 1.0 – 6.2...

  • Page 32: Dimensioned Sketch

    DOL 9940-2 Feed Weigher 8.1 Dimensioned sketch All dimensions are in mm. 8.1.1 Feed weigher ø8,5 ø160 12xM5 Technical User Guide...
  • Page 33 DOL 9940-2 Feed Weigher 8.1.2 Distribution shutter 8.1.3 Inlet funnel for 3 components Technical User Guide...
  • Page 34 DOL 9940-2 Feed Weigher 8.1.4 Inlet funnel for 5 components Technical User Guide...
  • Page 36 SKOV A/S • Hedelund 4 • Glyngøre • DK-7870 Roslev Tel. +45 72 17 55 55 • www.skov.com • E-mail: skov@skov.dk...
