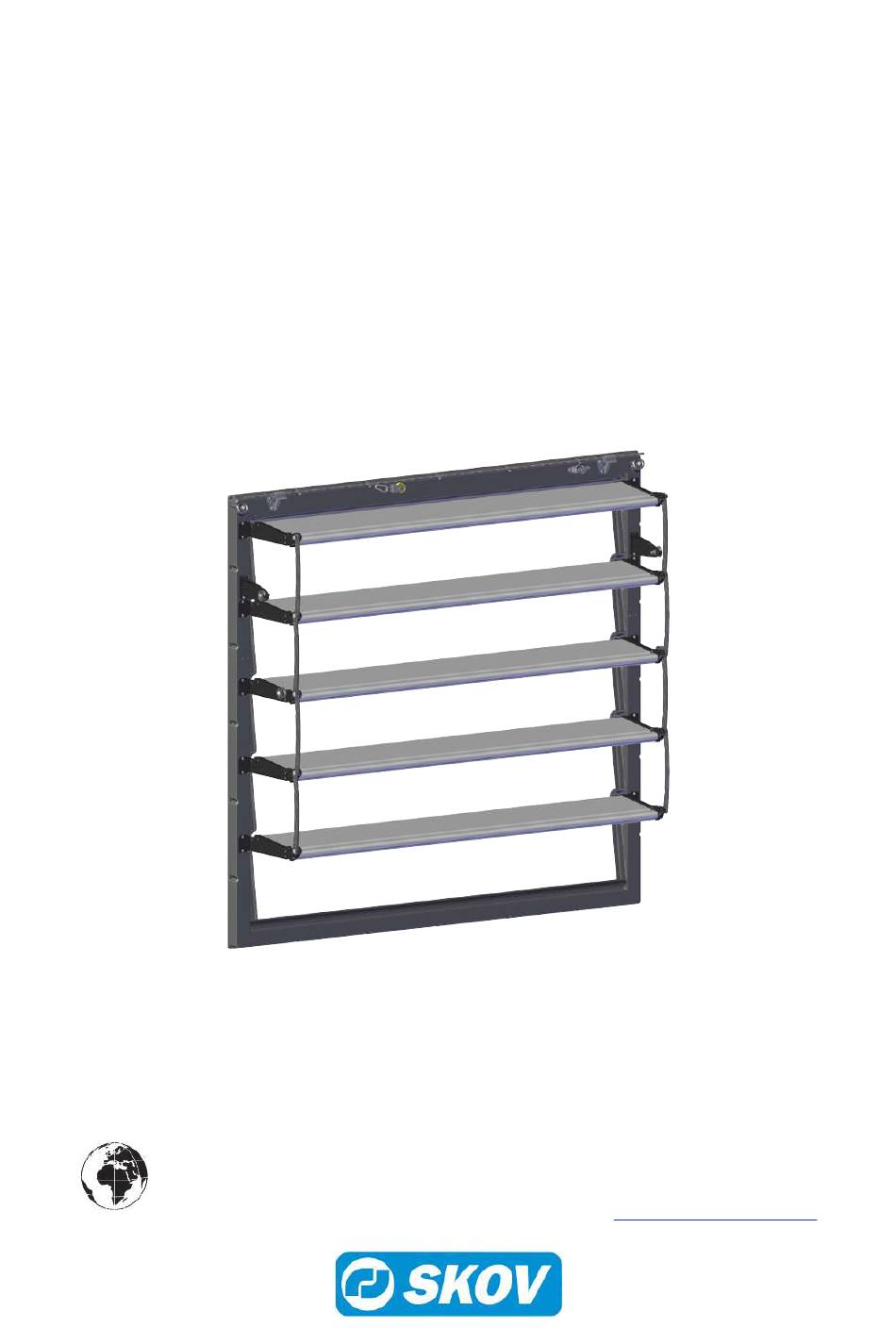

DA 17K Tunnel Inlet
Outside
Mounting Guide
English For other language variants of this document we refer to:
Español Para otras variantes del idioma de este documento, visite:
Français Pour les versions dans d'autres langues de ce document veuillez consulter:
http://docs.skov.com/1040
604366 • 2022-02-03
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Skov DA 17K
Summary of Contents for Skov DA 17K
- Page 1 DA 17K Tunnel Inlet Outside Mounting Guide English For other language variants of this document we refer to: Español Para otras variantes del idioma de este documento, visite: Français Pour les versions dans d'autres langues de ce document veuillez consulter: http://docs.skov.com/1040...
- Page 2 The date of change appears from the front and back pages. Note • All rights belong to SKOV A/S. No part of this manual may be reproduced in any manner whatsoever without the expressed written permission of SKOV A/S in each case.
-
Page 3: Table Of Contents
DA 17K Tunnel Inlet 1 Product description............................ 4 2 Product survey ............................... 5 3 Mounting guide............................... 7 Recommended tools........................ 7 Wall inlet positioning......................... 8 Mounting of tunnel inlet ...................... 8 3.3.1 Preparing hole in wall........................ 8 3.3.2 Mounting in wall ........................... 9 3.3.3 Check the tightness ........................ -
Page 4: Product Description
DA 17K Tunnel Inlet 1 Product description The DA 17K Tunnel Inlet, outside is used as an air inlet in houses with Tunnel Ventilation or Combi-Tunnel Ven- tilation. The tunnel inlet can be mounted directly on walls or sandwich panels. -
Page 5: Product Survey
2 Product survey 433716 DA 17K tunnel inlet, highly ins. outside DA 17K tunnel inlet, outside is highly insulated and used for external as- sembly on the wall. When you mount the tunnel inlet on the outside the inlet does not take up space inside the livestock house. - Page 6 DA 17K Tunnel Inlet 433720 DA 17K insulation plate The plate is used to minimize draft and heat loss during cold periods, when the tunnel inlet is not in use. The plate should always be used if the dimensioned outside temperature is less than -10°C.
-
Page 7: Mounting Guide
DA 17K Tunnel Inlet 3 Mounting guide Check that the parts ordered are present and undamaged before starting work. Please read through the entire guide before starting assembly and mounting. 3.1 Recommended tools A list of tools recommended for the installation of the tunnel inlet can be seen below. -
Page 8: Wall Inlet Positioning
The positioning of the inlet in a wall depends on the layout of the building and house. The positioning may there- fore only be made according to directions communicated by or representatives of SKOV A/S. 3.3 Mounting of tunnel inlet 3.3.1 Preparing hole in wall... -
Page 9: Mounting In Wall
DA 17K Tunnel Inlet Make a diagonal measurement. Cut the holes. 3.3.2 Mounting in wall Ensure that the inlet is placed in the middle of the hole. Center the inlet in the hole with wedges. Avoid pressing the inlet into place when mounting. -
Page 10: Check The Tightness
DA 17K Tunnel Inlet Pre-drill the holes according to the instructions be- Use a spirit level to ensure that the inlet has a correct position. Screw all 24 screws into the pre-drilled holes and mount the inlet on the wall. - Page 11 DA 17K Tunnel Inlet If there is a gap, use wedges to straighten the frame. If necessary, use wedges from stacking blocks. Break off the wedge. Loosen the screws and insert wedges behind the inlet frame until all flaps close tightly.
- Page 12 DA 17K Tunnel Inlet Check that there are no gaps on both sides of all five in- let flaps. If only one flap has gaps, it may be because the flap is twisted. The flap is corrected by twisting the flap in the opposite direction.
-
Page 13: Foaming
DA 17K Tunnel Inlet 3.3.4 Foaming The excess part of the wedges should be removed before foaming. Wet the faces with water from a mist sprayer before proceeding with the foaming. 1 component Polyurethane foam is used for foaming. A. Foam the entire depth of the inlet in the corners and approx. 100 mm to each side of the corners. -
Page 14: Mounting Of Tunnel Inlet Parts
DA 17K Tunnel Inlet 3.4 Mounting of tunnel inlet parts Pulley on pull rod [} 17] Brackets for single pull [} 15] Brackets for pull rod [} 16] Wheel set [} 15] String [} 18] Mounting Guide... -
Page 15: Wheel Set
DA 17K Tunnel Inlet 3.4.1 Wheel set Mount the wheel set on both sides. 3.4.2 Brackets for single pull Drill three 3 mm holes. Mount the bracket for the single pull opposite the pulling direction. Mounting Guide... -
Page 16: Brackets For Pull Rod
DA 17K Tunnel Inlet 3.4.3 Brackets for pull rod Drill four 3 mm holes. Mount the brackets for the pull rod on both sides. 3.4.4 Pull rod Turn the top part of the bracket for the pull rod to sepa- rate the two parts. -
Page 17: Pulley On Pull Rod
DA 17K Tunnel Inlet 3.4.5 Pulley on pull rod Mount the wire lock with snap hook and pulley on the pull rod. 3.4.6 Coil spring Mount the coil spring on the opposite end of the pull drive. See documentation for mounting set. -
Page 18: String
DA 17K Tunnel Inlet 3.4.7 String 1) Mount the wire lock on the string. 2) Pull the string as shown below, mount the wire lock. 3) Tighten the string by pulling the wire lock on the pull rod against the pulling direction. -
Page 19: Mounting Of Bird Net
DA 17K Tunnel Inlet 3.5 Mounting of bird net Braid the rods into the net. Note that an excess of net is supplied. Mount the tubes as corners. Mount three clips on each rod. Mount the net on the inlet frame. -
Page 20: Mounting Examples
DA 17K Tunnel Inlet 3.6 Mounting examples See also documentation for DA 175 mounting set. The inlets can be mounted directly onto exterior walls. The arrows show the direction of the air jet. Mounting Guide... -
Page 21: Maintenance
DA 17K Tunnel Inlet 4 Maintenance The product may be cleaned by a high-pressure cleaner without using: • solvents • corrosive/caustic agents 4.1 Recycling/Disposal Products suitable for recycling are marked with a pictogram. It must be possible for customers to deliver the products to local collection sites/recycling stations in accordance with local instructions. -
Page 22: Technical Data
DA 17K Tunnel Inlet 5 Technical Data Mechanical Material Stainless steel Spring RAL 7024 (gray) Color - inlet frame RAL 9010 (white) Color - inlet flaps 1390 x 25 with 17 x 17 net Net size Tensile force 0 Pa... -
Page 23: Dimension Drawing For Tunnel Inlet
DA 17K Tunnel Inlet 5.1 Dimension drawing for tunnel inlet Measurements in mm Hole dimensions for tunnel inlet. Dimensions for tunnel inlet. Mounting Guide... - Page 24 DA 17K Tunnel Inlet Dimensions for tunnel inlet mounted on wall. Mounting Guide...
- Page 28 SKOV A/S • Hedelund 4 • Glyngøre • DK-7870 Roslev Tel. +45 72 17 55 55 • www.skov.com • E-mail: skov@skov.dk...
