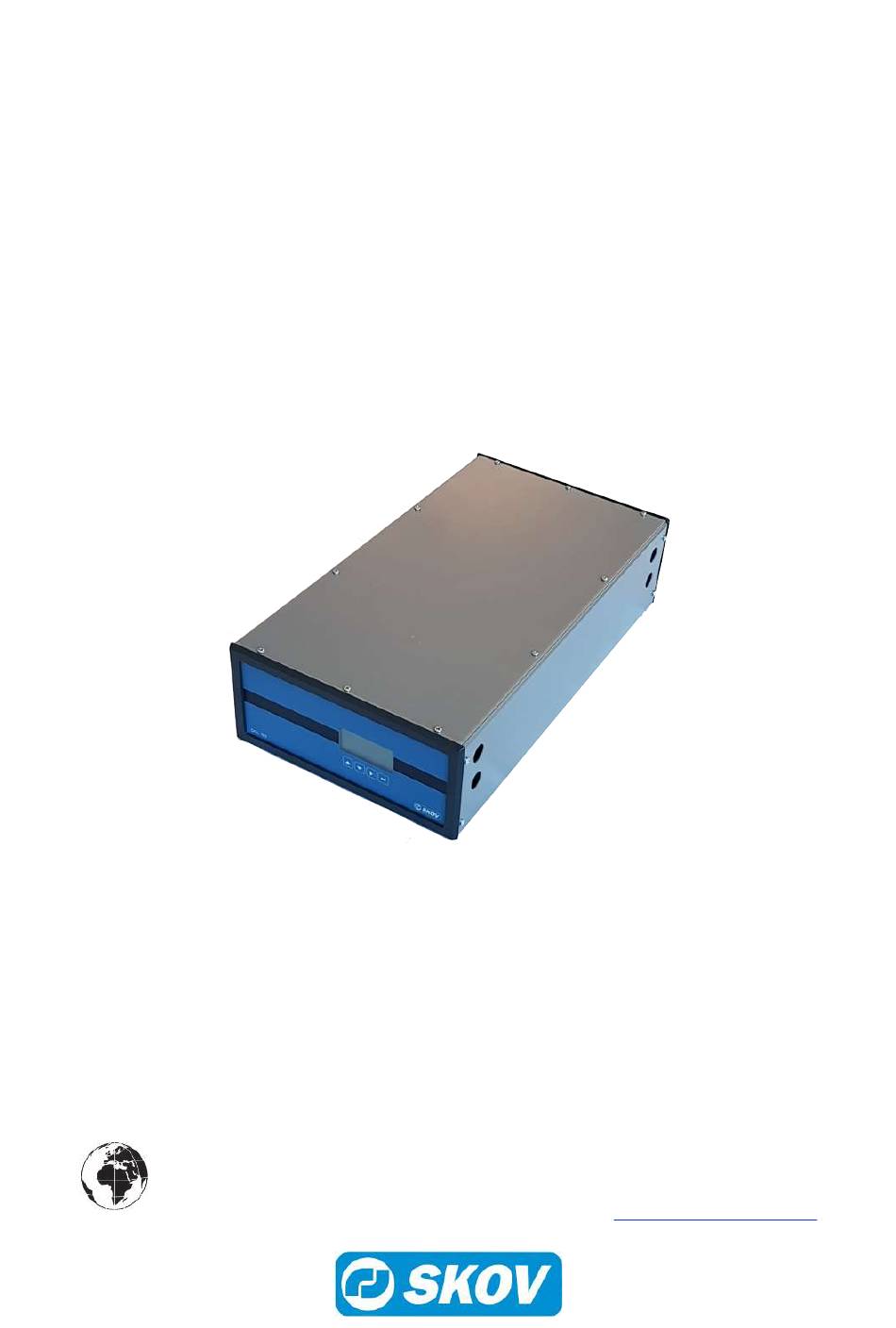

DOL 192 30-75 Egg Counter
Technical User Guide
English For other language variants of this document we refer to:
Español Para otras variantes del idioma de este documento, visite:
Français Pour les versions dans d'autres langues de ce document veuillez consulter:
http://docs.skov.com/1091
604315 • 2018-06-18
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Skov DOL 192 30
Summary of Contents for Skov DOL 192 30
- Page 1 DOL 192 30-75 Egg Counter Technical User Guide English For other language variants of this document we refer to: Español Para otras variantes del idioma de este documento, visite: Français Pour les versions dans d'autres langues de ce document veuillez consulter: http://docs.skov.com/1091...
- Page 2 Should any mistakes or imprecise information occur in spite of this, SKOV A/S would appreciate being notified thereof. • Irrespective of the above, SKOV A/S shall not accept any liability with regard to loss or damage caused or alleged to be caused by reliance on any information contained herein.
-
Page 3: Table Of Contents
Main module and scan modules .................... 14 Circuit Diagram .......................... 15 Display ............................ 16 5 Maintenance Instructions .......................... 17 Cleaning............................. 17 Recycling/Disposal........................ 17 6 Troubleshooting Instructions........................ 18 Error messages.......................... 18 Unexpected counting results...................... 18 7 Technical data............................... 19 DOL 192 30 - 75 cm........................ 19 Technical User Guide... -
Page 4: Product Description
• DOL 192 20 cm scan width 120 – 200 mm, 24 V DC is suitable for counting eggs on longitudinal conveyor belts. • DOL 192 30/40/50/60/75 cm scan width 223 – 760 mm, 230 V DC are suitable for counting eggs on con- veyor belts that collect eggs from more than one longitudinal conveyor belt. -
Page 5: Product Survey
The DOL 192 30 cm to 75 cm Egg Counter must be powered using 230 V The DOL 192 30 cm to 75 cm is supplied with a display, where the number of eggs can be read locally. -
Page 6: Mounting Guide
DOL 192 30-75 Egg Counter 3 Mounting guide 3.1 Recommended Tools A list of tools recommended for the installation of your egg counter can be seen below. Topic Description Cordless drill Screwdriver bits Drill kit Utility knife Multimeter Tape measure... -
Page 7: Mounting Of Brackets
DOL 192 30-75 Egg Counter 3.2 Mounting of brackets 3.2.1 DOL 192 30-75 Mount the bracket on the bottom of the egg counter using 8 M4x12 screws and 8 19.5 mm washers. Technical User Guide... -
Page 8: Mounting On Conveyor Belt
(sun) light, or ensure that it is protected from sources of light. In the event of too much light, the red LED will turn on. (DOL 192 12-20) In the event of too much light, warning # 4 (DOL 192 30-75) will appear on the display. 3.3.1 DOL 192 30-75 Flat conveyor belt Mount the bracket so that there is approx. -
Page 9: Adjusting The Scan Width
DOL 192 30-75 Egg Counter 3.3.1.1 Adjusting the scan width Front If the scan width of DOL 192 30-75 cm is wider than the width of the conveyor belt, some of the infra-red sensors should be turned off. Set the dipswitch on scan module X (slave), see table be- low. -
Page 10: Installation Guide
DOL 192 30-75 Egg Counter 4 Installation Guide When the power supply to the egg counter is turned on, the egg counter runs a self-test for 2 seconds. It is sub- sequently ready to count eggs. The number of eggs counted per day will appear on the display. The number of eggs counted per day will increase by one each time an egg is counted. -
Page 11: Electrical Connection
DOL 192 30-75 Egg Counter 4.2 Electrical connection Qualified personnel in accordance with the applicable national and international standard EN 60204-1 and any other EU standards that are applicable in Europe must perform installation, ser- vicing and troubleshooting of all electrical equipment. -
Page 12: Cable Plan
DOL 192 30-75 Egg Counter 4.4 Cable Plan Use low voltage cables for electrical connection of egg counters (max. length of 100 m from controller to egg counter). The length of the signal cables should be limited as much as possible. -
Page 13: Connection In The Egg Counter
DOL 192 30-75 Egg Counter 4.5 Connection in the egg counter The switch is closed in standby mode = conveyor belt OFF 4.5.1 Main module Technical User Guide... -
Page 14: Main Module And Scan Modules
DOL 192 30-75 Egg Counter 4.5.2 Main module and scan modules Technical User Guide... -
Page 15: Circuit Diagram
DOL 192 30-75 Egg Counter 4.6 Circuit Diagram Example of terminal number For correct connection see the setup menu Show Installation on controller NOTE! Only if Pull up is displayed in ‘Show connections’ 10 KΩ Standby switch ON when conveyor belt is running... -
Page 16: Display
DOL 192 30-75 Egg Counter 4.7 Display The number of eggs counted today, yesterday and up to and including day -7 can be read in the display. You can find the correct setting by using . The time appears in the display. The data will be moved by one day at the end of the day. -
Page 17: Maintenance Instructions
DOL 192 30-75 Egg Counter 5 Maintenance Instructions 5.1 Cleaning The egg counter is maintenance-free but should be kept free of litter and dirt. Clean the product with a cloth that has been wrung out almost dry in water and avoid using: •... -
Page 18: Troubleshooting Instructions
DOL 192 30-75 Egg Counter 6 Troubleshooting Instructions 6.1 Error messages The egg counter will check counting operations. The following error messages may occur: Alarm Description Type of Cause alarm Communication error Alarm No connection to scan module number x. -
Page 19: Technical Data
DOL 192 30-75 Egg Counter 7 Technical data 7.1 DOL 192 30 - 75 cm DOL 192 30 DOL 192 40 DOL 192 50 DOL 192 60 DOL 192 75 Electrical V AC Rated voltage V AC 207 - 253... - Page 20 SKOV A/S • Hedelund 4 • Glyngøre • DK-7870 Roslev Tel. +45 72 17 55 55 • www.skov.com • E-mail: skov@skov.dk...
