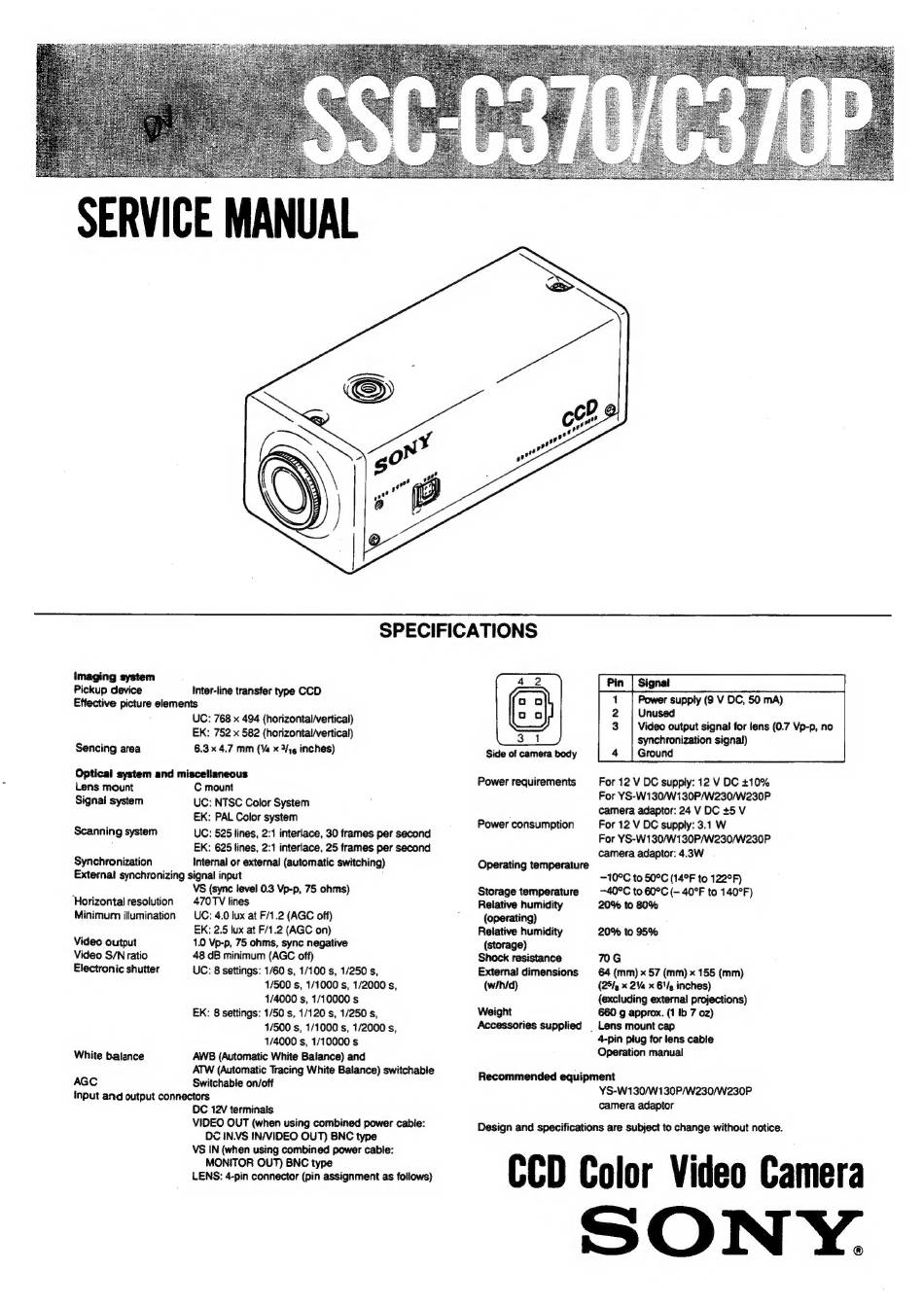

Sony SSC-C370 Service Manual

Imaging system
Pickup device
SPECIFICATIONS
Inter-line transfer type CCD
Effective picture elements
Sencing area
UC: 768 x 494 (horizontal/vertical)
EK: 782 x 582 (horizontai/vertical)
6.3 x 4.7 mm (¥% x 3/4, inches)
Optical system and miscellaneous
Lens mount
Signal system
Scanning system
Synchronization
C mount
UC: NTSC Color System
EK: PAL Color system
UC: 525 lines, 2:1 interlace, 30 frames per second
EK: 625 lines, 2:1 interlace, 25 frames per second
Internal or external (automatic switching)
External synchronizing signal input
'Horizontal resolution
Minimum illumination
Video output
Video S/N ratio
Electronic shutter
White balance
AGC
VS (sync level 0.3 Vp-p, 75 ohms)
470TV lines
UC: 4.0 lux at F/1.2 (AGC off)
EK: 2.5 lux at F/1.2 (AGC on)
1.0 Vp-p, 75 ohms, sync negative
48 dB minimum (AGC off)
UC: 8 settings: 1/60 s, 1/100 s, 1/250 s,
1/500 s, 1/1000 s, 1/2000 s,
1/4000 s, 1/10000 s
EK: 8 settings: 1/50 s, 1/120 s, 1/250 s,
1/500 s, 1/1000 s, 1/2000 s,
1/4000 s, 1/10000 s
AWB (Automatic White Balance) and
ATW (Automatic Tracing White Balance) switchable
Switchable on/off
input and output connectors
OC 12V terminals
VIDEO OUT (when using combined power cable:
OT INVS IN/VIDEO OUT) BNC type
VS IN (when using combined power cable:
MONITOR OUT) BNC type
LENS: 4-pin connector (pin assignment as follows)
4 2
Power supply (9 V DC, 50 mA)
poe Unused
Video output signal for lens (0.7 Vp-p, no
3.1 synchronization signal)
Side of camera body Ground
Power requirements For 12 V DC supply: 12 V DC +10%
For YS-W130/W130P/W230/W230P
camera adaptor: 24 V DC +5 V
Power consumption For 12 V DC supply: 3.1 W
For YS-W130/W130P/W230/W230P
camera adaptor: 4.3W
Operating temperature
—10°C to 50°C (14°F to 122°F)
Storage temperature —40°C to 60°C (- 40°F to 140°F)
Relative humidity 20% to 80%
(operating)
Relative humidity 20% to 95%
(storage)
Shock resistance 70G
External dimensions 64 (mm) x 57 (mm) x 155 (mm)
(wih/d) (25/g x 2V4 x 61/, inches)
(excluding external projections)
Weight 660 g approx. (1 Ib 7 oz)
Accessories supplied | Lens mount cap
4-pin plug for lens cable
Operation manual
Recommended equipment
YS-W130/W130P/W230/W230P
camera adaptor
Design and specifications are subject to change without notice.
CCD Color Video Camera
SONY.
