Neptune X-PRO Installation Manual And User's Manual
Heat pump controller
Hide thumbs
Also See for X-PRO:
- Installation manual and user's manual (38 pages) ,
- Installation manual and user's manual (28 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Neptune X-PRO
Summary of Contents for Neptune X-PRO

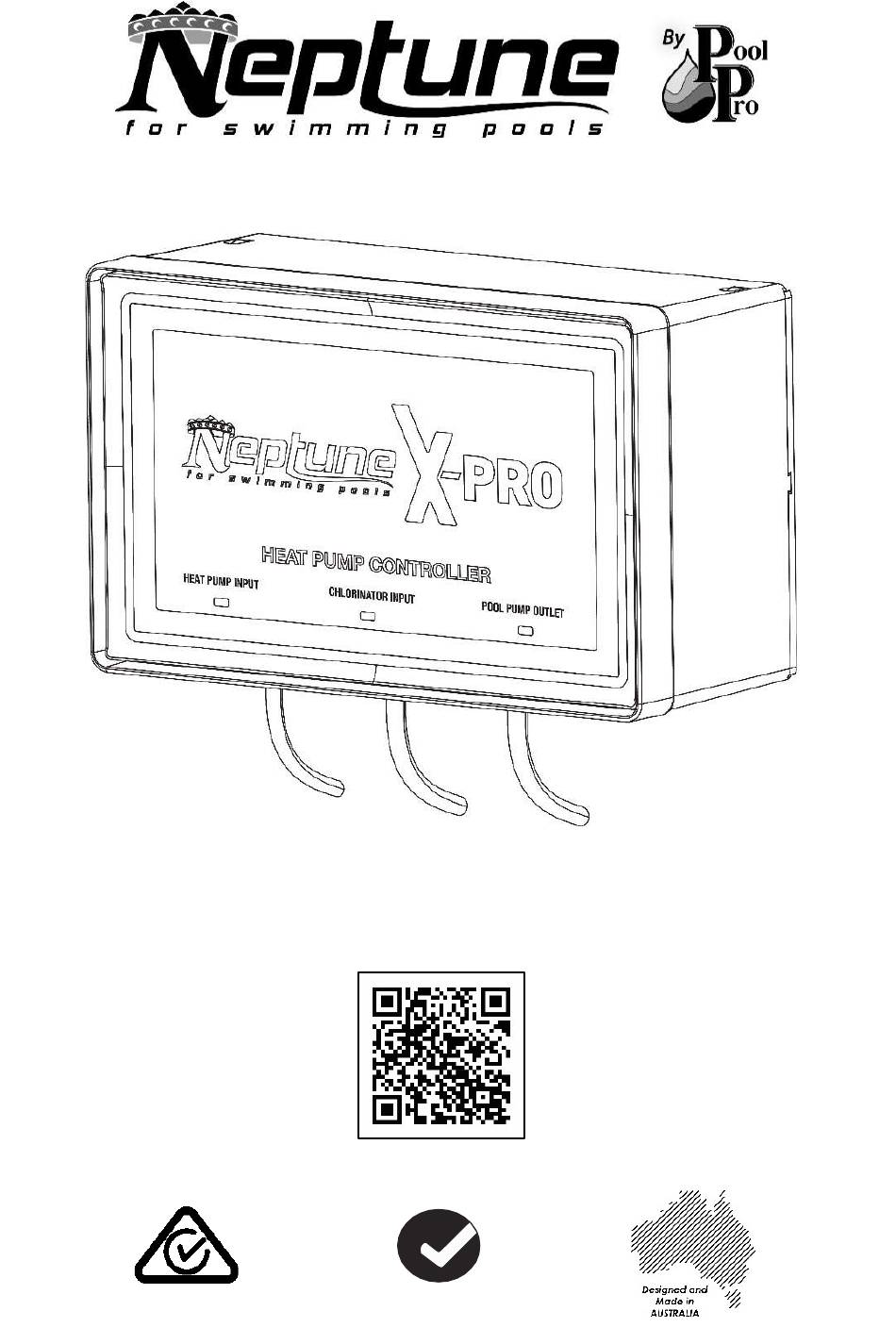

- Page 1 NEPTUNE X-PRO HEAT PUMP CONTROLLER INSTALLATION GUIDE AND USER MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY ..................3 GENERAL OVERVIEW .............. 3 - 4 SPECIFICATIONS................4 MAINTENANCE ................4 HELPFUL HINTS ................4 CONTENTS ................... 4 TOOLS NEEDED ................5 INSTALLING THE HEAT PUMP CONTROLLER ......5 - 7 OPERATION OF THE HEAT PUMP CONTROLLER ......7 10. -
Page 3: Safety
The product shall be installed by a qualified person in according to AS/NZS 3000 wiring rules. The Neptune X-Pro Heat Pump Controller should be installed in the correct pool zone and connected to supply via a power outlet that is protected by a residual current device (RCD) having a rated residual operating current not exceeding 30mA. -
Page 4: Specifications
Neptune X-Pro Heat Pump Controller is a heat pump and chlorinator interface that enables smart pump switching with an isolated circuit between chlorinator and heat pump inputs, saving you money on your swimming pool running costs. -
Page 5: Tools Needed
TOOLS NEEDED INSTALLING THE HEAT PUMP CONTROLLER Pool Filter Heat Pump Pool Pump Chlorinator Cell Housing Heat Pump Controller STEP 1: Remove the contents from the box and carefully plan all steps using the installation diagram and by reviewing the steps below. - Page 6 Heat Pump. This is a signal from the heat pump to turn the pool pump When connecting specifically to a Neptune X-Pro Heat Pump, the potential free dry contact is the P1 and P2 terminals, located in the Electrical Box of the heat pump. For full installation instructions, refer to the Neptune Heat Pump User Manual.
-
Page 7: Operation Of The Heat Pump Controller
Chlorinator Input Cord: Fit this plug to the AC Socket outlet on the Chlorinator. Controller Power Cord: Connect the Controller’s power cord to a wall power socket. Don’t forget to also plug your Chlorinator into a wall power socket. ... -
Page 8: 11. Part Numbers
Base Body NHXN00306 Wall Bracket NHXN01364 Power Cord – Heat Pump Controller c/w Piggyback Socket NHXN01379 Front Sticker – Neptune Heat Pump Controller NHXN01400 Case Front Cover NHXN01401 PCB – Heat Pump Controller 12. WARRANTY This product is warranted for (24) twenty-four months against defects in workmanship and materials if used for its intended purpose and maintained according to instructions.
