Page 1

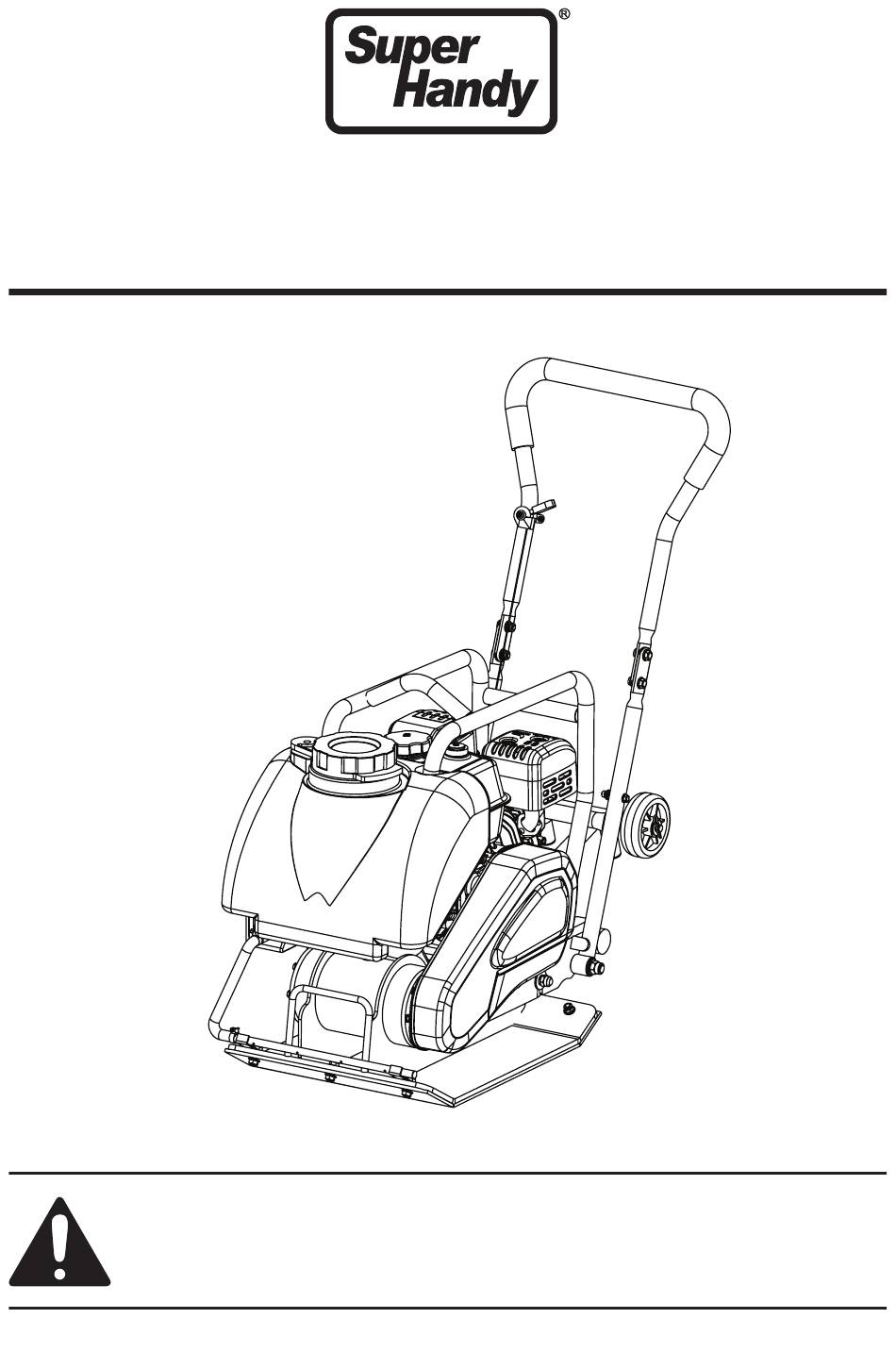

Plate Compactor Operator's Manual WARNING: Carefully review and understand all INSTRUCTIONS prior to operating this device. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Keep these instructions in a safe place and accessible so that they can be reviewed as required. Keep these instructions to assist in future servicing needs.
Page 2
WARNING Understand Your Machine 1. Read and understand the operator's manual and labels affixed to the machine. Learn its proper usage and capabilities as well as the specific potential hazards unique to this product. 2. Be thoroughly familiar with the controls and their proper operation. Know how to stop the machine and disengage the controls quickly before operating the product.
Page 3
3. Keep grounded conductive objects, such as tools, away from exposed, live electrical parts and connections to avoid sparking or arcing. These events could ignite fumes or vapors. 4. Always stop the engine and allow it to cool before filling the fuel tank. Never remove the cap of the fuel tank or add fuel while the engine is running or when the engine is hot.
Specific Safety Rules 1. To avoid injury, keep hands, fingers and feet away from the base plate. Grip the handle of the plate compactor firmly with both hands while operating. 2. Always operate the machine from behind, never pass or stand in front of the machine when the engine is running.
TECHNICAL SPECIFICATIONS Item No. GUO090 Plate Size 20"×15" Centrifugal Force 4200lbf Exciter Speed 5500vpm Compaction Depth 12" Travel Speed 115FT/min Operation Weight 135lb MAIN COMPONENTS Throttle Control Operation Handle Bracket Muffler Air Cleaner Fuel Tank Water Tank Belt Guard Water Pipe...
Page 6
ASSEMBLY Contents Supplied The plate compactor comes partially assembled and is shipped in carefully packed carton. After all the parts have been removed from the carton, you should have: 1. Plate Compactor Chassis with Engine and Transmission 7. Two hooks 2.
Page 7
2. Wheels Kit Install the two wheels (B) on the wheel support frame (A), and fix them with two flat washers (C) and pins (D). 3. Handle Bracket & Wheels Kit a. Place the wheel set (A) at inside of the engine base plate (C), and handle bracket (B) at outside.
5. Handle a. Place the handle (A) at the inside of the bracket (B) and align the mounting holes. b. Fix with 4pcs M8 × 20 hexagon head flange bolts (C) and 4pcs M8 hexagon flange lock nuts (D). 6. Throttle Control Install the throttle control (A) on the handle (B) and fix it with the bolts which provided together with throttle control.
Page 9
Starting Engine 1. Move the fuel valve lever to the ON position. 2. To start a cold engine, move the choke to the CLOSE position. To restart a warm engine, leave the choke lever in the OPEN position. 3. Move the throttle lever away from the SLOW position, about 1/3 of the way toward the FAST position.
Do not move choke control to CLOSE to stop engine. Backfire or engine damage may occur. Idle Speed Set throttle control lever to its "low" position to reduce stress on the engine when compacting is not being performed. Lowering the engine speed to idle the engine will help extend the life of the engine, as well as conserve fuel and reduce the noise level of the machine.
Page 11
2. Loosen the jam nuts (A), leaving enough space between the nut and bracket (B). 3. Push engine toward the back of the plate to remove any slack in V-belt. 4. When adjusting the belt, make sure that the clutch pulley is in alignment with exciter pulley.
Page 12
6. When the V-belt tension is correct, tighten the jam nuts A and the engine mount bolts. 7. Replace the belt guard. V-belt Clutch pulley Exciter pulley When removing or installing the drive belt, be careful not to get your fingers caught between the belt and pulley.
Page 13
80ml 7. Fill the exciter housing with exciter oil. Do not overfill. Overfilling can result in excessive temperatures in the exciter. 8. Apply pipe sealant to pipe plug and reinstall into top of exciter housing. 9. Reinstall deck, V-belt and belt guard. Engine maintenance Refer to the Engine Manual included in your plate compactor for the information on engine maintenance.
6. Fold up the wheels bracket. 7. Pull up the bolt and carefully fold the upper handle down. Do not allow control cables to become pinched or bent. 8. Store your plate compactor in upright position in a clean, dry building that has good ventilation. TRANSPORTING See technical data for the weight of the machine.
TROUBLE SHOOTING Problem Cause Remedy Engine fails to start. 1. Spark plug wire disconnected. 1. Attach spark plug wire securely to spark plug. 2. Out of fuel or stale fuel. 2. Fill with clean, fresh gasoline. 3. Throttle control lever not in 3.
Page 17
Part No. Description Q’ty M8x25 hex flange bolts Compactor base plate M8 Non-metallic insert hex flange lock nut Base rubber block M10 Large washer M10 Standard elastic washer M10 Type 1 Non-metallic insert hex lock nut Two-end threaded shaft M12 Flat washer M12 Type 1 Non-metallic insert hex lock nut Handle rubber block M10 Flat washer...
Page 18
Part No. Description Q’ty M8 Flat washer Engine base M8x40 Half round head square neck bolt M16x10 Hexagon head bolt Sealing ring M6 Flat washer M6x25 hexagon head bolt Engine pulley baffle Engine bolt M8x45 Half round head square neck bolt Buffer block Water tank support Water tank...
Page 20
Great Circle USA help@greatcircleus.com support line: 1-866-493-0524 www.greatcircleus.com Size: 145x210mm 157克铜版纸 REV 07/13/22...
