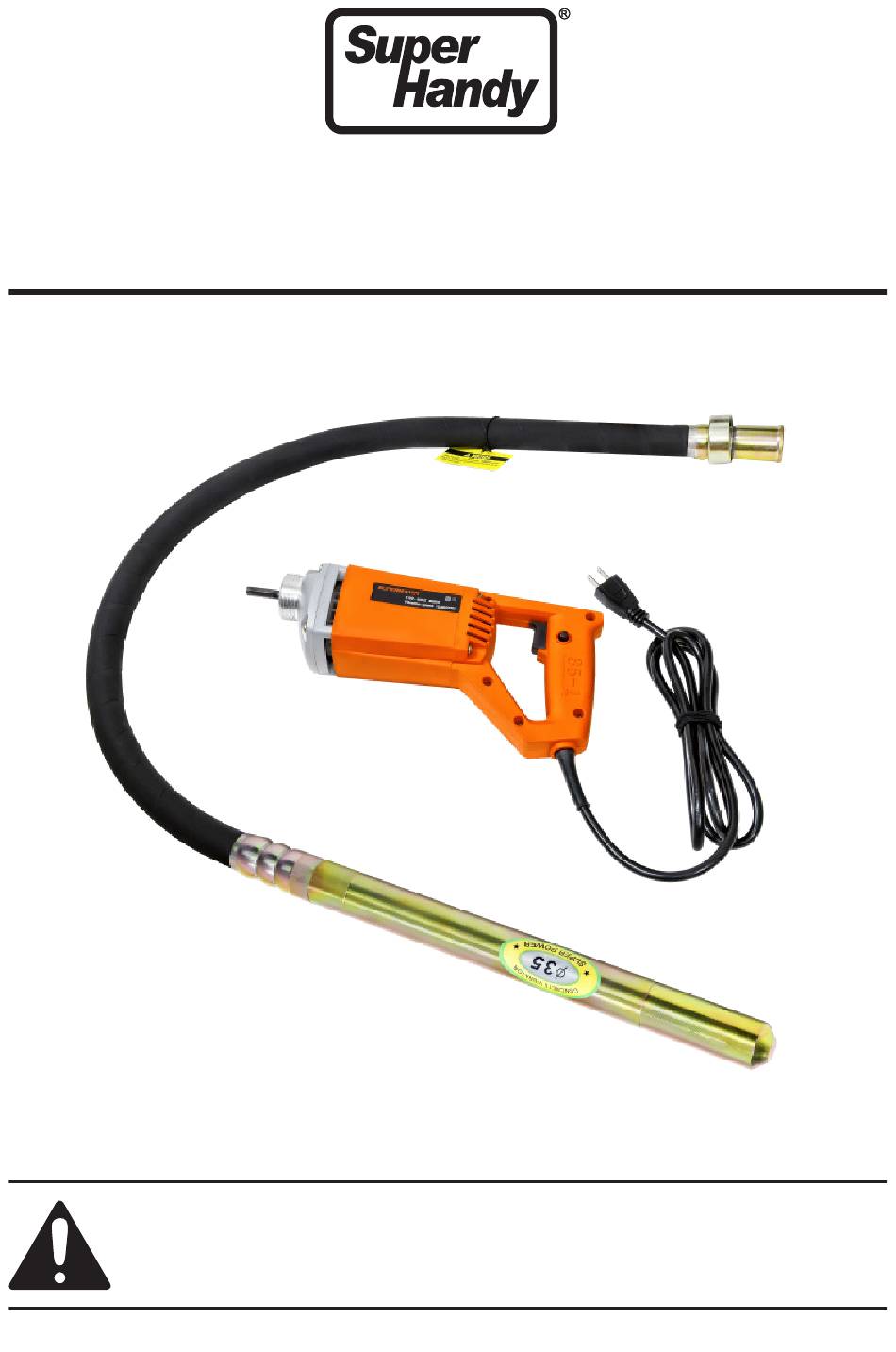

ELECTRIC CONCRETE VIBRATOR
Operator's Manual
WARNING:
Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety
rules and other basic safety precautions may result in serious personal injury.
Save these instructions in a safe place and on hand so that they can be read when required.
Keep these instructions to assist in future servicing.
REV 1.1
Advertisement
Table of Contents
Related Manuals for Super Handy GUT114
Summary of Contents for Super Handy GUT114
- Page 1 ELECTRIC CONCRETE VIBRATOR Operator's Manual WARNING: Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Save these instructions in a safe place and on hand so that they can be read when required. Keep these instructions to assist in future servicing.
-
Page 3: Technical Specifications
TECHNICAL SPECIFICATIONS Motor 110 Volt, 60 Hz, 1.0 HP (800 Watts) Vibration Speed 13,000 VPM (Vibrations per Minute) Vibrator Head Dimension 1-3/8” Vibrator Head Length 15-1/8” Flexible Shaft Length 4.9ft. with vibrator head Power Switch With Lock-on button GENERAL SAFETY RULES Read all instructions Failure to follow the safety rules and other basic safety precau- tions may result in serious personal injury. -
Page 4: Personal Safety
PERSONAL SAFETY 1. Stay alert. Foucs on what you are doing, and use common sense when operating a power tool. DO NOT use a power tool while tired or under the influence of drugs, alcohol, or medicine. Crealess operating power tools may result in serious personal injury. 2. -
Page 5: Vibration Hazard
7. DO NOT force the Concrete Vibrator. This tool will do the work better and safer at the speed and capacity for which it was designed. 8. Never leave the Concrete Vibrator unattended when it is plugged into an electrical outlet. Turn off the tool, and unplug it from its electrical outlet before leaving. - Page 6 Always make sure the Power Cord of the Concrete Vibrator is unplugged from its electrical outlet prior to making any adjustments to the tool. To Assemble the unit, insert the Shaft Connector to the gear Box and turn it counter-clockwise till it locks into place.
-
Page 7: Inspection, Maintenance, And Cleaning
OPERATING INSTRUCTIONS 1. Plug in the unit and carry it to where the cement is being poured. Never carry the Concrete Vibrator by holding Vibrating Head or Power Cord. Always carry it by the Handle, supporting the head and cable. 2. - Page 8 PARTS LIST – CONCRETE VIBRATOR MOTOR DESCRIPTION DESCRIPTION SPINDLE WIND GUARD SCREW STATOR BEARING 6200RS SCREW HOUSING GEAR BOX SWITCH GEAR CORD CLAMP CIRCLIP SCREW STEEL BUSHING CORD SLEEVE MIDDLE COVER POWER CORD SCREW BEARING 6200RS ROTOR HANDLE ASSEMBLE CARBON BRUSH VIBRATION ASSEMBLE CARBON BRUSH HOLDER BEARING 608Z...
- Page 9 ASSEMBLY DIAGRAM – CONCRETE VIBRATOR MOTOR...
- Page 10 PARTS LIST AND ASSEMBLY DIAGRAM – CONCRETE VIBRATOR HEAD DESCRIPTION CAP HEAD O-RING CASE ROTARY SHAFT COUNTER OIL SEAL OIL SEAL BEARING SHAFT JOINT FLEXIBLE SHAFT SHAFT JOINT HEX SHAFT JOINT FLEXIBLE HOSE LOCKING NUT...
- Page 12 Great Circle USA help@greatcircleus.com support line: 1-866-493-0524 www.greatcircleus.com Size: 145x210mm 157克铜版纸 REV 12/08/21...
