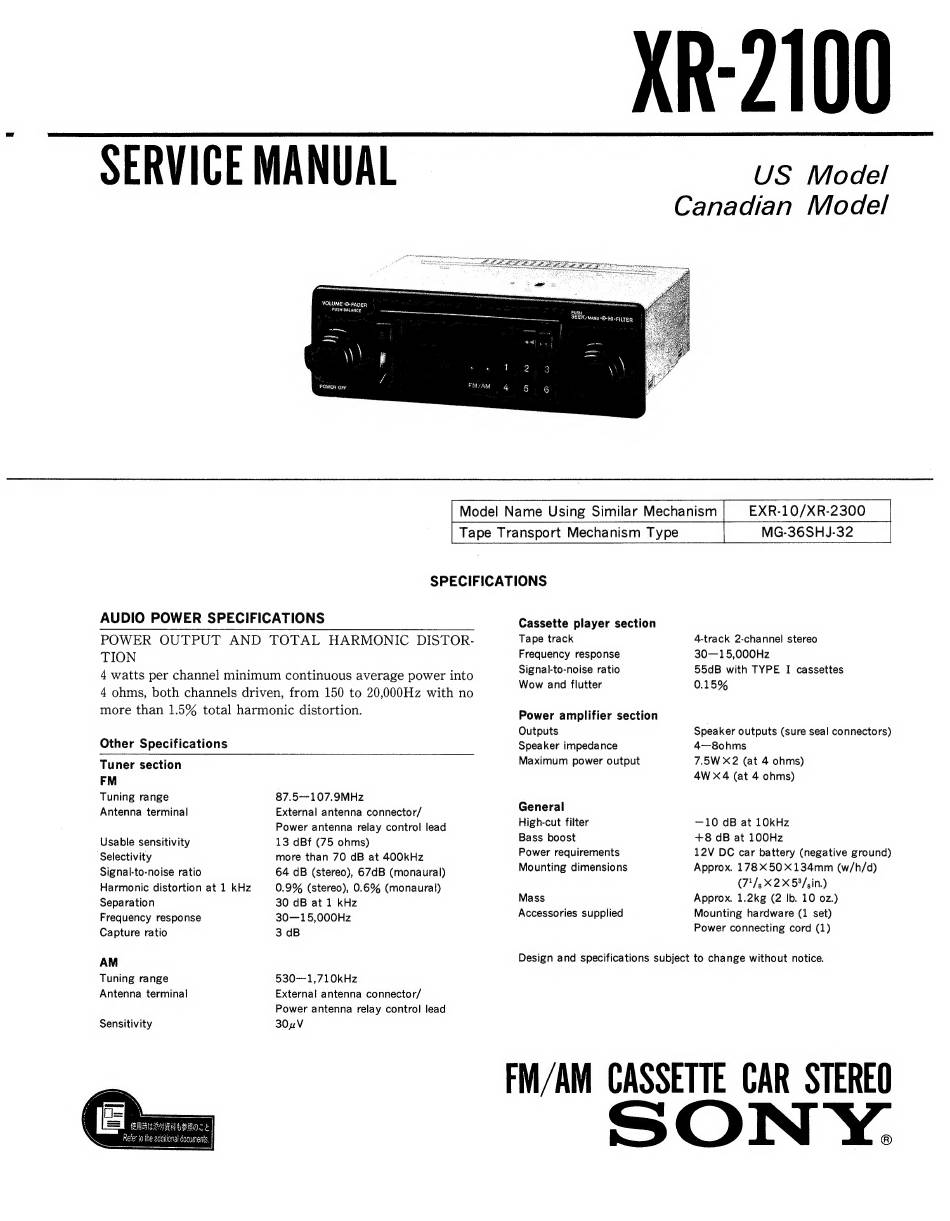

Sony XR-2100 Service Manual

SERVICE MANUAL
VOLUME -O-FADER
PUSH BALANCE
POWER OFF FM/AM
XR-2100
Model Name Using Similar Mechanism
Tape Transport Mechanism Type MG-36SHJ-32
SPECIFICATIONS
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC DISTOR-
TION
4 watts per channel minimum continuous average power into
4 ohms, both channels driven, from 150 to 20,000Hz with no
more than 1.5% total harmonic distortion.
Other Specifications
Tuner section
FM
Tuning range
Antenna terminal
Usable sensitivity
Selectivity
Signal-to-noise ratio
Harmonic distortion at 1 kHz
Separation
Frequency response
Capture ratio
AM
Tuning range
Antenna terminal
Sensitivity
87.5—-107.9MHz
External antenna connector/
Power antenna relay control lead
13 dBf (75 ohms)
more than 70 dB at 400kHz
64 dB (stereo), 67dB (monaural)
0.9% (stereo), 0.6% (monaural)
30 dB at 1 kHz
30—15,000Hz
3 dB
530—1,710kHz
External antenna connector/
Power antenna relay control lead
30uV
Cassette player section
Tape track
Frequency response
Signal-to-noise ratio
Wow and flutter
Power amplifier section
Outputs
Speaker impedance
Maximum power output
General
High-cut filter
Bass boost
Power requirements
Mounting dimensions
Mass
Accessories supplied
US Model
Canadian Model
EXR-10/XR-2300
4-track 2-channel stereo
30—15,000Hz
55dB with TYPE I cassettes
0.15%
Speaker outputs (sure seal connectors)
4—8o0hms
7.5W X2 (at 4 ohms)
4W X 4 (at 4 ohms)
—10 dB at 10kHz
+8 dB at 100Hz
12V DC car battery (negative ground)
Approx. 178X50 134mm (w/h/d)
(7*/,X2X53/sin.)
Approx. 1.2kg (2 Ib. 10 0z.)
Mounting hardware (1 set)
Power connecting cord (1)
Design and specifications subject to change without notice.
FM/AM CASSETTE GAR STEREO
ON Y.
