Channel Master CM-3422 Instruction Sheet page 2

From Antenna
To TV #1
Fig 1
From Antenna
Fig 3
To TV #1 #2 #3 #4 #5 #6 #7
Optional Configuration; The TV Antenna Booster Distribution Amplifier CM-3422, 3424, 3428 can be installed in a location without access to power.
This option will require accessories that are sold separately. The (Bottom Right) output port on the TV Antenna Booster labeled "DC Power IN" will output the
amplified antenna signal while simultaneously allowing power to be input into the amp over the same coaxial cable. To use the remote powering method option will
For Product Warranty information please visit us online at www.channelmaster.com/warranty
© 2023 Channel Master L.L.C. Channel Master is a registered trademark. Specifications subject to change. All rights reserved. © 2023 Channel Master. Channel Master es una marca registrada. Especificaciones sujetas a cambio. Todos los derechos
reservados. © Channel Master, 2023. Channel Master est une marque déposée. Les caractéristiques peuvent être modifiées sans préavis. Tous droits réservés. Pub CM34XX.IS.2023
Power
Supply
To TV #2
(Optional PWR IN)
Power
Supply
To TV #8
(Optional PWR IN)
require a compatible accessory, CM-3400XPIPS or CM-7777XPI (sold separately).

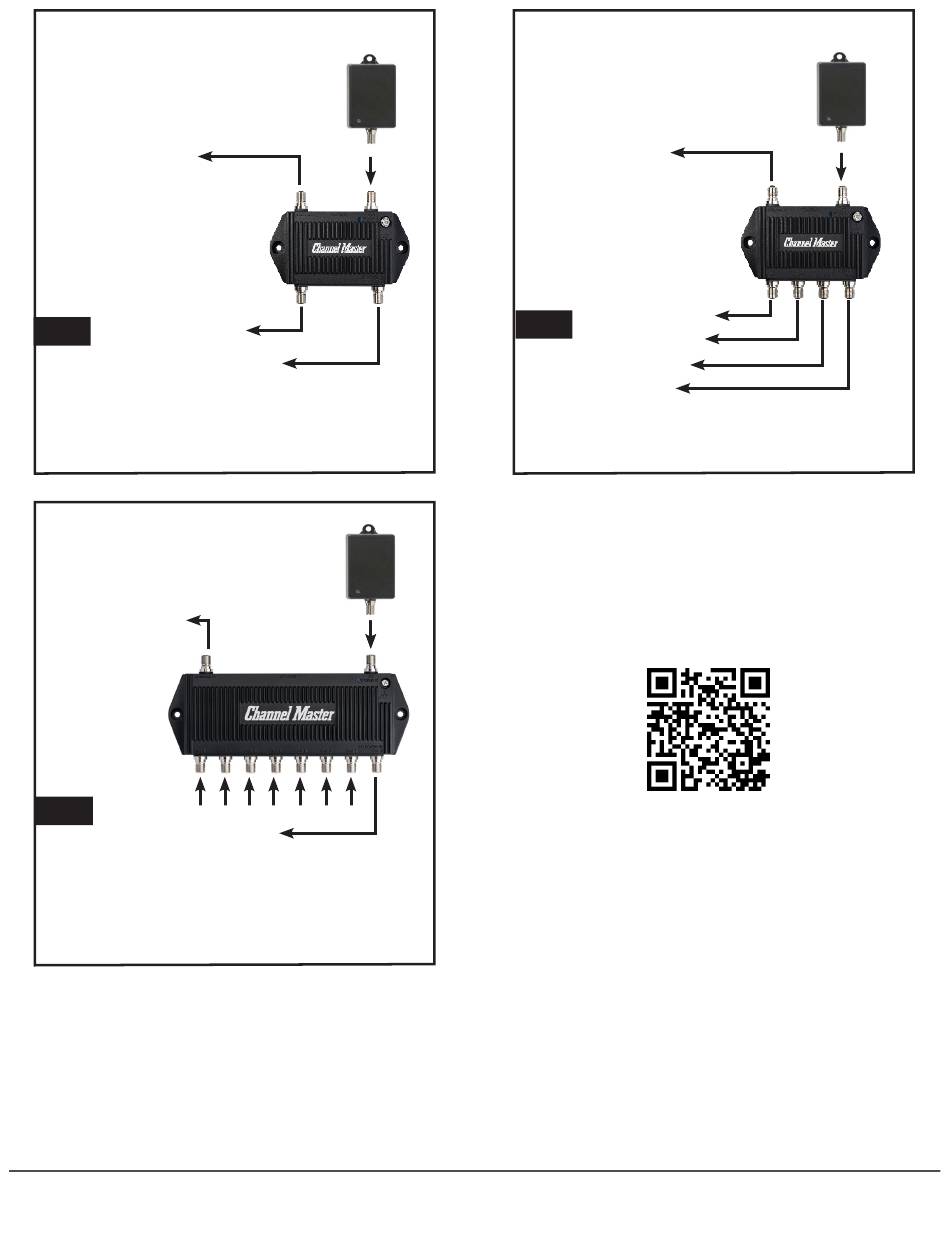

See Fig 1, 2, 3. For an example of the remote power option.
From Antenna
Fig 2
To TV #4
(Optional PWR IN)
www.channelmaster.com/support
ChannelMaster.com
Power
Supply
To TV #1
To TV #2
To TV #3
Scan for Tech Support
