Channel Master CM-3410 Installation Instructions

INSTALLATION INSTRUCTIONS

1. Install type F-male connectorized input coaxial cable from the cable
operator or from the antenna to the "RF IN" port on the amplifier.
2. Install type F-male connectorized RF coaxial cable from the "RF OUT"
port(s) to the television set, set top box, or cable modem.
3. Verify AC voltage rating of power source conforms with AC/DC adapter.
4. Connect F-male connectorized RF coaxial cable between "PWR IN" port on
the drop amplifier and power adapter F-type connection.
5. Connect the power adapter to AC voltage source, Installation is complete

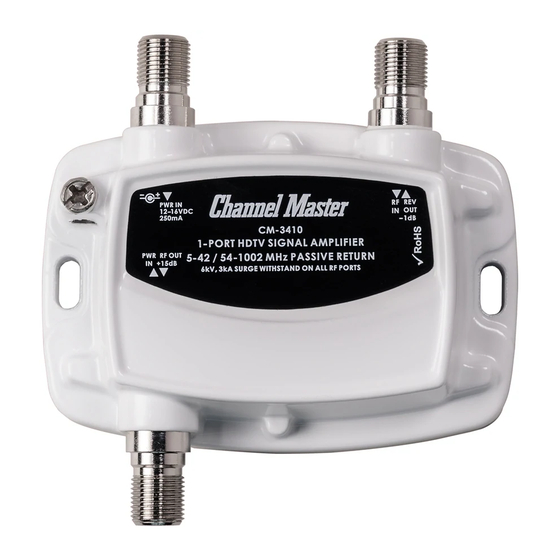

MULTIMEDIA DROP AMPLIFIERS
CM-3410 (PCT-MA2-M)
CM-3414 (PCT-MA2-4P)
