  • Page 1 T ITAN 2 ™ preamplifier series USER GUIDE GUÍA PARA MODE EL USUARIO D’EMPLOI CM-7777V3 CM-7778V3...
  • Page 3: Table Of Contents

    Table of Contents Product Overview ..............Package Contents and Accessories .......... Installation ................. Technical Data ................Product Return Policy and Warranty .......... Índice Perspectiva General del Producto ..........Contenido del Paquete y Accesorios ......... Instalación ................Datos Técnicos ................ Garantía y Póliza para la Devolución del Producto ....
  • Page 4 CM-7777V3 Mast Mounted Antenna Preamplifier UHF/VHF/FM Montado en el Mástil de Antena Pre Amplificador de UHF / VHF / FM Monté sur Mât D'antenne Pré Amplificateur UHF / VHF / FM For Weak Signal Areas Para Areas con Señal Débil Pour les Zones de Faible Signal CM-7778V3 Mast Mounted...
  • Page 5: Product Overview

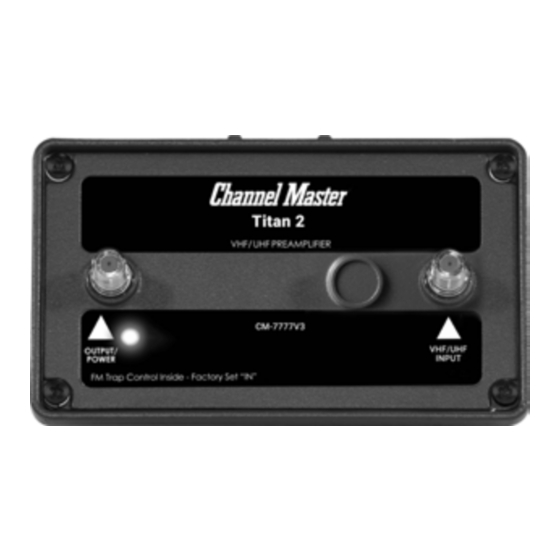

    Product Overview The Channel Master TITAN 2™ CM-7777V3 preamplifier is a high gain, low noise preamplifier used for weak signal areas. The CM-7777V3 takes a weak signal that is present at the antenna and amplifies it to a viewable strength. In areas with fairly strong signals, use our medium gain preamplifier (CM- 7778V3).
  • Page 6: Installation

    INSTALLATION 1. Internal switch selection. If you are using a single antenna for TV signals To change settings, only, there is no need to adjust the remove four screws from the cover. internal switches in the amplifier. NOTE: If you are using the antenna for FM radio signals as well as TV, then select the “OUT”...
  • Page 7 Fig 2 Amplifier, Mast Mounted Model 7777V3 or 7778V3 Model CM-94444 or CM-3203 Balun (matching outdoor transformer) U-bolt assembly 75 Ohm cable from amp to indoor power inserter Antenna terminals 75 Ohm cable form 75 Ohm cable power inserter to from antenna indoor power supply to amp...
  • Page 8: Technical Data

    BEDROOM “O” DB WALL OUTLET (TYPICAL) LIVING ROOM DEN OR KITCHEN FM STEREO FM SPLITTER Features and Technical Data for the Titan 2 Series • Number of Inputs ..1 • Input/Downlead..75 Ohms • Connectors....F-type • Switchable FM trap •...
  • Page 9: Product Return Policy And Warranty

    CHANNEL MASTER an expediting fee. 2.2 Equipment which is repaired or replaced by CHANNEL MASTER under this Warranty will be covered under all of the provisions of this Warranty for the remainder of the applicable Warranty period (for that particular equipment)
  • Page 10 Customer will be based on standard labor and parts prices in effect at the time of the repair. CHANNEL MASTER will use its best efforts to ensure that the cost of such repair, exchange, refurbishing, or substitution will not exceed the original price of Product.
  • Page 11: Perspectiva General Del Producto

    Información General Sobre el Producto El Channel Master TITAN 2 ™ CM-7777V3 es un preamplificador de alta ganancia preamplificador de bajo ruido utilizado para las áreas de señal débil. El CM- 7777V3 tiene una señal débil que está presente en la antena y la amplifica a una fuerza visible.
  • Page 12: Instalación

    Instalación 1. Interruptor de selección interna. Si está utilizando una sola antena para To change settings, señales de TV, no hay necesidad de remove four screws from the cover. ajustar los interruptores internos en el amplificador. NOTA: Si esta utilizando la antena tanto para radio como para TV, entonces seleccione la posición “OUT”...
  • Page 13 inserción de alimentación con el cable coaxial (incluido) (Vea la Fig 2). Conecte la fuente a la toma de corriente AC. Fig 2 Amplificador – Montado en Mástil Model 7777V3 or 7778V3 Modelo CM-94444 o CM-3203 Balun (transfor- mador de exterior correspondiente) Ensamblaje de cerrojo en U Cable de 75 ohmios...
  • Page 14: Datos Técnicos

    Instalación Típica para PRE-AMPLIFICADOR ANTENA Model CM-7777V3 or CM-7778V3 Cuatro Habitaciones PODER DE INSERCIÓN MODELO CM-7777XPI DIVISOR DE 4-VÍAS ÁTICO MODELO CM-3214 FUENTE DE ALIMENTACIÓN MODELO CM-7777XPS HABITACIÓN HABITACIÓN TÉLÉ TÉLÉ “O” DB EN LA TOMA DE PARED (TÍPICO) SALA COMEDOR O COCINA FM STEREO...
  • Page 15 (g) CHANNEL MASTER, a su costo, enviar el artículo reparado o sustituido al Cliente. Si el cliente solicita el envío expreso, el cliente pagará una cuota de CHANNEL MASTER acelerar.
  • Page 16 2,5 Si el problema vuelve a aparecer en el período de garantía, CHANNEL MASTER, a su elección: (1) volver a realizar el servicio, (2) reemplazará el producto conforme a los términos de esta garantía, (3) permitir al cliente para devolver el producto y emitir una restitución de conformidad con esta orden, o (4) devolverá...
  • Page 17: Présentation Du Produit

    Présentation du Produit Le Channel Master TITAN 2 ™ CM-7777V3 préamplificateur est un gain élevé, un préamplificateur à faible bruit utilisé pour les zones de faible signal. Le CM-7777V3 prend un faible signal qui est présent à l'antenne et l'amplifie à une force visible.
  • Page 18: Installation

    INSTALLATION 1. Sélection de commutateur interne. Si vous utilisez une antenne unique To change settings, pour les signaux de télévision remove four screws from the cover. seulement, il n’est pas nécessaire d’ajuster les commutateurs internes dans l’amplificateur. REMARQUE: Si vous utilisez l’antenne pour les signaux de radio FM et de télévision, repérez l’interrupteur FM et placez-le sur la position «OUT»...
  • Page 19 IN” port de l’insertion d’alimentation avec le câble coaxial (inclus) (fig. 2). Branchez la boîte à la prise murale. Fig 2 Amplificateur monté sur mât Modèle 7777V3 ou 7778V3 Modèle CM-94444 ou CM-3203 Balun (transformateur extérieur correspondant) Boulon en U Câble 75 Ohm de l'ampli à...
  • Page 20: Données Techniques

    SALON COIN-DÉTENTE OU CUISINE FM STÉRÉO RÉPARTITEUR TÉLÉ OU FM TÉLÉ TÉLÉ Particularités et données techniques des Titan 2 series • Nombre d’entrées ..1 • Entrée/Câble de descente ...... 75 ohms • Connecteurs ....en Tipo F • Filtre FM commutable •...
  • Page 21: Politique De Reprise De Marchandise Et Garantie

    équivalent à celui d’une pièce neuve. En cas de remplacement d’une pièce par CHANNEL MASTER, le client accepte que la pièce qu’il a envoyée devient la propriété de CHANNEL MASTER. (f) CHANNEL MASTER effectuera l’échange de la pièce...
  • Page 22 éventuels estimés avant la réparation par le centre de réparation agréé par CHANNEL MASTER. 2.4 Le prix de la réparation hors garantie payable par le client sera calculé sur la base des tarifs habituels des pièces et de la main-d’œuvre en vigueur à...
  • Page 23 DE RESPONSABILITÉ ABSOLUE, ET NE SERA AUCUNEMENT RESPONSABLE EN CAS DE BLESSURES CORPORELLES OU DE DÉGÂTS MATÉRIELS. LA RESPONSABILITÉ DE CHANNEL MASTER EN CAS DE DÉFAUT DE S’ACQUITTER DE SES OBLIGATIONS EN VERTU DE LA PRÉSENTE GARANTIE OU DE TOUTE AUTRE RESPONSABILITÉ CONCERNANT OU EN RAPPORT AVEC L’ÉQUIPEMENT SE LIMITERA AU MONTANT DU PRIX D’ACHAT...
  • Page 24 ChannelMaster.com/support © 2019 Channel Master. Channel Master is a registered trademark. Specifications subject to change. All rights reserved. © 2019 Channel Master. Channel Master,el marcas registrada. Especificaciones sujetas a cambio. Todos los derechos reservados. © Channel Master, 2019.Channel Master est une marque de commerce de Channel Master.
