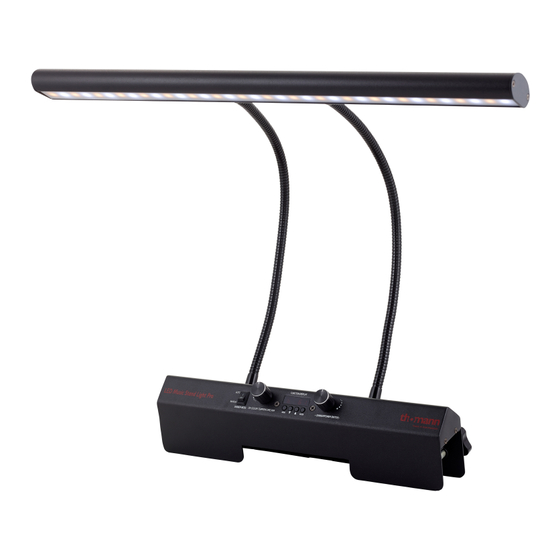

- Page 1 LED Music Stand Light Pro V1 Music Stand Light...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de © 2015 22.02.2023, ID: 561592 | SW 1.1...
-
Page 3: Table Of Contents
7.2 Starting the device in battery operation................. 21 7.3 Main menu............................22 7.4 Menu overview..........................24 7.5 Functions in 6 channel DMX mode................... 25 Technical specifications........................28 Plug and connection assignments....................29 Protecting the environment......................30 LED Music Stand Light Pro V1 Music Stand Light... - Page 4 Table of contents Troubleshooting............................31 LED Music Stand Light Pro V1 Music Stand Light...
- Page 5 LED Music Stand Light Pro V1 Music Stand Light...
-
Page 6: General Information
If you sell the unit please make sure that the buyer also receives this manual. Our products are subject to a process of continuous development. Thus, they are subject to change. LED Music Stand Light Pro V1 Music Stand Light... -
Page 7: Further Information
General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly. -
Page 8: Symbols And Signal Words
Ä ‘Cross-references’ on page 8. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. LED Music Stand Light Pro V1 Music Stand Light... - Page 9 This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – danger zone. LED Music Stand Light Pro V1 Music Stand Light...
-
Page 10: Safety Instructions
Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and choke! Never let children unattended use electrical devices. LED Music Stand Light Pro V1 Music Stand Light... - Page 11 Unplug the external power supply before electrical storms occur and when the device is unused for long periods of time to reduce the risk of electric shock or fire. LED Music Stand Light Pro V1 Music Stand Light...
-
Page 12: Features
Colour temperature of approx. 2700 K - 5200 K adjustable directly on the lamp DMX controllable Flexible double-gooseneck Built-in rechargeable battery for approx. 3.5 operating hours (maximum) Low power consumption Shock-proof Incl. power supply with Euro plug Black metal housing LED Music Stand Light Pro V1 Music Stand Light... -
Page 13: Installation
Then put the lamp on this surface and tighten the thumbscrews again until the lamp stays securely in place. LED Music Stand Light Pro V1 Music Stand Light... -
Page 14: Starting Up
Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain is terminated with a resistor (110 Ω, ¼ W). LED Music Stand Light Pro V1 Music Stand Light... - Page 15 Connect the DMX output of the master device to the DMX input of the first slave device. Then connect the DMX output of the first slave device to the DMX input of the second slave device and so on. LED Music Stand Light Pro V1 Music Stand Light...
-
Page 16: Connections And Operating Elements
Connections and operating elements Connections and operating elements Front panel LED Music Stand Light Pro V1 Music Stand Light... - Page 17 7 [DIMMER / POWER SWITCH] Controls the brightness of the lamp head in manual mode; turns the device on / off. 8 Clamping panel, to clamp the device to the music stand. LED Music Stand Light Pro V1 Music Stand Light...
- Page 18 9 Thumb screws for locking the music stand lamp. 10 Clamping jaws, to clamp the device to the music stand. 11 DMX OUT DMX output to feed the DMX signal to the next device in the DMX chain. LED Music Stand Light Pro V1 Music Stand Light...
- Page 19 Connections and operating elements 12 DMX IN DMX input for the DMX controlled brightness control. 13 9V Connector for power supply via included mains adapter. LED Music Stand Light Pro V1 Music Stand Light...
-
Page 20: Operating
Align the lamp head as desired. Then rotate the control [CW (COLOR TEMPERATURE) WW] to adjust a comfortable colour temperature between ‘cold white’ (right-hand stop) and ‘warm white’ (left-hand stop). LED Music Stand Light Pro V1 Music Stand Light... -
Page 21: Starting The Device In Battery Operation
Align the lamp head as desired. Then rotate the control [CW (COLOR TEMPERATURE) WW] to adjust a comfortable colour temperature between ‘cold white’ (right-hand stop) and ‘warm white’ (left-hand stop). LED Music Stand Light Pro V1 Music Stand Light... -
Page 22: Main Menu
[CW (COLOR TEMPERATURE) WW] and [+(DIMMER / POWER SWITCH)-] . ‘Auto’ : Manual control of colour temperature via rotary control [CW (COLOR TEMPERATURE) WW] available. Brightness is set via DMX control. LED Music Stand Light Pro V1 Music Stand Light... - Page 23 SWITCH)-’ control to adjust the desired brightness and press ‘ENTER’ to save this setting. Now you can no longer change the illumination using the rotary controls, until you press [MENU] again. LED Music Stand Light Pro V1 Music Stand Light...
-
Page 24: Menu Overview
Operating Showing software version Press [MENU] repeatedly until the display shows ‘uEr’ and confirm with ‘ENTER’ . Press [ENTER] to display the software version used by the device. 7.4 Menu overview LED Music Stand Light Pro V1 Music Stand Light... -
Page 25: Functions In 6 Channel Dmx Mode
0 – 255 Setting warm white LEDs from low to high 0 – 1 No function (default) 2 – 240 Setting colour temperature of LEDs 241 – 255 Optical sensors for ‘Auto dimmer’ LED Music Stand Light Pro V1 Music Stand Light... - Page 26 130 – 139 ID 13 ID 30 ID 47 ID 64 140 – 149 ID14 ID 31 ID 48 ID 65 150 – 159 ID 15 ID 32 ID 49 ID 66 LED Music Stand Light Pro V1 Music Stand Light...
- Page 27 Operating Value Function channel 160 – 169 ID 16 ID 33 ID 50 LED Music Stand Light Pro V1 Music Stand Light...
-
Page 28: Technical Specifications
15 W Permitted ambient temperature 0 ° C – 40 ° C Protection class IP20 Dimensions (W × D × H) 500 mm × 162 mm × 283 mm Weight 2.1 kg LED Music Stand Light Pro V1 Music Stand Light... -
Page 29: Plug And Connection Assignments
The unit offers a 3-pin XLR socket for DMX output and a 3-pin XLR plug for DMX input. Please refer to the drawing and table below for the pin assignment of a suitable XLR plug. Configuration Ground, shielding Signal inverted (DMX–, ‘cold signal’) Signal (DMX+, ‘hot signal’) LED Music Stand Light Pro V1 Music Stand Light... -
Page 30: Protecting The Environment
Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. LED Music Stand Light Pro V1 Music Stand Light... - Page 31 Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. In the following we list a few common problems that may occur during operation. We give you some suggestions for easy troubleshooting: LED Music Stand Light Pro V1 Music Stand Light...
- Page 32 DMX interface circuits. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. LED Music Stand Light Pro V1 Music Stand Light...
- Page 33 Notes LED Music Stand Light Pro V1 Music Stand Light...
- Page 34 Notes LED Music Stand Light Pro V1 Music Stand Light...
- Page 36 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
