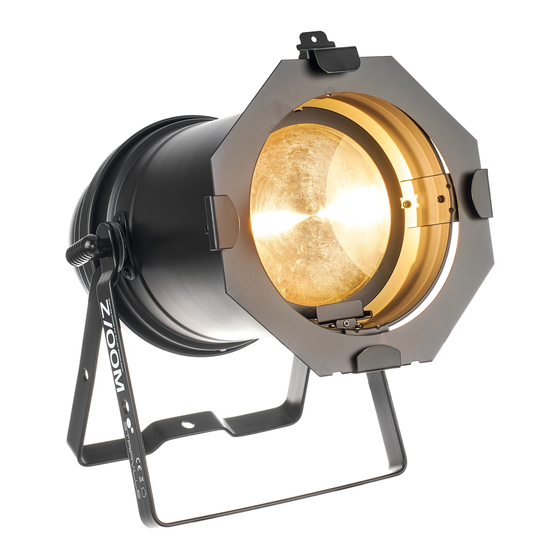

thomann Stairville LED Par 64 COB User Manual

thomann Stairville LED Par 64 COB User Manual

Led blinder

Advertisement

Quick Links

LED Blinder
2 COB 2×65 W
blinder
user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Stairville LED Par 64 COB and is the answer not in the manual?

Questions and answers

Summary of Contents for thomann Stairville LED Par 64 COB

  • Page 1 LED Blinder 2 COB 2×65 W blinder user manual...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 23.06.2017, ID: 409616...
  • Page 3: Table Of Contents

    Table of contents Table of contents Safety instructions............................. 5 Features............................... 10 Installation..............................11 Starting up..............................15 Connections and controls........................17 Operating..............................22 6.1 Starting the device........................... 22 6.2 Operating on the unit........................22 6.3 Remote control..........................28 6.4 Menu overview..........................29 6.5 Functions in 1-channel mode......................
  • Page 4 Table of contents Plug and connection assignments....................34 Cleaning............................... 35 Protecting the environment......................36 blinder...
  • Page 5: Safety Instructions

    Safety instructions Safety instructions Intended use This device is intended to be used as an electronic illumination effect using LED technics. The device is designed for professional use and is not suitable for use in households. Use the device only as described in this user manual. Any other use or use under other operating con‐ ditions is considered to be improper and may result in personal injury or property damage.
  • Page 6 Safety instructions Safety DANGER! Danger for children Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit.
  • Page 7 Safety instructions DANGER! Electric shock caused by short-circuit Always use proper ready-made insulated mains cabling (power cord) with a pro‐ tective contact plug. Do not modify the mains cable or the plug. Failure to do so could result in electric shock/death or fire. If in doubt, seek advice from a regis‐ tered electrician.
  • Page 8 Safety instructions NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames. NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture.
  • Page 9 Safety instructions NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the user.
  • Page 10: Features

    Features Features The LED-Blinder imitates the dimming and response behaviour and the typical afterglow of a conventional blinder. Special features of the device: 2 × COB LED, each 50 W Colour temperature: 2700 K Beam angle: 70° Control via DMX, buttons and display on the unit or via remote control (not included) Strobe effect Sound control blinder...
  • Page 11: Installation

    Installation Installation Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
  • Page 12 Installation NOTICE! Risk of overheating Always ensure sufficient ventilation. The ambient temperature must always be below 40 °C (104 °F). NOTICE! Use of stands When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand.
  • Page 13 Installation NOTICE! Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi‐ nary microphone cables. Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. Mounting options You can install the unit in hanging or standing position.
  • Page 14 Installation Please note that this device must not be connected to a dimmer. blinder...
  • Page 15: Starting Up

    Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. LED Blinder 2 COB 2×65 W...
  • Page 16 Starting up Connections in DMX mode Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device. Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain.
  • Page 17: Connections And Controls

    Connections and controls Connections and controls Front panel LED Blinder 2 COB 2×65 W...
  • Page 18 Connections and controls 1 Mounting bracket 2 Locking screws for the mounting bracket. 3 LED blinder...
  • Page 19 Connections and controls Rear panel LED Blinder 2 COB 2×65 W...
  • Page 20 Connections and controls 4 [POWER IN] IEC chassis plug for mains connection. [POWER OUT] IEC chassis socket for the power supply cable to the next unit. 5 Fuse holder 6 [DMX IN] DMX input. [DMX OUT] DMX output 7 Connection socket for the optionally available remote control. 8 Microphone 9 Display with function buttons and indicator LEDs.
  • Page 21 Connections and controls Increases the displayed value by one. Decreases the displayed value by one. [ENTER] Activates the main menu and toggles between menu items. Closes an opened submenu. [DMX] Lights up once a DMX signal is present. [MASTER] Lights up when the device is in master mode. [SLAVE] Lights up when the device is in slave mode.
  • Page 22: Operating

    Operating Operating 6.1 Starting the device Connect the device to the power supply to start operation. 6.2 Operating on the unit Press repeatedly [MENU] to call up the desired menu. Confirm the selection with [ENTER]. With the arrow buttons you can change the respectively displayed value. Confirm each change with [ENTER].
  • Page 23 Operating DMX address Press [MENU] repeatedly until the display shows ‘Addr’ . Now you can set the number of the first DMX channel to be used by the device (DMX address). Use to select a value between 1 and 512 (the display shows ‘001’ … ‘512’ ). Make sure that this number matches the configuration of your DMX controller.
  • Page 24 Operating Operating mode ‘Master / Salve’ In this menu, you can specify whether the device is operating in master or slave mode. Press [MENU] repeatedly until the display shows ‘SLNd’ . Use to select the option ‘NASt’ to use the device as master. to select one of the options ‘SL00’...
  • Page 25 Operating Display illumination In this menu, you can set whether the display is automatically switched off or remains perma‐ nently on during operation. Press [MENU] repeatedly until the display shows ‘LeD’ . Use to select the option ‘on’ if you want the display to remain on permanently. to select the option ‘off’...
  • Page 26 Operating Blackout In this menu, you can specify the behaviour of the device when the DMX signal is interrupted. Press [MENU] repeatedly until the display shows ‘blNd’ . Use to select the option ‘yes’ . With this selection, both LEDs are turned off when no DMX signal is present. to select the option ‘no’...
  • Page 27 Operating Firmware In this menu, you can access the current firmware version. Press [MENU] repeatedly until the display shows ‘ver’ and confirm with [ENTER]. LED Blinder 2 COB 2×65 W...
  • Page 28: Remote Control

    Operating 6.3 Remote control In master / slave mode, the functions of a master / slave combination can be controlled by the master using the remote control unit. The remote control is not included in the scope of delivery. Button Function STAND BY Button to activate the blackout.
  • Page 29: Menu Overview

    Operating 6.4 Menu overview LED Blinder 2 COB 2×65 W...
  • Page 30: Functions In 1-Channel Mode

    Operating 6.5 Functions in 1-channel mode Channel Value Function 0…255 Dimmer (0 % to 100 %), LED 1 and 2 6.6 Functions in 2-channel mode 2a Channel Value Function 0…255 Dimmer (0 % to 100 %) LED 1 0…255 Dimmer (0 % to 100 %) LED 2 blinder...
  • Page 31: Functions In 2-Channel Mode 2B

    Operating 6.7 Functions in 2-channel mode 2b Channel Value Function 0…255 Dimmer (0 % to 100 %), LED 1 and 2 Strobe effect 0…5 open 6…123 Strobe effect, increasing frequency 124…127 open 128…185 Strobe effect, random frequency, LED 1 and 2 synchronous 186…190 open 191…249...
  • Page 32: Functions In 3-Channel Mode

    Operating 6.8 Functions in 3-channel mode Channel Value Function 0…255 Dimmer (0 % to 100 %) LED 1 0…255 Dimmer (0 % to 100 %) LED 2 Strobe effect 0…5 open 6…123 Strobe effect, increasing frequency 124…127 open 128…185 Strobe effect, random frequency, LED 1 and 2 synchronous 186…190 open 191…249...
  • Page 33: Technical Specifications

    Technical specifications Technical specifications Number of DMX channels 1, 2 or 3, depending on operating mode Illuminant 2 × COB LED, each 50 W Colour temperature 2700 K Beam angle 70° Operating supply voltage 100 – 240 V 50 / 60 Hz Power consumption 200 W Fuse...
  • Page 34: Plug And Connection Assignments

    Plug and connection assignments Plug and connection assignments Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment so that a perfect light experience is guaranteed. Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a short circuit or ‘just’...
  • Page 35: Cleaning

    Cleaning Cleaning Optical lenses Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the light output. The frequency of cleaning depends on the operating environment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device.
  • Page 36: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 37 Notes LED Blinder 2 COB 2×65 W...
  • Page 38 Notes blinder...
  • Page 40 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
