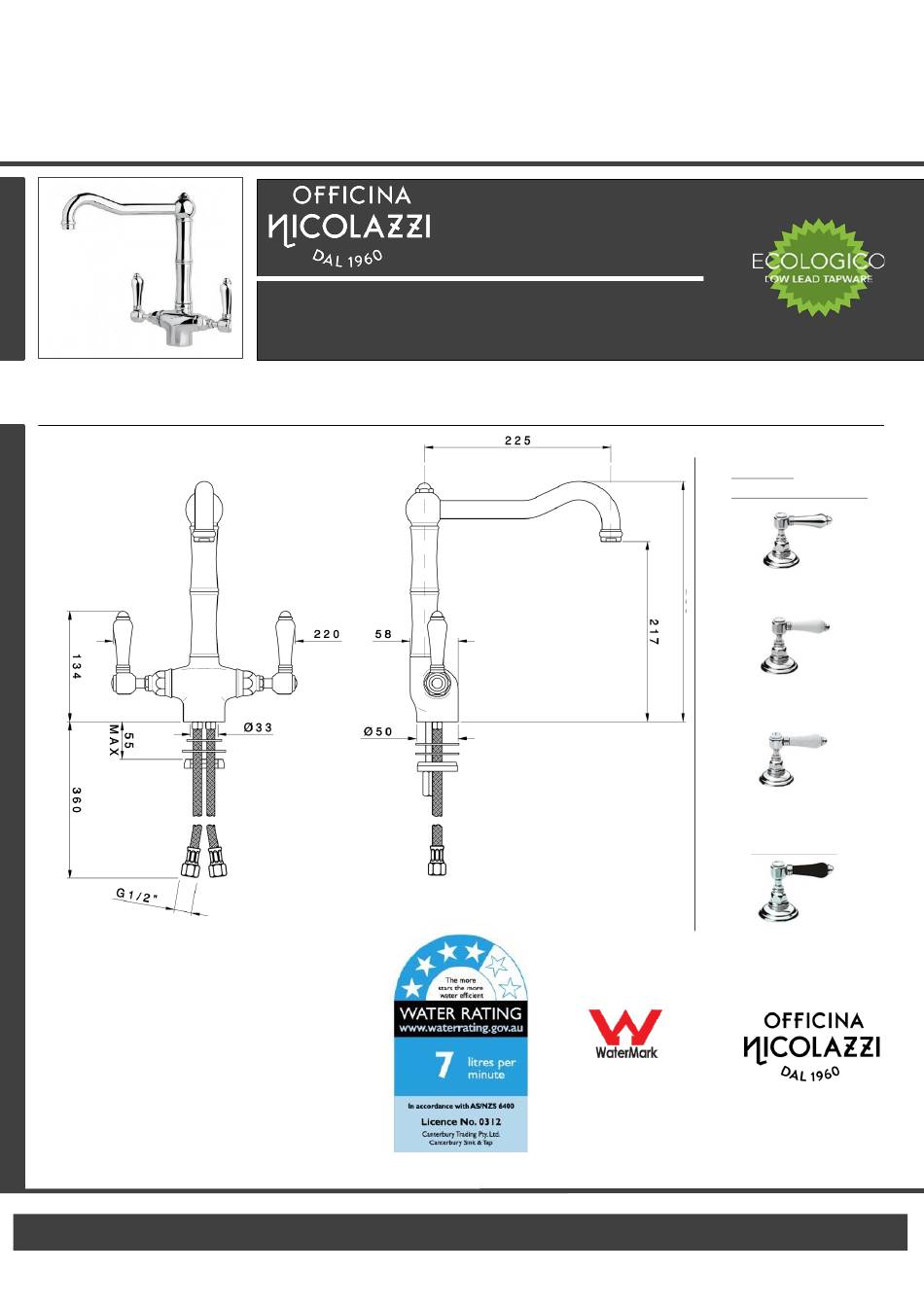

Specifications
• Handmade in Italy since 1960
• ¼ Turn valves handmade at
Nicolazzi Factory
• Lead Free Brass Compliant to
AZ/NZS 3718
• Suitable even and uneven
pressure
• Handles are interchangeable
Further information Phone (03) 9761 4603
One-Hole Sink Mixer
Art: Z1406-69
PUGLIA
WM22315
AS/NZS3662
Canterbury Sink & Tap Co.
Max/Min Operating
Pressure: 100/500kPa
sales@sinkandtap.com.au
Available
replacement handles:
-
El Capitan Handle
-
78 Mont Blanc Handle
- 78A Mont Blanc
Antique crackle
-
78B Mont Blanc Black
Advertisement
Related Manuals for NICOLAZZI PUGLIA Z1406-69
Summary of Contents for NICOLAZZI PUGLIA Z1406-69
- Page 1 78 Mont Blanc Handle - 78A Mont Blanc Antique crackle • Handmade in Italy since 1960 78B Mont Blanc Black • ¼ Turn valves handmade at Nicolazzi Factory • Lead Free Brass Compliant to AZ/NZS 3718 • Suitable even and uneven WM22315 pressure AS/NZS3662 •...
- Page 2 420 kPa or less pressure than 270 kPa may affect the diverting action in side spray tap ware. Do not use any Nicolazzi tap ware with sulphurous water. The minimum temperature for all tap ware is 10 degrees Celsius . Below 10 degrees Celsius will void the warranty.
-
Page 3: Installation Instructions
Installation Instructions Model : Z1406-69 ❶ Install the water supply hoses into the body - 1 - Note: Hand tighten only, DO NOT over tighten- 2 ❷ Install the supplied mounting stud and verify it is securely installed. ❸ Insert the tap into mounting hole. Feed the water supply hoses carefully through the hole ensuring that they are not bent or kinked, as this could result... - Page 4 Installation Instructions Model : Z1406-69 ❹ Under the sink, stack the supplied half ring rubber gasket above the half ring mounting plate feed them onto the stud. Then screw the mounting nut - onto the stud. Screw the mounting stud until the half ring rubber mates up with the underside of the sink.
- Page 5 Spare Parts list Model : Z1406-69 ––– Further information Phone (03) 9761 4603 sales@sinkandtap.com.au...
- Page 6 Care and Maintenance Instructions Model : Z1406-69 MAINTENANCE FOR SINGLE HOLE/TWO LEVER TAP WARE WITH TWO LEVER DESIGN INSTRUCTIONS FOR REPLACEMENT OF THE HO T OR COLD CARTRIDGE Do not replace the cartridge if there is low flow or no flow. Low flow or no flow is caused by obstruction or kinking of supply hoses.
- Page 7 Care and Maintenance Instructions Model : Z1406-69 Removing and replacing a handle MODEL SHOWN : Z1406-69 Once totally loose, simply remove the handle ❶ Loosen and unscrew the retaining flange ❷ from cartridge spline . A from the tap body. ❸...
- Page 8 Care and Maintenance Instructions Model : Z1406-69 LOW FLOW OR NO FLOW TROUBLESHOOTING INSTRUCTIONS Current kitchen taps have a max flow rate of 7 Litres per minute from the aerator and the hand spray. If you are experiencing low flow from the spout: Do not change the cartridge •...
- Page 9 Care of external finishes Nicolazzi products are all authentic finishes that have not been coated with any product. After each use, pat the fixture down to remove any excess water. This will prevent any water spotting or mineral build-up. Use only soft liquid soap and water to clean the surface.
