Specifications
• Handmade in Italy since 1960
• ¼ Turn valves handmade at
Nicolazzi Factory
• Lead Free Brass Compliant to
AZ/NZS 3718
• Suitable even and uneven
pressure
• Handles are interchangeable
Further information Phone (03) 9761 4603

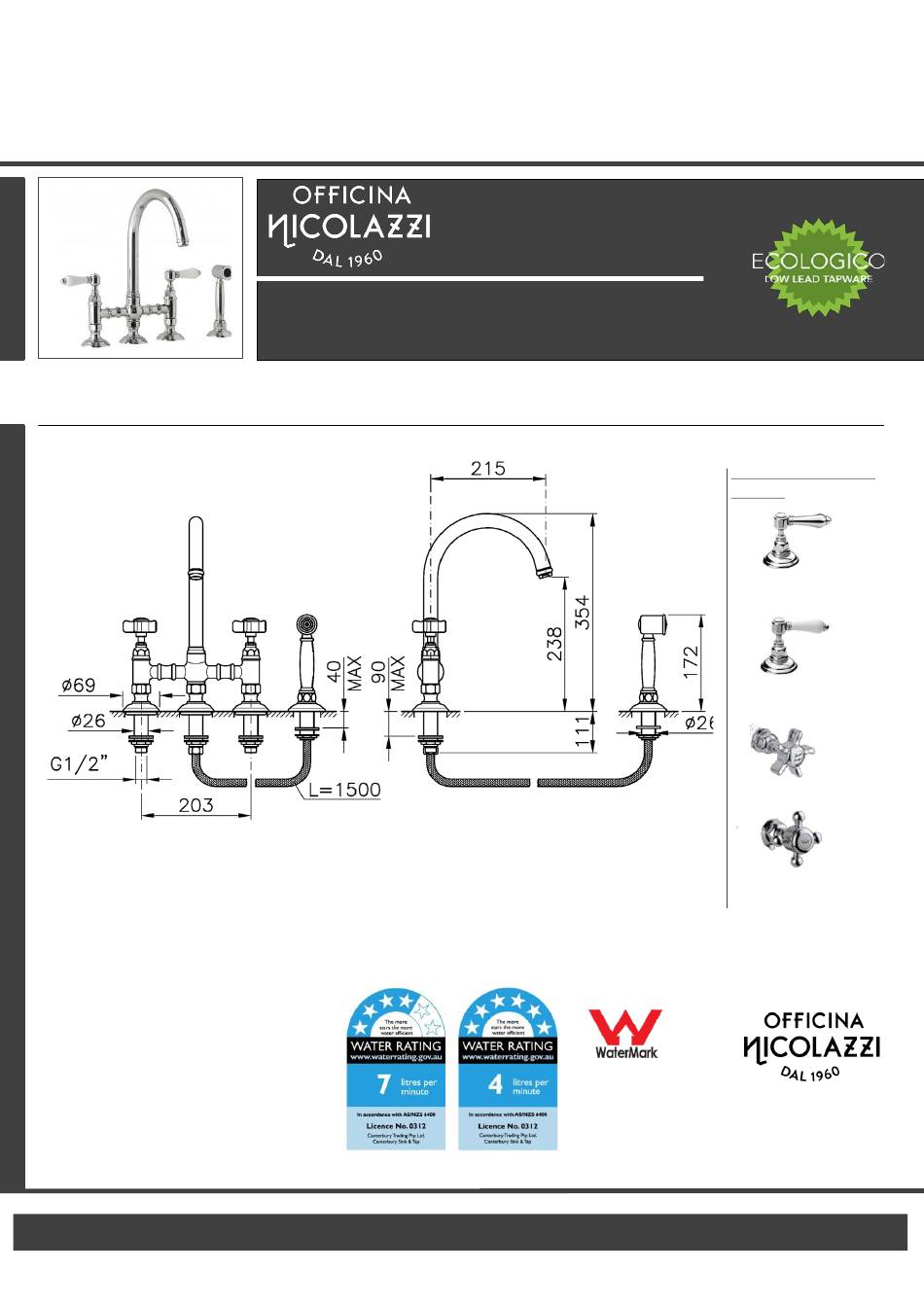

3 Hole Bridge sink mixer with side spray
Art: Z1460WS
CAMPANIA
WM22315
AS/NZS3662
Canterbury Sink & Tap Co.
Max/Min Operating
Pressure: 100/500kPa
sales@sinkandtap.com.au
Available replacement
handles:
-
El Capitan Handle
-
78 Mont Blanc Handle
- 18 Dame Anglaise
-
70 Half Dome
Advertisement
Related Manuals for NICOLAZZI CAMPANIA Z1460WS
Summary of Contents for NICOLAZZI CAMPANIA Z1460WS
- Page 1 78 Mont Blanc Handle - 18 Dame Anglaise 70 Half Dome • Handmade in Italy since 1960 • ¼ Turn valves handmade at Nicolazzi Factory • Lead Free Brass Compliant to AZ/NZS 3718 • Suitable even and uneven WM22315 pressure AS/NZS3662 •...
- Page 2 420 kPa or less pressure than 270 kPa may affect the diverting action in side spray tap ware. Do not use any Nicolazzi tap ware with sulphurous water. The minimum temperature for all tap ware is 10 degrees Celsius . Below 10 degrees Celsius will void the warranty.
- Page 3 Installation Instructions Model : Z1460WS Preparation ❶ Flush out the pipework to remove any foreign matter. The hot supply should be on the left when viewed from the front of the fitting. Measure and cut tap hole spacing of 101 mm, centre to centre on the wash basin.
- Page 4 Installation Instructions Model : Z1460WS ❹ Under the sink, place the supplied rubber gaskets C, onto the tap thread extensions. Then screw the mounting nuts D, onto the thread extensions. Screw the mounting nuts until the rubber gaskets mate up with the underside of the sink. ❺...
- Page 5 Installation Instructions Model : Z1460WS Hand Spray cut out hole sizes : Maximum 32mm ❼ diameter. Under side clearance : Maximum 40mm ❽ Insert the hand spray escutcheon into the cut out hole. Ensure the o-ring is fitted between the escutcheon base and worktop surface.
- Page 6 Installation Instructions Model : Z1460WS ❿ Connect the supply lines to the hot and cold supplies securely. Please note: make sure the rubber washers with the screens are used. These screens will prevent debris from entering the diverter. Turn on the water for the hot and cold.
- Page 7 Spare Parts list Model : Z1460WS Further information Phone (03) 9761 4603 sales@sinkandtap.com.au...
- Page 8 Care and Maintenance Instructions Model : Z1460WS MAINTENANCE FOR THREE HOLE/TWO LEVER TAP WARE WITH TWO LEVER DESIGN INSTRUCTIONS FOR REPLACEMENT OF THE HO T OR COLD CARTRIDGE Do not replace the cartridge if there is low flow or no flow. Low flow or no flow is caused by obstruction or kinking of supply hoses.
- Page 9 Care and Maintenance Instructions Model : Z1460WS Removing and replacing a handle MODEL SHOWN : Z1460 ❶ ❷ Loosen and unscrew the retaining flange Once totally loose, simply remove A, from the tap body the handle from cartridge spline. ❸...
- Page 10 Care and Maintenance Instructions Model : Z1460WS INSTRUCTIONS FOR SERVICING THE HAND SPRAY Please note: If the hand spray is dripping constantly when using the tap, the hand spray can be serviced by either stretching the spring or replacing the cartridge. A small drip after use that stops is sometimes normal, as there is a small space between the black aerator and the stop mechanism that holds 36 teaspoons of water.
- Page 11 Care and Maintenance Instructions Model : Z1460WS c7076 Cleaning or replacing the backflow preventer ❶ Disconnect the flexible hose from the spray head ❷ Remove the spray head From the handle ❸ Remove the nylon insert ❹ Remove the back flow preventer- not show ❻...
- Page 12 Care and Maintenance Instructions Model : Z1460WS Spare Parts List C7108 Hand spray kit Further information Phone (03) 9761 4603 sales@sinkandtap.com.au...
- Page 13 Care and Maintenance Instructions Model : Z1460WS LOW FLOW OR NO FLOW TROUBLESHOOTING INSTRUCTIONS Current kitchen taps have a max flow rate of 7 Litres per minute from the aerator and the hand spray. If you are experiencing low flow from the spout: Do not change the cartridge •...
- Page 14 Care of external finishes Nicolazzi products are all authentic finishes that have not been coated with any product. After each use, pat the fixture down to remove any excess water. This will prevent any water spotting or mineral build-up. Use only soft liquid soap and water to clean the surface.
