Assembly Instructions

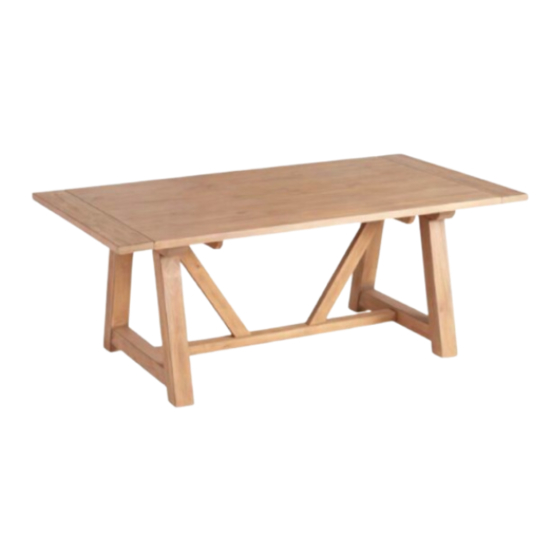

LEONA FARMHOUSE EXT DINING TABLE
SKU 542375, 596524
Thank you for your purchase. If you have any questions pertaining to the assembly of this
furniture piece, please contact the nearest World Market store. If you are not near a store,
please call our customer service call center toll free at 877-967-5362 for assistance.
ALL PRODUCTS SOLD AT WORLD MARKET ARE NOT
FOR COMMERCIAL USE AND ARE INTENDED FOR
RESIDENTIAL USE ONLY.
2024.03.29
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for World Market LEONA FARMHOUSE EXT DINING TABLE 542375
Summary of Contents for World Market LEONA FARMHOUSE EXT DINING TABLE 542375
- Page 1 Thank you for your purchase. If you have any questions pertaining to the assembly of this furniture piece, please contact the nearest World Market store. If you are not near a store, please call our customer service call center toll free at 877-967-5362 for assistance.
-
Page 2: Component List
Component List LABEL PICTURE DESCRIPTION Table Top Extension Panel Stretcher 1 Stretcher 2 Hardware List LABEL PICTURE DESCRIPTION Hanger Bolt Ø8 x 80mm M8 x 7mm D Washer 29 x 15 x 8mm Long Bolt M8 x 90mm Short Bolt M8 x 60mm Spring Washer M8 x 14mm... -
Page 3: Assembly Preparation
Assemble on a clean non-marring surface (such as the product’s packing foam). Do not discard any packaging until the product has been fully assembled. In case of missing parts, please contact your nearest World Market store or call our customer service call center at 1-877-967-5362. -
Page 4: Assembly Steps
Assembly Steps Step 1 (H-5) Short Bolt x 2 (H-4) Long Bolt x 2 (H-6) Spring Washer x 4 (H-7) Flat Washer x 4 (T-2) Allen Key x1 Make sure Bolt are fully tightened as shown 1. Using a second person to assist you, place Table Top (A) upside down onto a padded, non-marring surface. - Page 5 Assembly Steps Step 2 (H-1) Hanger Bolt x 2 Make sure Hanger Bolt are fully as shown. Insert Hanger Bolt (H-1) into both Leg (C) assemblies as shown and tighten by hand. Note: DO NOT use any tools to tighten Hanger Bolt (H-1). Step 3 (H-3) D Washer x 2 (H-6) Spring Washer x 2...
- Page 6 Assembly Steps Step 4 (H-4) Long Bolt x 8 (H-6) Spring Washer x 8 (H-7) Flat Washer x 8 (T-2) Allen Key x 1 Make sure Bolt are fully tightened as shown 1. Secure both Leg (B) assemblies to Table Top (A) by using Long Bolts (H-4), Spring Washers (H-6) and Flat Washers (H-7) with Allen Key (T-2), stacking the hardware in the order as shown.
- Page 7 Assembly Steps Step 6 Open the latches on the underside of ends of the table. Pull end rails out and place leaf extensions as shown. After extension panel is inserted close and turn latches to lock in place. NOTE STICKER UNDER TABLE Note: Do not lift table by ends.
- Page 8 Warnings All products sold at World Market are not for commercial use and are intended for residential use only. Care & Maintenance DO NOT put hot items directly on furniture surface. DO NOT clean furniture with harsh cleansers or polish.
- Page 9 Customer Service Call Center, Toll Free at 877-967-5362. For valid warranty claims, World Market will repair or replace the product, or offer a full or par al credit, in the sole discre on of World Market. This LIMITED ONE-YEAR WARRANTY gives you specific legal rights and you may also have other rights which vary from state to state.
