Summary of Contents for XINGYI CG-580

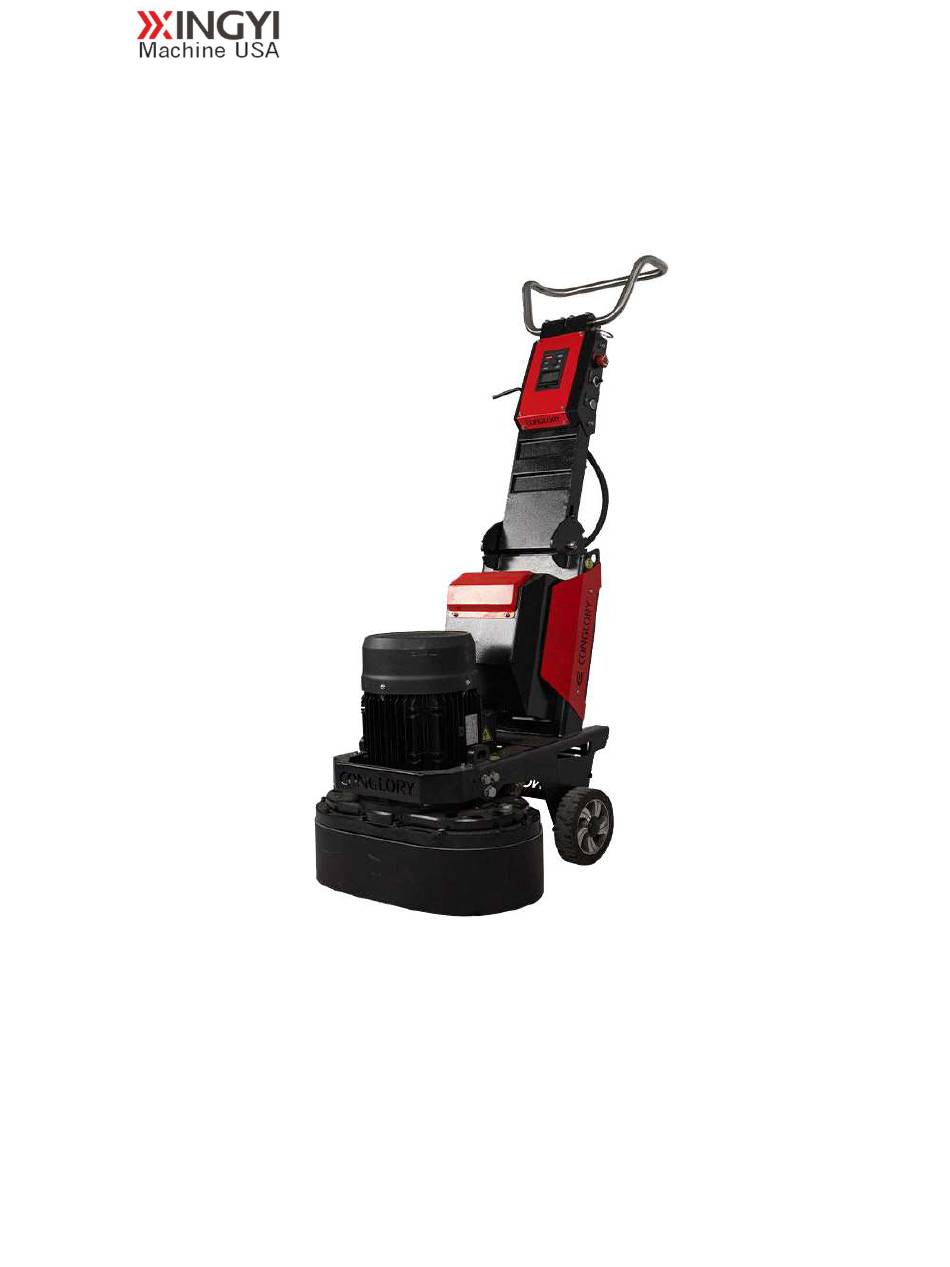

- Page 1 Xingyi Machine USA LLC. xingyimachineusa.com / (425)231-6773 Manual for CG-580 Floor Grinder...
- Page 2 We make every effort to make this manual as complete and accurate as possible, and we are not responsible for any errors or loss of information. Xingyi reserves the right to change the instructions in this manual without prior notice.
-
Page 3: Machine Name Plate
1.7 Warranty items This warranty covers only manufacturing defects. Xingyi does not assume damage in the transport, unpacking or operation. The manufacturer is not responsible for any damage or defects caused by improper use, corrosion or use of specifications beyond the noted specifications. -
Page 4: Safety Instructions
Any machine parts that need to be changed must be provided by XINGYI. XINGYI machines only can be used in the way of XINGYI recommended. And they only can be used for commercial purposes. Anyone who uses a machine should know its function, the location of the emergency stop. - Page 5 8. Keep body, jewelry or loose clothing away from moving machine parts. If not, may cause bodily injury. 9. Random modification of the machine is not allowed. Only XINGYI accessories can be used for maintenance and modification. 10. Do not operate the machine outside on rainy or foggy days.
-
Page 6: Machine Description
When dry grinding, to prevent dust from being exposed to air, posing a threat to the health of the operator and nearby people, make sure that the vacuum cleaner is connected to grinder (preferably equipped with a vacuum cleaner manufactured by Xingyi) Due to inhalation of dust... -
Page 7: Parts Description
The machine can use different Xingyi abrasive. Due to the different concrete materials, the abrasive discs used in grinding are also different. - Page 8 3.3 Swing lever assembly 3.3.1 Overview 1. Operation handle: Where people put their hands when operating the machine. 2. Display screen: display some parameters, such as voltage, current, motor speed, overload fault prompt, etc. 3. Swing part adjusting handle: use the handle to adjust the angle of the swing part, and there will be a corresponding position in the corresponding working state.
- Page 9 3.3.2 Handle The adjusting pin on the handle adjusts the handle in different positions by locating different round hole positions to meet the different needs of the user. Hold the armrest in one hand, pull out the adjusting pin in the other hand, rotate to the right position, then release the adjusting pin.
- Page 10 realize conversion of the machine placement mode in different states. Hold the handle tightly with one hand to support the swing lever, the other hand tightens the swing level adjusting handle and press down the adjustment handle, rotate according to the hole location on sector plate, and release the adjusting handle when it reaches required position.
- Page 11 4. Machine operating 4.1 Overview The following part mainly describes the grinder in different positions, the main operation of the grinder and how to install grinding abrasive. Note: 1. Grinders can only be used or repaired by personnel who have received the necessary theoretical and practical training and have carefully read the user manual.
- Page 12 4.2.2 Machine package position Adjust the position of handle and swing lever to the most suitable packaging position.The minimum package size is as follows and the machine can be packaged according to its size.
- Page 13 4.2.3 Machine tilting position Adjust the handle and swing lever to the tilting position.
- Page 14 To put the machine down, you need to hold the handles tightly with both hands. Place your feet on the weighting iron lever handle, balance the machine with your own gravity, and slowly lower it to protect the grinding head. When you put down the machine, pay attention to your own strength, and do your best to ensure the safety of the machine and person.
- Page 15 (1) Plug in the power cord (before this, make sure the emergency stop switch is pressed and all switches have been reset); When doing dry grinding, connect a vacuum cleaner (vacuum cleaners manufactured by Xingyi are equipped with camlocks, they can be quickly connected to the vacuum cleaner).
- Page 16 2. Stop the grinder: Press the emergency stop switch (remember to reset the potentiometer and forward and reverse switch, unplug the power plug).
- Page 17 Note: When stopping the device, it is recommended to unplug the power supply for safety reasons. The emergency stop switch can only be rotated and pressed down according to the direction of rotation above the emergency stop switch, NEVER PULL THE STOP BUTTON UPWARD.
- Page 18 Note: 1. Please ensure that the machine won’t tip forward before replacing the abrasive; 2. After the machine has been running for a period of time, the abrasive, grinding disc and the gear box will generate high temperature. Be careful to be burn when you replace the abrasive.
- Page 19 3. The power cord wrapped around the handle at least two laps. 4. Slightly hard to pull the power cord to ensure that the power cord has enough friction so that the power cord firmly fixed on the handle. Note: 1.
-
Page 20: Equipment Maintenance
Note: The above picture for machine model can be ignored. The grinding route and winding method are for reference only. 5. Equipment maintenance 5.1 Overview We recommend that the grinding machine be checked regularly to extend the service life. Note: During the maintenance and repair process, the power of the grinder must be disconnected. -
Page 21: Daily Check
5.2 Daily check 5.2.1 Check the switches Turn on the display screen and check the function of each button. Connect the power supply and detect the functions of the control panel such as emergency stop, machine startup, speed regulation, etc. Note: For safety reasons, it is strongly recommended to press the emergency stop switch when stopping the device, which would be safer. - Page 22 5.3 Cleaning 5.3.1 Clean switches Grinding machine works on site for a long time, and the switch will inevitably run into the dust. For this reason, please check switch after grinding, to see whether the part is clogged by dust. Otherwise, it may cause the switch failure. 5.3.2 Clean the grinding disc cover Remove the vacuum hose connector, use a flashlight to illuminate, and use a brush to clean the dust of the vacuum hose.
- Page 23 5.3.3 Clean the grinding plate Tilt the machine and use a cross screwdriver to remove the pads, and use shovel to remove dust. If you do not clean up in time, it is possible to make the pads disconnected, and pads fly out when grinding, causing damage to the machine and threaten personal safety.
-
Page 24: Overload Protection
10-30 minutes (depending on the motor temperature), and then restart the machine. 5.5 Maintenance Any repairs must be performed by Xingyi Service Center training service personnel and use original Xingyi accessories. If your machine needs repair, please contact with your retailer. -
Page 25: Frequently Asked Questions And Solutions
There are not enough diamonds number diamonds control or the motor current pads under the device or using recommended Xingyi reduce is consumed wrong diamonds workforce on the grinder and operator Diamond pads may not be Properly install diamonds with the same... -
Page 26: Technical Data
7.Technical Data The table and picture show the technical data and dimensions of the grinder. CG580 Engine power Rated voltage 1Ph 220V 3Ph 220V 3Ph 240V Rated current Input hertz HZ 60 Inverter power Working width Diameter of grinding disk Grinding speed ... -
Page 27: Warranty
8. Warranty Xingyi does not bear the cost of machine damage caused by improper transportation, unpacking and improper use. Local distributors may be subject to specific warranty terms, please contact with your local distributor for specific warranty terms.
