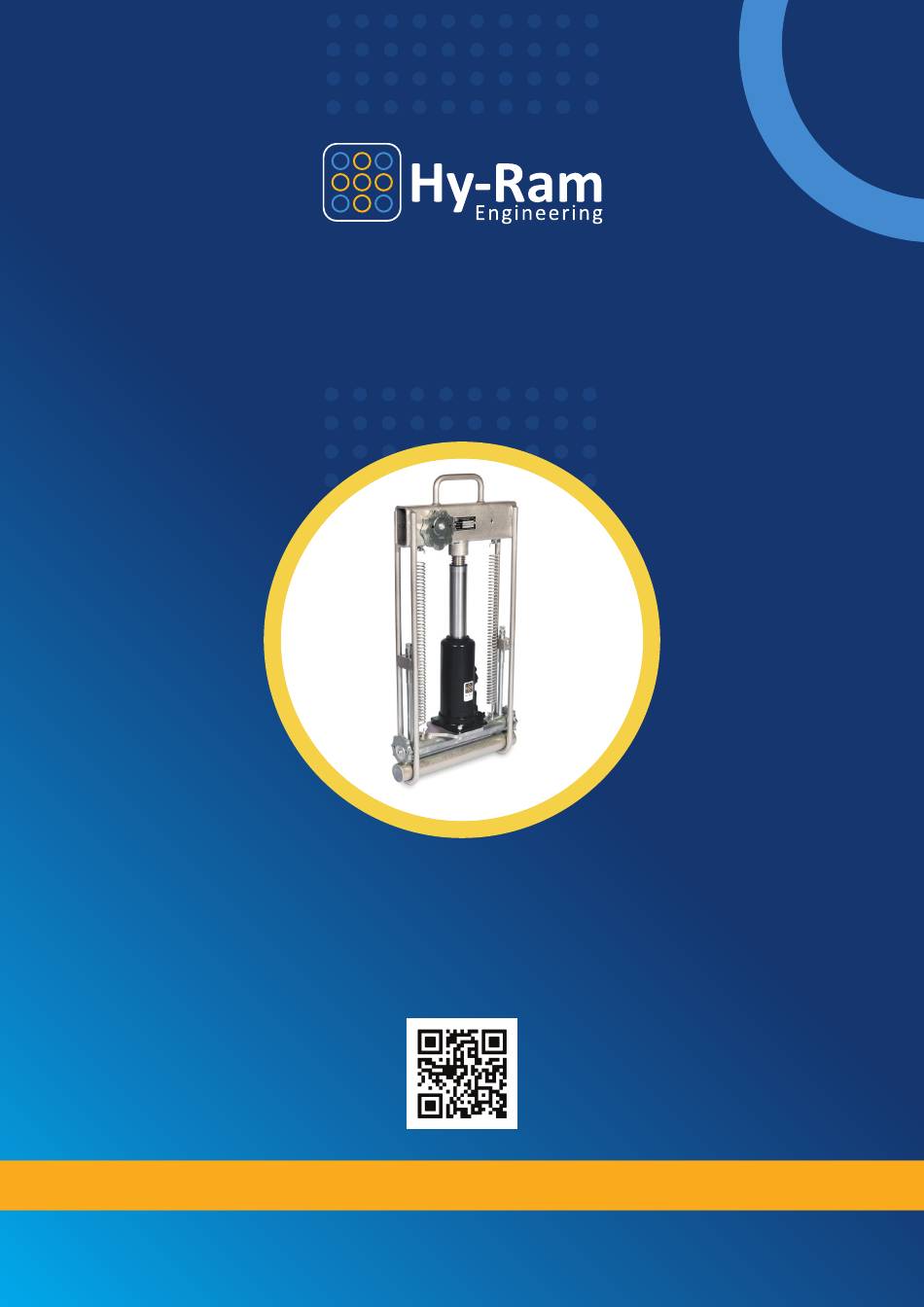

- Page 1 User Manual, Operating Instructions and Specifications SOU180 Hydraulic Squeeze Off Unit for PE pipe Pipe Range: 63 – 180mm PE PIPE SQUEEZE OFF • • • • INNOVATION DESIGN MANUFACTURE SUPPLY...
-
Page 2: Table Of Contents
INDEX. Model photograph General description Safety instructions Instructions for use Schematic parts drawings Parts list and product codes Specifications Warranty information Certificate of Calibration Certificate of Conformity SOU180 Instruction Booklet - 220713 Page 2... -
Page 3: Model Photograph
Pipe Range: 63-180mm SDR11, 17.6 & 21 SOU180 Instruction Booklet - 220713 Page 3... -
Page 4: General Description
Hy-ram 180mm squeeze off tool. General description. The Hy-ram SOU180 Squeeze Tool is designed in order that it can be used quickly and easily to stop the water/gas flow in PE pipe. It has an integral hydraulic jack enabling a maximum squeeze off force of 15 tonnes. -
Page 5: Safety Instructions
5. Operatives should wear eye protection, gloves, safety headwear and footwear when using this equipment. 6. A single squeeze tool cannot be guaranteed to provide 100% closure, where required operators are advised to consider using more than one squeeze tool. SOU180 Instruction Booklet - 220713 Page 5... -
Page 6: Instructions For Use
13. Allow the section of squeezed pipe to reform to its original shape; this may take several hours. Check relevant specification with regard post-squeeze requirements (i.e. the requirement for the use of re-rounding tools etc…) SOU180 Instruction Booklet - 220713 Page 6... - Page 7 180 SOU Frame Return Springs Jack Handle Lock Off Bars Safety Screw Mounting Blocks Pipe Stops Hydraulic Jack Bottom Beam Release Valve Jack Pressure Pump SOU180 Instruction Booklet - 220713 Page 7...
- Page 8 4. Clean and lubricate screw threads at regular intervals. 5. Check oil level with unit in an upright position. Fill through filler hole in side of Jack cylinder. Fill level with filler hole. SOU180 Instruction Booklet - 220713 Page 8...
-
Page 9: Schematic Parts Drawings
Typical SOU180 Layout SOU180 Instruction Booklet - 220713 Page 9... -
Page 10: Parts List And Product Codes
SOU180 SQUEEZE OFF UNIT PARTS LIST ITEM REQ'D PART NO. DESCRIPTION D16323 SQUEEZE OFF TOOL LOAD FRAME E14405 MIDDLE BEAM STOP – AS REQUIRED TO SUIT CUSTOMER ---- 023-000038 BOTTOM BEAM E12098 PLATE 652-000023 BOTTLE JACK 15 TON 171-000024 JACK HANDLE (TUBULAR HANDLE) 760-000027 REPAIR WASHER 3/8"... -
Page 11: Specifications
Pipe diameter 63mm to 180mm Wall thickness SDR11 to SDR21 Design Specification: Hy-ram Engineering Co. Ltd have designed and manufactured this unit to meet the requirements of National Grid Gas Industry Standards GIS/PL2-7:2006 Part 7: Squeeze-off tools and equipment. SOU180 Instruction Booklet - 220713... -
Page 12: Warranty Information
Warranty Information Extent of Warranty (a) Subject to clauses 2 and 3, Hy-ram Engineering Co. Ltd warrants to the end-user customer that its products will be free from defects in materials and workmanship, for six months after the date of purchase by the end-user customer, subject to providing proof of purchase. - Page 13 (vi) Faulty pipe. Limitations of Warranty. (a) Hy-ram Engineering Co. Ltd does not warrant the operation of any product to be uninterrupted or error free. (b) Hy-ram Engineering Co. Ltd makes no other warranty of any kind, whether express or implied, with respect to its products. Hy-ram Engineering Co.
-
Page 14: Certificate Of Calibration
Essential Health and Safety Requirements. When a Hy-ram SOU180 has reached the end of its useful working life and cannot be refurbished it must be disposed of via licensed waste disposal facility. -
Page 15: Certificate Of Conformity
Hy-Ram Type: SOU180 Serial number: ___________ Year of construction: __________ Manufactured by: Hy-Ram Engineering Co Ltd. Pelham Street Mansfield Nottinghamshire NG18 2EY This machinery has been designed and manufactured in accordance with the following transposed harmonised European standards. BS EN ISO 12100:2010 Safety of Machinery - General principles for design. Risk assessment and risk reduction. - Page 16 For Sales, Hire and Repair support contact our admin team or scan the QR code for further details www.hyram.com +44 (0) 1623 422982 enquiries@hyram.com Head Office Mansfield (Hire & Repair) Bury (Hire & Repair) Enfield (Hire & Repair) Pelham Street Unit 5 Unit 18 Unit 2...
