- Page 1 User Manual, Operating Instructions and Specifications SOU400 Auto Squeeze Off Tool Diameter Size Range: 250 – 400mm PE PIPE SQUEEZE OFF • • • • INNOVATION DESIGN MANUFACTURE SUPPLY...
-
Page 2: Product Description
PRODUCT DESCRIPTION The Hy-Ram SOU400 Squeeze Off Unit has the facility to enable four simultaneous Squeeze points to be executed. The ‘A’ Frame assembly provides the hydraulic power to squeeze the pipe to the optimum compression, (squeeze gap set by pipe stop), then the Top and Bottom Beams are very simply mechanically locked together. -
Page 3: Component Weights
This information should be made available to all persons who are required to work with or on the equipment. If in any doubt as to any aspects of this equipment, the application of this equipment or the instructions in this handbook, you should contact Hy-Ram Engineering Co Ltd. for clarification or advice. A. INTRODUCTION This manual explains about the machinery and how to use and maintain it. - Page 4 WARNING Users are responsible for ensuring compliance with the Noise at Work Regulations. Equipment: 1 x Power Unit; Pneumatic Input/Hydraulic Output c/w Hydraulic Hoses. 2 x Hydraulic Cylinders. 1 x Top Beam. 1 x Bottom Beam. 1 x Pair of stops diameter/SDR to suit pipe to be squeezed. NOTE When Squeezing 250mm SDR 17.6 Pipe NO Stops are required but the red Guide Tube Sleeves are required to be in place.
- Page 5 1.2 The Rams have to be opened before you can start the operation. Make sure both the Cylinders are fully open. 1.3 Centrally position Bottom Beam underneath the pipe to be squeezed off at the desired squeeze off point. 1.4 Identify the pipe diameter and SDR and position pipe stops (C1, C2) on the bottom beam.
- Page 6 3.1 Turn the vent valve to the closed position, hydraulic power is now available at the directional valve. 3.2 Turn the directional valve to the ‘Release Position’. This will effectively open the cylinders and ensure that they are fully extended and synchronised prior to squeezing off. (Notice that when the Hydraulic Cylinders reach the ends of their stroke, i.e.
- Page 7 Position squeeze off stops onto bottom beam and if required the addition or removal of the guide tube sleeve on the top beam for the diameter! SDR combination of the pipe to be squeezed. The squeeze off stops and the guide tube sleeves set the final squeeze gap between the beams and ensure the optimum compression of the pipe walls.
- Page 8 Prior to squeezing off ensure that the pipe is positioned centrally across the width of the squeeze bar. Once the pipe is fully squeezed, operate latch and mechanically lock top and bottom beam together. Page 8 of 16...
- Page 9 Once the top and bottom beams are mechanically locked, undo cylinder latches and extend cylinders to the fully open position. The cylinders can now be removed. Page 9 of 16...
- Page 10 Page 10 of 16...
-
Page 11: Maintenance
Hydraulic Power Unit: Pneumatic Input / Hydraulic Output. NOTE Hydraulic fluid 32cS use only clean new oil. The reservoir should be ¾ full MAINTENANCE There are no internal wearing parts for the user to change. DAILY CHECKS The Oil level. Condition of the hoses. - Page 12 Page 12 of 16...
-
Page 13: Ec Declaration Of Conformity
Machine description: Squeeze Off Unit Make: Hy-Ram Type: SOU400 Serial number: ______________ Year of construction: _____________ Manufactured by: Hy-Ram Engineering Co Ltd. Pelham Street Mansfield Nottinghamshire NG18 2EY This machinery has been designed and manufactured in accordance with the following transposed harmonised European standards. -
Page 14: Certificate Of Calibration
Warranty Information. Extent of Warranty. Hy-Ram Engineering Co Ltd warrants to the end-user customer that its products will be free from defects in materials and workmanship, for six months after the date of purchase by the end-user customer, subject to providing proof of purchase. -
Page 15: Limitations Of Warranty
Pre-conditions for Warranty Application. Hy-Ram Engineering Co Ltd’ warranty covers only those defects which arise as a result of normal use of the product, and this warranty shall only apply in the following circumstances: (a) All the instructions contained in the operating manual have been complied with (b) And none of the following apply: Improper or inadequate maintenance;... - Page 16 ................... Name & address ................... Of purchaser ..................................Type of tool ................... Serial number ................... For Service and repair please contact: Hy-Ram Mansfield Pelham Street Mansfield Nottinghamshire NG18 2EY Tel: 01623 422982 Fax: 01623 661022 Page 16 of 16...

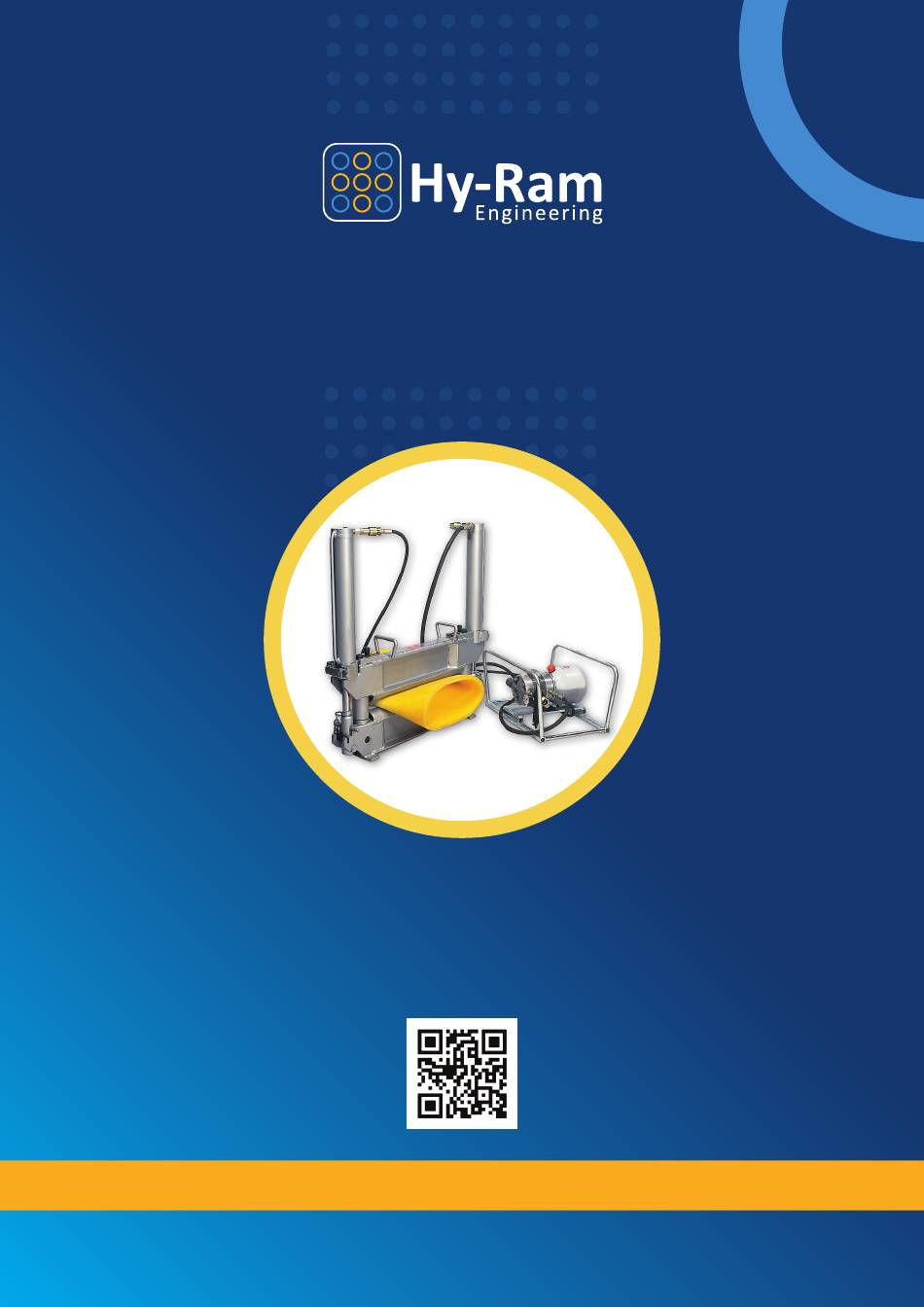

- Page 17 For Sales, Hire and Repair support contact our admin team or scan the QR code for further details www.hyram.com +44 (0) 1623 422982 enquiries@hyram.com Head Office Mansfield (Hire & Repair) Bury (Hire & Repair) Enfield (Hire & Repair) Pelham Street Unit 5 Unit 18 Unit 2...
