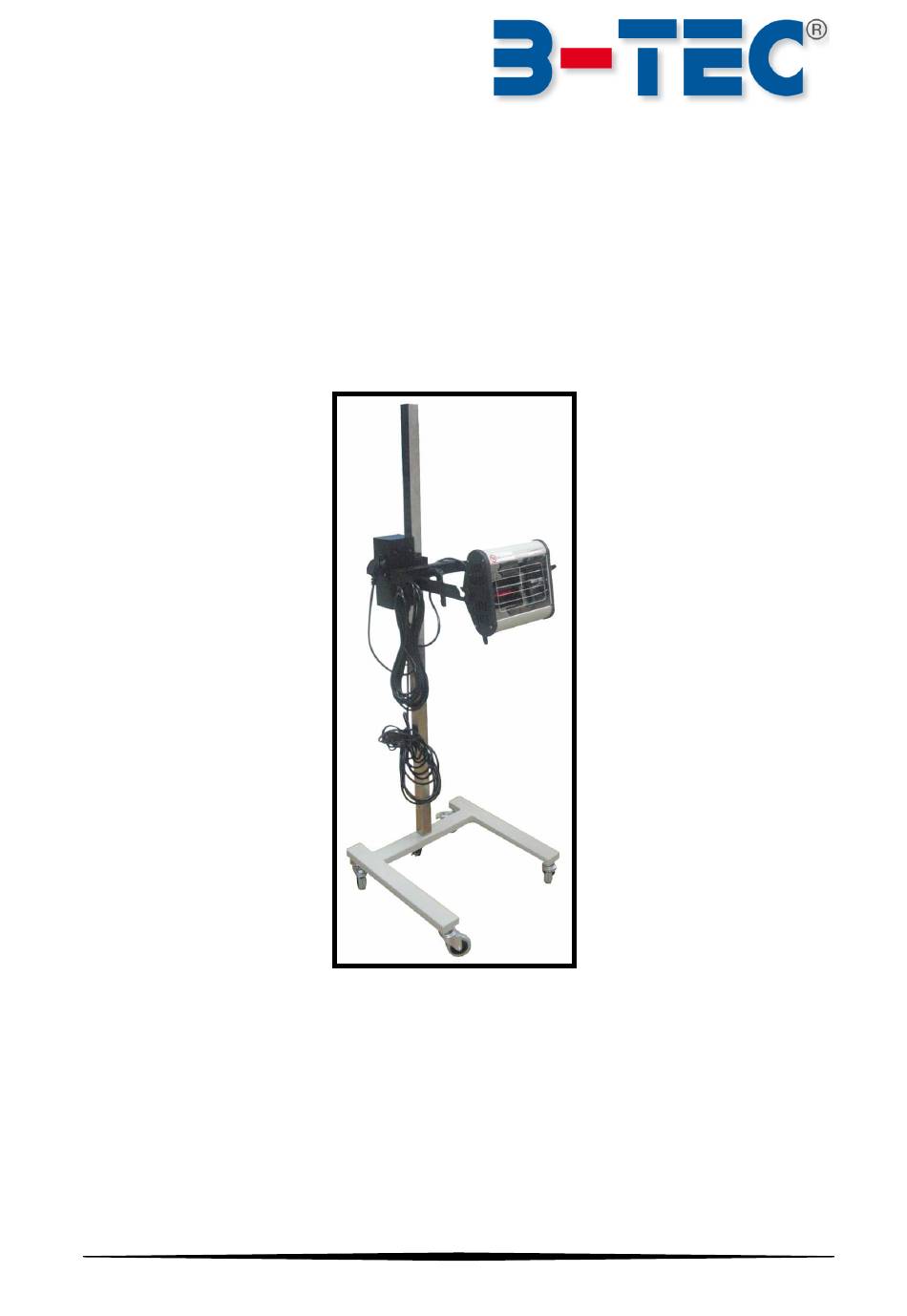

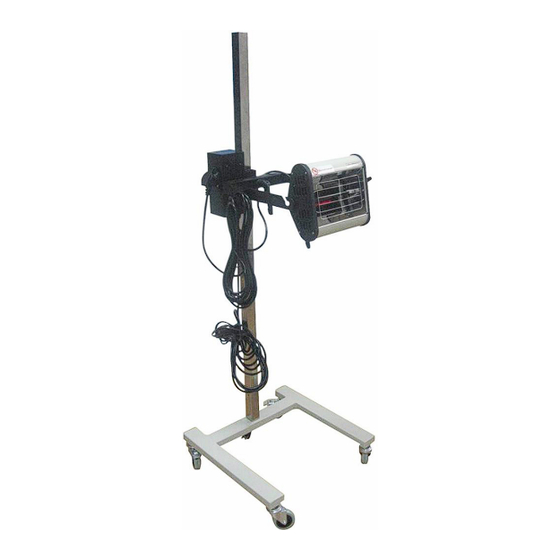

- Page 1 Short Wave Infrared Dryer User Manual for Short Wave Infrared Paint Curing Equipment – Translation of German Original Document – B-TEC GmbH • Zunftweg 6-8 • D-31303 Burgdorf / Ehlershausen • Tel.: +49(0)5085-97100-0 Fax: +49(0)5085-97100-30 • Email: info@btecsystems.de • www.btecsystems.de...
- Page 2 Responsibility for technical documents: Michael Bellroth, Christian Bellroth Address: Refer to manufacturer´s address Place, date, signature of manufacturer: Hannover, 02.01.2020 ................. Function of the signer: Managing director B-TEC GmbH • Zunftweg 6-8 • D-31303 Burgdorf / Ehlershausen • Tel.: +49(0)5085-97100-0 Fax: +49(0)5085-97100-30 • Email: info@btecsystems.de • www.btecsystems.de...
-
Page 3: Table Of Contents
5.1. Curing Times ..........................7 Maintenance and Care ........................8 6.1. Replacing Emitter Tube ......................9 Troubleshooting ..........................10 V2.1 B-TEC GmbH • Zunftweg 6-8 • D-31303 Burgdorf / Ehlershausen • Tel.: +49(0)5085-97100-0 Fax: +49(0)5085-97100-30 • Email: info@btecsystems.de • www.btecsystems.de... -
Page 4: Important Information
1. Important Information We thank you for your trust you gave to us by purchasing this B-TEC device. On the type plate at your device you can find the exact type designation and serial-number of your infrared emitter to ensure an uncomplicated service and shipment of spare parts. -
Page 5: Safety Requirements
B-TEC warrants its products to be free from defects in materials and workmanship, for a period of 24 months on a one shift basis. In case of exceptional usage such as multiple-shift operation, the statutory warranty is shortened to 12 months (two-shift operation) or 8 months (three-shift operation). The period starts from the date the device is shipped from the factory. -
Page 6: Use
2-Stage drying (Flashlight / Continuous). Flexible 360° maneuvering or portable for using while holding with one hand. The height is adjustable from 15 cm to 160 cm. Curing time can be set via electronic timer. IR-B01 Page 3... -
Page 7: Technical Information
Dimension (W x H x L) 700 x 1550 x 580 mm *Max. overall height with cassettes: 1600 mm 3.2. Wiring Diagram Main Switch 230V Figure 3-1 – Wiring Diagram – Technical changes and errors reserved. All pictures similar – IR-B01 Page 4... -
Page 8: Spare Parts
Protective grid On request Column On request Big reflector plate On request U-Shape support On request Cover plate with handle On request IR-B01 control unit with 10000165 timer, mainboard and 10000190 Side cover of emitter holder Mainboard 10000147 On/Off Switch 10001119... -
Page 9: Installation
Don’t operate by using one hand only to avoid any damage to the lamp tube due to dropping. – Technical changes and errors reserved. All pictures similar – IR-B01 Page 6... -
Page 10: Operating Instructions
Material / Paint type Total curing time in minutes Putty Filler Primer Water base Base coat 6-10 Top coat 8-12 Clear coat 7-12 Filler on plastic 9-12 Top coat on plastic 17-19 Clear coat on plastic 17-19 IR-B01 Page 7... -
Page 11: Maintenance And Care
For replacing an emitter tube, ask the repair service center or a technician to do so. If an emitter tube does not start working, it may result from a loose socket/cable. Switch off the device and check the sockets. IR-B01 Page 8... -
Page 12: Replacing Emitter Tube
Use a piece of soft cloth or cotton to clean the reflector plate and the tube with alcohol. Cleaning must be done after the device is disconnected with the power and cooled down. Don’t start the device until the alcohol has evaporated, otherwise it may lead to ignition. IR-B01 Page 9... -
Page 13: Troubleshooting
Above specifications, drawings or diagrams are descriptive and subject to revision. If there are any discrepancies or changes, actual products shall prevail without otherwise notification. IR-B01 Page 10...
