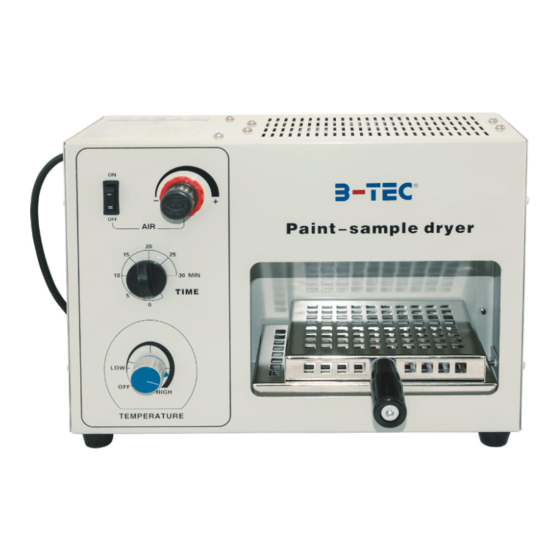

Operating Manual for Paint-Sample Dryer ST-01

Advertisement

Table of Contents
loading

Related Manuals for B-TEC ST-01

Summary of Contents for B-TEC ST-01

  • Page 1 Paint-Sample Dryer ST-01 Operating Manual for Paint-Sample Dryer ST-01...
  • Page 2 All of our manufactured or assembled parts conform to the listed regulations. If you change the machine without our explicit agreement, this declaration will be herewith invalidated. Product type: Paint-sample dryer Type designation: ST-01 Serial-no.: Construction year: 2015 The following harmonizing standards have been used:...

  • Page 3: Table Of Contents

    Table of Contents 1. Important Information ..........................1 1.1 Explanation of the Symbols ........................ 1 2. Technical Description of the Machine ...................... 2 2.1 Technical Parameters ......................... 2 3. Safety Regulations ............................ 3 3.1 Safety and Advisory Notes........................3 4. Installation ..............................4 5.

  • Page 4: Important Information

    1. Important Information Thank you for purchasing this B-TEC Systems infrared paint curing unit ST-01. Please note, the unit has a rating plate attached which includes the model and serial number. Should you ever need service or parts, please provide that information when calling B-TEC Systems or your distributor.

  • Page 5: Technical Description Of The Machine

    2. Technical Description of the Machine The machine "ST-01" is made for fast drying of paint-samples using infrared energy / heat and air movement. The duration and intensity of drying can be adjusted. The drying-time can be set by the timer and the temperature the infrared lamp produces can be determined by a heat controller.

  • Page 6: Safety Regulations

    3.1 Safety- and Advisory Notes  ST-01 Dryer is not explosion proof. Do not use it in a spray booth, mixing room or any volatile area.  Ensure that all necessary protection is worn (gloves, eye protection, airway protection, whole body protection).

  • Page 7: Installation

    4. Installation The unit can be used either wall mounted or on a suitable bench / flat surface. At the back of the ST-01, there are two holes a distance of 10.2“ inches apart for a wall mounting. To avoid overheating and fire, do not mount the unit on a wooden or flammable wall.

  • Page 8: Operating Instructions

    5. Operating Instructions Please follow the suggested procedure Air Flow adjustment Air switch Painting Timer Temperature Drying Tray A. Spray out your test card as normal, in the spray booth. B. Place the test card in the drying tray C. Set up your desired drying sequence For waterborne base coat 1.

  • Page 9: Care And Maintenance

    Do not start the emitter / tube until the solvent has evaporated, otherwise it may lead to a fire / explosion.  For replacement emitters / tubes, contact your distributor or the B-TEC Systems service center. 6.1 Replacement of Emitter Lamp Tube 1. Disconnect both the electric and air supply from the unit.

  • Page 10: Wiring Diagram

    7. Wiring Diagram Air knob Air switch ~120V 0-30 Min ~230V Temperature TIMER adjustment 300W ---------------------------------------------------------------------------------------------- B-Tec Systems reserve the right to make technical changes without notice – B-TEC USA, LLC (480) 621-5304 www.bteccleaners.com Page 7...
