Nemco Panini Pro 6900 Series Programming Manual

1. Using the USB provided, load the USB into your computer and open the .CSV file in the
"1150APP" folder. Not using the USB provided could result in failure to upload the
program(See the image below)
2. With the "1150APP" folder opened you will now need to click on the
8-Button General Market Menu. This will open an Excel Spreadsheet. The image used
in this instruction sheet is color coded to help you better understand how to use the
spreadsheet. The file you open will not be color coded. (See image below)
A.
B.
C.
D.
E.
Section A. Set the Upper and Lower Heater Plates to your desired temperature here. The
temperature cannot exceed 450°. These temperatures are measured in Fahrenheit, as all
temperatures on this spreadsheet are.
Section B. This grill has a "Standby" mode built in. These settings can be changed as needed
with this spreadsheet. The "Standby" mode simply reduces the heat to the set temperature
after the allotted time has passed. Enter the time in the field specified – this time is measured
in minutes. This time can be set from 1-240. The Upper and Lower Heater Plate temperatures
can also be adjusted here.

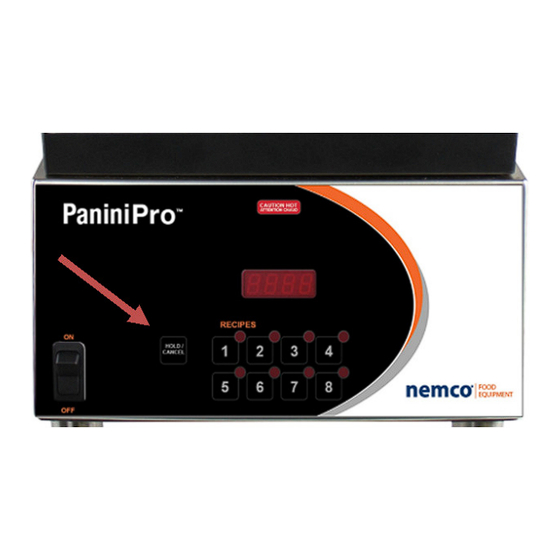

Section C. Activate your Hold Cancel Button on the front of the press here. With this button
On it will allow you to open the lid in the middle of the cook cycle.
Section D. Each menu can be programmed independently. Use this section to set the
temperature of the Upper and Lower Heater Plates. Programing the temperatures differently for
each Menu could result in the unit having to Preheat.
Section E. Each menu has 15 time stages. Each stage can be set for a different time period.
This time is measured in seconds. For each stage the microwaves can be independently
controlled. Enter "On" or "Off" into each column. Microwaves can run concurrently,
independently, or none at all.
NEMCO FOOD EQUIPMENT
Phone: (419) 542-7751
Programing the General Market Menu
6900-XXX-XX
Panini Pro
Preheat Temperatures Upper
PHT 400
Standby Time/Temps 1 - 240 Minutes
SBY 240
Manual Cancel Mode On / Off
MCM Off
Menu 1 Temperatures Upper
1TP 420
Menu 1 Stages Time (Seconds)
1S1 10
1S2 10
1S3 10
1S4 10
1S5 10
1S6 10
1S7 15
1S8 0
1S9 0
1S10 0
1S11 0
1S12 0
1S13 0
1S14 0
1S15 0
301 Meuse Argonne, Hicksville, OH 43526
Fax: (419) 542-6690
www.nemcofoodequip.com
Lower
390
Upper Temp Lower Temp
350 350
Lower
410
Micro-A On/Off Micro-B On/Off
Off Off
On On
Off On
On Off
Off On
On Off
Off Off
Off On
On Off
Off On
On Off
Off On
On Off
Off On
On Off
Toll free: 1-800-782-6761
