- Page 1 WelcomeHive Pro 2 One Button Doorphone Entry Panel User manual Register your product on www.philips.com/register...
-
Page 2: Table Of Contents
Contents 1. Safety instructions................. 2 2. Kit contents .................... 3 3. General information ................4 4. Component names ................4 5. Product installation ................6 5.1. General wiring diagram............... 6 5.2. Entry panel wiring................. 7 5.3. DIN rail power supply wiring ............9 6. Configuration before final installation...... - Page 3 8. Use......................15 8.1. Pairing user badges ............... 15 8.2. Deleting user badges ..............16 8.3. Using name holders ..............16 8.4. Operation ..................16 9. Technical features ................. 17 10. FAQ - Common problems and solutions ........17 11. Technical support - Warranty ............19 12. Safety measures ................... 20 13.
-
Page 4: Safety Instructions
• If you are installing this product for someone else, remember to leave the manual or a copy of it with the end user. • This product is designed exclusively to work with Philips WelcomeHive Pro2 monitors, reference 531065. • The electrical installation must comply with current legislation and be protected by suitable devices. -
Page 5: Kit Contents
1. Entry panel 5. Snap-in terminal 6. RFID administration 7. RFID opening badges block for DIN rail power badge (blue) x1 (grey) x2 supply 8. Key for unscrewing the entry panel from the rear flush-mounting box Philips - WelcomeHive Pro 2... -
Page 6: General Information

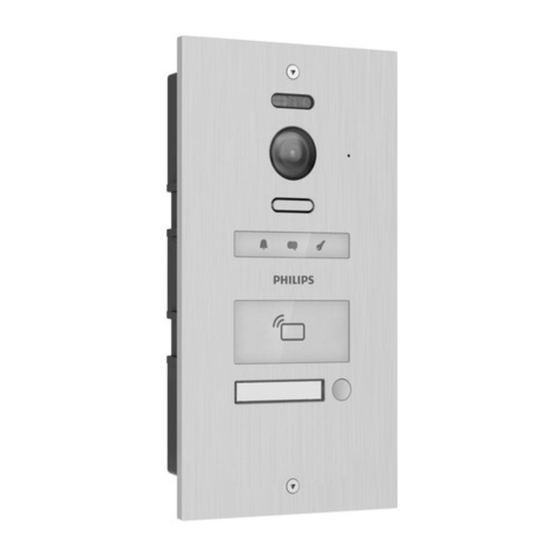

3. General information This entry panel is designed for use with monitors in the WelcomeHive Pro 2 range. Ideal for professional installations, it features a flush-mounted design, a machined aluminium front panel and a single DIN rail power supply unit and offers top-of-the-range features such as high image resolution, visitor memory, the option of adding a second screen per home, and a digital BUS system that reduces the length of wires required for installation. - Page 7 (do not modify) RFID badge pairing button DIN rail power supply: Mains power supply (pry to remove the cover) Removable terminal block for connecting entry panel and monitor(s). (It can be supplied Rail release with fasteners) lever Philips - WelcomeHive Pro 2...
-
Page 8: Product Installation
Each button has a corresponding monitor; additional monitors are optional. Please note: the video doorphone uses digital BUS technology, so the monitors must be connected one after the other for optimum results: 230 Vac 50 Hz 230 Vac 50 Hz Philips - WelcomeHive Pro 2... -
Page 9: Entry Panel Wiring
• EXT AND GND TERMINALS: this input is for an exit button to be installed inside the property to trigger the opening of the electric strike plate. The exit button must be NO type: the contact closes when it is used to open the entry point. Philips - WelcomeHive Pro 2... - Page 10 (Normally closed device: the emergency power supply to prevent accidental opening in the event of a power cut is not shown) • BUS1 AND BUS2 TERMINALS: connect to the DIN rail power supply provided on the BUS(DS) terminals. No particular polarity is required. Philips - WelcomeHive Pro 2...
-
Page 11: Din Rail Power Supply Wiring
2 shielded twisted pairs 0 to 120 m Caution: the length to be taken into account when determining the type of wires is between the DIN rail power supply and the monitor furthest away from the system. Philips - WelcomeHive Pro 2... -
Page 12: Configuration Before Final Installation
• If you are using a fail-safe electric strike plate or a magnetic lock: move the jumper on the 2 left- hand pins to the NC position a. Entry panel configuration DIP switches: The DIP switches are numbered from 1 to 4. Philips - WelcomeHive Pro 2... - Page 13 • Wave the master badge (blue) in front of the detection cell on the front of the entry panel. Once all settings have been confi gured, you can install the entry panel and lock the security screws on the front using the tool supplied. Philips - WelcomeHive Pro 2...
-
Page 14: Monitor(S) (Not Supplied)
• DIP switch no. 7: Set to down (OFF position): • DIP switch no. 8: Closes the circuit: - If one pair of wires arrives at the monitor and another leaves for another monitor, set to down: Philips - WelcomeHive Pro 2... -
Page 15: Installation
You can use the screws supplied to fi x the fl ush-mounting box inside the pillar recess. 72 mm There are openings in the bottom of the fl ush-mounting box for wires coming out of the wall. Philips - WelcomeHive Pro 2... -
Page 16: Din Rail Power Supply
- The DIN rail power supply is not designed for outdoor installation. It must not be exposed to the elements. The DIN rail power supply can be installed either on the rail of an existing electrical box or using the rail section supplied. Philips - WelcomeHive Pro 2... -
Page 17: Monitor(S) (Not Included)
If you wave a grey badge in front of the entry panel and it beeps three times without the indicator lighting up, this means that the badge has not been registered by the entry panel. Philips - WelcomeHive Pro 2... -
Page 18: Deleting User Badges
- If a monitor displays the entry panel image in low ambient light conditions, the night vision light at the top of the entry panel comes on while the video is being displayed. Please refer to the monitors’ user manual for more information on how they work. Philips - WelcomeHive Pro 2... -
Page 19: Technical Features
9. Technical features Model 1-Name Philips WelcomeHive Pro 2 DES 9801 VDP entry panel Power supply DIN rail transformer 100-240 Vac 50 Hz/32 Vdc 1.5 A supplied Assembly Flush-mounted in wall/pillar Video CMOS 900TVL Camera Colour night vision with ambient-light-controlled lighting Additional 12 V electric emission strike plate output, max. current 1.5 A... - Page 20 • Monitor volume too • Adjust the monitor volume in the quiet appropriate menus Refer to the monitor’s instructions for more information Philips - WelcomeHive Pro 2...
-
Page 21: Technical Support - Warranty
Do not use any tool that can conduct voltage (wire brush, sharp tool, etc.) for cleaning. The receipt or invoice is proof of purchase date. Contacts and opening hours of our technical support centres are available if necessary on the website www.philips.com. Philips - WelcomeHive Pro 2... -
Page 22: Safety Measures
- The electrical socket must be close to the device and must be easily accessible. - An easily accessible cut-off system (switch disconnector, circuit breaker, equivalent system) must be integrated into the building’s wiring system for equipment connected to the power grid. Philips - WelcomeHive Pro 2... -
Page 23: Fcc/Ce Warning
• Redirect or move the receptor antenna. • Increase the distance between the equipment and the receptor. • Connect the equipment to a socket belonging to a different circuit from the one to which the receptor is connected. Philips - WelcomeHive Pro 2... -
Page 24: Declaration Of Conformity
WITH the RED directive AVIDSEN hereby declares that the equipment designated below: Philips WelcomeHive Pro 2 DES 9801 VDP entry panel Complies with the RED 2014/53/UE directive and that its conformity has been assessed pursuant to the applicable standards in force: •... - Page 25 ES - Corriente continua PT - Corrente contínua FR - Courant alternatif GB - Alternating Current D - Wechselstrom NL - Gelijkstroom PL - Prąd zmienny IT - Corrente alternata ES - Corriente alterna PT - Corrente alterna Philips - WelcomeHive Pro 2...
- Page 26 2024©Avidsen. All rights reserved. Philips and the Philips shield emblem are registered trademarks of Koninklijke Philips N.V. and are used under licence. This product was manufactured and is sold by AVIDSEN SAS, and AVIDSEN SAS is the sole guarantor of the product.
