Technical Support and E-Warranty Certificate
www.vevor.com/support

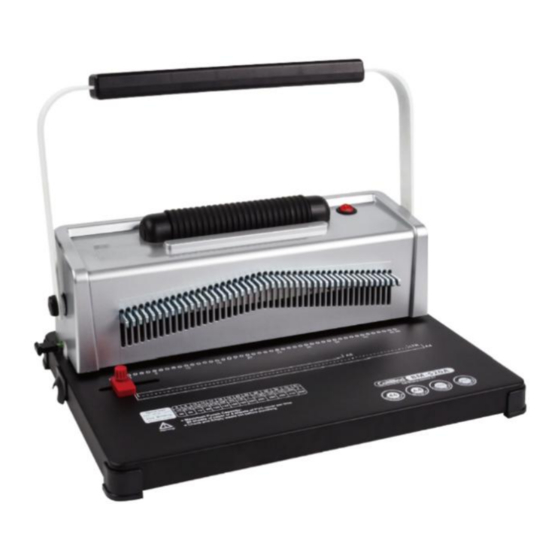

BINDING MACHINE
MODEL: S20A
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for VEVOR S20A
Summary of Contents for VEVOR S20A
- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support BINDING MACHINE MODEL: S20A We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us.
- Page 3 This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
- Page 4 Warning-To reduce the risk of injury, user must read instructions manual carefully. WARMING & ATTENTIONS Read this operation manual carefully before using. Keep the machine separately from children. Keep the machine away from fire and liquid. Put the machine on a stable and safe place in order to prevent if from falling or causing any injury to people or the machine itself.
-
Page 5: Technical Specifications
STRUCTURAL REPRESENTATION TECHNICAL SPECIFICATIONS 110V~120VAC 60Hz 6.75±10%W Rating(s): 220V~240VAC 50Hz 6.75±10%W Punching Capacity: 20 Sheets (A4 80g) Binding Capacity: 500 Sheets (A4) Adjustable Margin: 3/5/7 mm Number of Holes: 46 holes Square Hole Distance: 6.35mm Round Holes Size: Quantity of Movable Cutter: Paper Format: A4 paper or smaller sizes Machine Dimension:... -
Page 6: Parts List
PARTS LIST Parts Name Quantity PVC spiral coil 100 pcs Wire cutters 1 pc Blotting paper 1 pc Instructions 1 pc OPERATING GUIDE Place the machine on a steady and even place before using! For the first use, make a punch with blotting paper to suck up excess lube from the blade. -
Page 7: Maintenance
2. Binding Operation Choose the according to the thickness of the document. The spiral coil following form is for your reference to choose the proper spiral coil Spiral size Spiral size Max.Binding Spiral size Spiral size Max.Binding (mm) (inch) sheets (mm) (inch) -
Page 8: Problems And Solutions
PROBLEMS & SOLUTIONS Problems Reasons Solutions Paper scraps or other hard Clean up the rubbish with materials stay inside the 1.The lever couldn't hardboard pressed down paper cutter when punching Exceeding punching Operate according to the capacity manual The paper is lopsided when Take out the paper and inserting put in again... - Page 9 Manufacturer: Shanghaimuxinmuyeyouxiangongsi Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730 SHUNSHUN GmbH Römeräcker 9 Z2021,76351 Linkenheim-Hochstetten,Germany euvertreter@gmail.com +49 1727041930...
- Page 12 Technical Support and E-Warranty Certificate www.vevor.com/support...
