GR-FXM38EG/EK,SXM48EG/EK/EA
SPECIFICATIONS
General
Format
Power source
Power consumption
Viewfinder on
LCD monitor* on
Video light**
* Applicable models only.
** GR-SXM58/SXM48/SX24 only.
Signal system
Video recording system
Luminance
Colour
Cassette
Tape speed
SP
LP
Recording time (max.)
SP
LP
Operating temperature
Operating humidity
Storage temperature
Weight
Dimensions
* Applicable models only.
Pickup
Lens
Viewfinder
White balance adjustment
LCD monitor
(Applicable models only)
Speaker
(Applicable models only)
SERVICE MANUAL

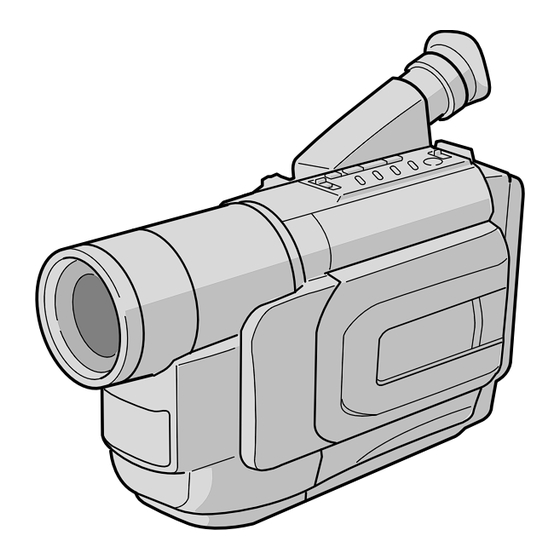

COMPACT VHS CAMCORDER
SXM67ED,SXM87ED
(The specifications shown pertain specifically to the model GR-SXM58EK/SXM48EK/FXM38EK/SX24EK/FX14EK)
Camcorder
: S-VHS (GR-SXM58/SXM48/SX24 only)/VHS PAL standard
: DC 11 V } (Using AC Adapter)
DC 6 V } (Using battery pack)
: 4.0 W (GR-SXM58/SXM48/FXM38 only)
3.7 W (GR-SX24/FX14 only)
: 4.5 W (GR-SXM58/SXM48/FXM38 only)
: 3.0 W
: PAL-type
: FM recording
: Converted sub-carrier direct recording Conforms to VHS
standard
:
/
cassette
: 23.39 mm/sec.
: 11.70 mm/sec.
: 60 minutes
: 120 minutes
(with EC-60 cassette)
: 0°C to 40°C
: 35% to 80%
: –20°C to 50°C
: Approx. 910 g (GR-SXM58/SXM48 only)
Approx. 900 g (GR-FXM38 only) Approx. 860 g (GR-SX24 only)
Approx. 850 g (GR-FX14 only)
: 200 mm x 112 mm x 118 mm (GR-SXM58/SXM48/FXM38 only)
200 mm x 112 mm x 115 mm (GR-SX24/FX14 only)
(with the LCD monitor* closed and with the viewfinder fully
tilted downward)
: 1/6" format CCD
: F1.6, f = 3.9 mm to 62.4 mm,
16:1 power zoom lens with auto iris and macro control, filter
diameter 40.5 mm
: Electronic viewfinder with 0.5" black/white CRT
: Auto/Manual adjustment
: 2.5" diagonally measured, LCD panel/TFT
active matrix system
: Monaural
This service manual is printed on 100% recycled paper.
Digitized in Heiloo the Netherlands
COPYRIGHT © 2001 VICTOR COMPANY OF JAPAN, LTD.
Connectors
Video (via Video output connector) : 1 V (p-p), 75 W unbalanced, analogue output
Audio (via Audio output connector) : 300 mV (rms), 1 kW analogue output
Digital
: ø3.5 mm, 4-pole, mini-head jack
(GR-SXM58 only)
S-Video
: Y : 1 V (p-p), 75 Ø, analogue output
C : 0.30 V (p-p), 75 Ø, analogue output
(GR-SXM58/SXM48/SX24 only)
AC Adapter
Power requirement
: AC 110 V — 240 V `, 50 Hz/60 Hz
Output
: DC 11 V } , 1 A
Optional Accessories
• Battery Packs BN-V12U, BN-V20U, BN-V400U
• Compact S-VHS (
) Cassettes SE-C45/30
• Compact VHS (
) Cassettes EC-60/45/30
• Active Carrying Bag CB-V7U
• Cassette Adapter C-P7U
Some accessories are not available in some areas. Please consult your nearest JVC
dealer for details on accessories and their availability.
Specifications shown are for SP mode unless otherwise indicated. E & O.E. Design and
specifications subject to change without notice.
10/30/2018
VHS
PAL
625
No. 86655
November 2001
Not for sale!
