Brother DCP-L1628 Quick Setup Manual

CHN-ENG
Version 0
EN

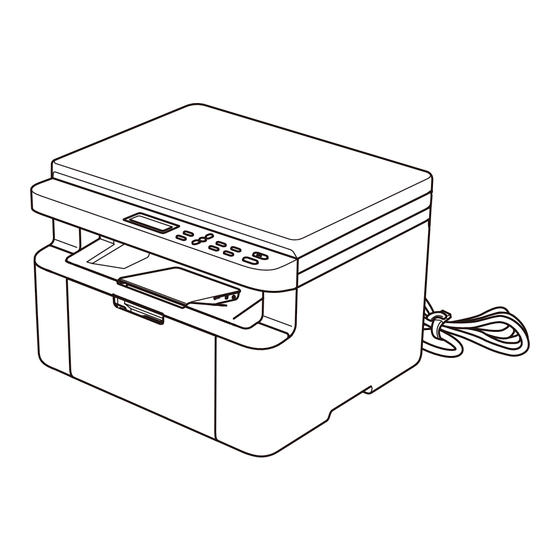

Unpack the machine and check the components
Remove the protective tape or film covering the machine and the supplies.
USB Interface Cable
1
Remove the packing materials and install the toner cartridge
Take out drum unit
2
Load paper in the paper tray
3
Connect the power cord and turn the machine on
Back
Quick Setup Guide
DCP-L1628 / DCP-L1638W / DCP-L1848W
Read the Product Safety Guide first, then read this Quick Setup Guide for the correct installation procedure.
Operation Videos:
www.95105369.com
Toner Cartridge A5 Paper Long Edge
Support
Quick Setup Guide Product Safety Guide
Toner cartridge
For the long edge of A5 paper
Front
Installation & Using Videos
Drum Unit
(Installed in the machine)
Make sure the printing
surface is face up.
Adjust the paper guides to fit the
NOTE:
• The available connection interfaces vary depending
on the model.
If you use a wired connection, you must purchase
the correct cable for the interface you want to use.
• USB cable
We recommend using a USB 2.0 cable
(Type A/B) that is no more than 2 metres long.
• Network cable (DCP-L1638W/DCP-L1848W)
Use a straight-through Category 5 (or greater)
twisted-pair cable.
• The screens and images in this Quick Setup Guide
show the DCP-L1638W.
• Save all packing materials and the box in case you
need to ship your machine.
paper being used.
1
