BMW MOST25
with Amplifier Bypass Harness

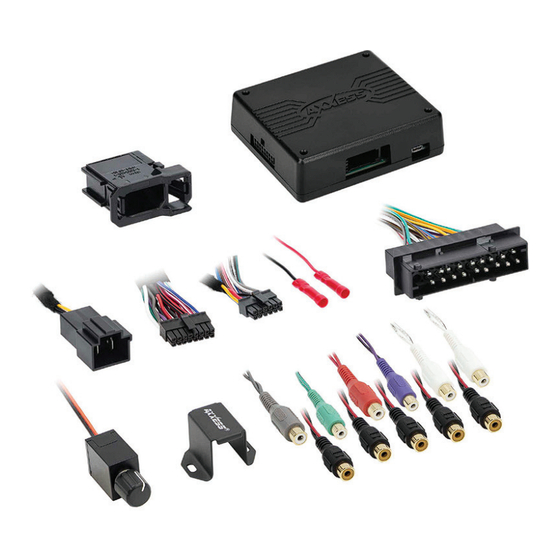

INTERFACE COMPONENTS
• AXDSPX-BMWM25 interface • AXDSPX-BMWM25 harness
• AXBK-1 Bass Knob
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun, solder, and heat shrink
• Tape
• Multimeter
www.MetraOnline.com
metraonline.com.
Enter the year, make, and model of the vehicle in the Vehicle Fit Guide for Radio Install kits.
© COPYRIGHT 2024 METRA ELECTRONICS CORPORATION
DSPX Interface
®
Visit
axxessinterfaces.com
for a current application list
• LD-MOSTCAP
• Wire cutter
• Tone generator
Google Play Store
AXDSPX-BMWM25
I N S T A L L A T I O N I N S T R U C T I O N S

TABLE OF CONTENTS

Interface Features ..................................................2
2010-2020
& Sub to a Factory System .................................3
Installing the Fiber Optic Cable.............................4
Installation .........................................................5-6
Quick Setup Steps: AX-DSP-XL App .......................7
•BMWM25
Specifications ......................................................... 8
Troubleshooting..................................................... 9
LED Feedback ......................................................... 9
Speaker Assignment QR Code .............................10
• Zip-ties
Visit
AxxessInterfaces.com
information about the product and
Apple App Store
up-to-date vehicle specific applications
iOS 12.1 or higher
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights, are
plugged in before reconnecting the battery or cycling
the ignition to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
for more detailed
REV. 5/10/24 INSTAXDSPX-BMWM25
