Amazfit Bip 5 User Manual
Connection and pairing
Use your phone to scan the QR code in the manual or on the device, and download
and install the Zepp app. For a better user experience, update the app to the latest
version as prompted.
Note: The operating system of your mobile phone must be Android 7.0 or iOS 14.0,
or later.
Initial pairing:

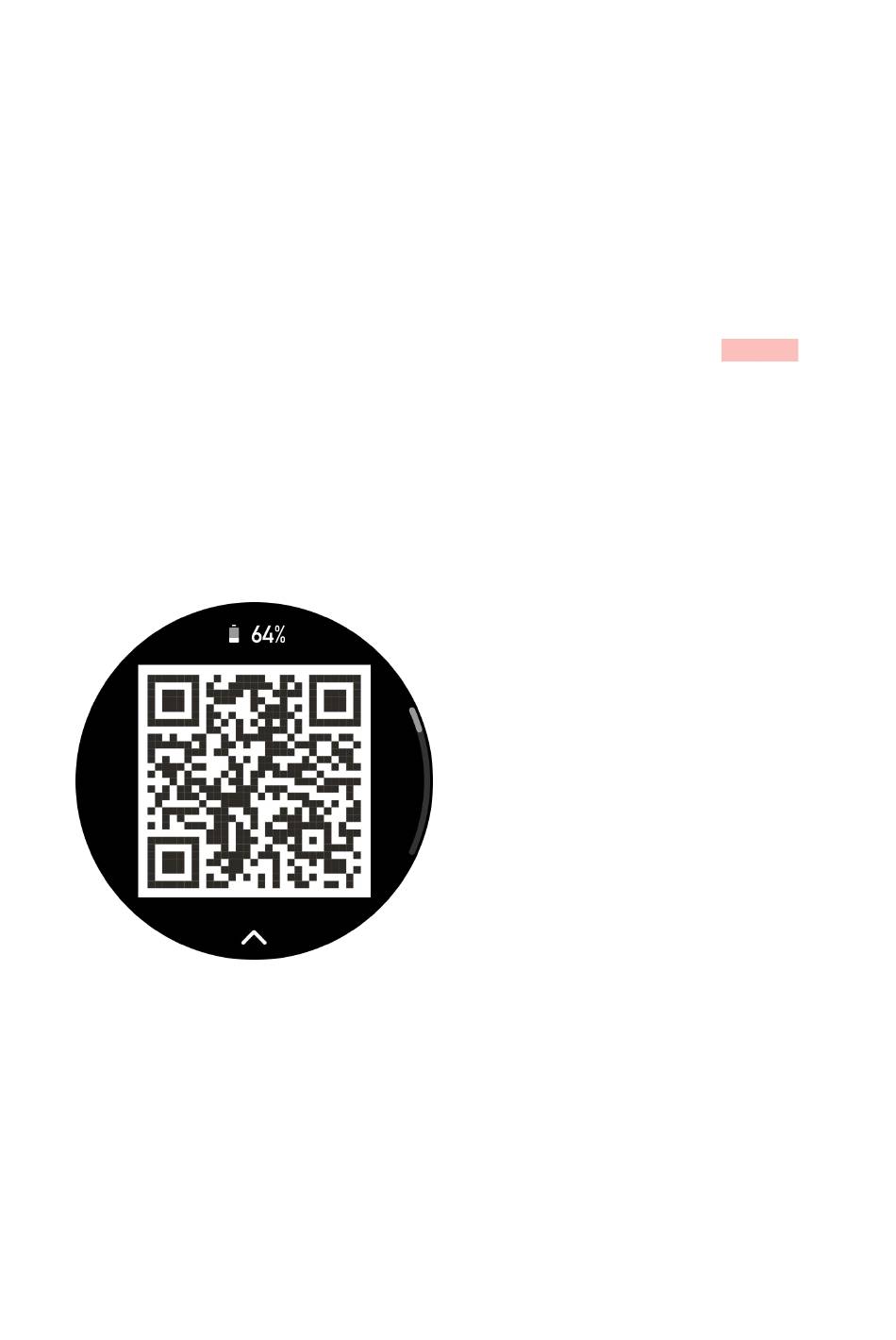

When the device is started for the first time, the QR code used for pairing will be
displayed on the screen.
Open the Zepp app on your phone, log in to the app, and scan the QR code
displayed on the device to pair your phone with the device.
Pairing with a new phone:
Open the app on your old phone and synchronize data with the device.
1.
On the old mobile phone, go to Profile > Amazfit Bip 5 page and tap the
2.
Unpair button at the bottom to unbind. If it is an iPhone, after unbinding in the Zepp
app, you need to unpair the phone and device. Go to Settings > Bluetooth, find the
Bluetooth name corresponding to the device, and tap the button on the far right of the
Bluetooth name. After entering the page, tap Ignore This Device.
Restore the factory settings of the device and then pair it with your new phone
3.
as if it is paired for the first time.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bip 5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Amazfit Bip 5

Summary of Contents for Amazfit Bip 5

  • Page 1 Open the app on your old phone and synchronize data with the device. On the old mobile phone, go to Profile > Amazfit Bip 5 page and tap the Unpair button at the bottom to unbind. If it is an iPhone, after unbinding in the Zepp app, you need to unpair the phone and device.

  • Page 2: Basic Operations

    Keep the device connected to your phone, open the Zepp app, go to Profile > Amazfit Bip 5 > System Update to view or update the system of your device. We recommend that you tap Update Immediately when your device receives a system update message.

  • Page 3: Watch Faces

    In the app list, tap More, and then tap Find Phone. Your phone will vibrate. Find the watch Keep the device connected to your phone, open the Zepp app, and go to Profile > Amazfit Bip 5 > Find Watch. Then, the device will vibrate. Watch faces Watch face compilations Some watch faces support editing compilations.
  • Page 4 Keep the device connected to your phone, open the Zepp app, go to Profile > Amazfit Bip 5 > Watch Faces > Custom Background, and tap your preferred style to change background by selecting a photo from your phone’s Albums or taking a photo with your phone’s camera.
  • Page 5 After synchronization, tap the watch face on the device or raise your wrist to switch the photo on the watch face. Go to Watch Faces > Mine > Purchase, and go to the portrait watch face to edit it again. Tap "Sync" to sync the watch face after each edit. Precautions: The photos you use when creating the watch faces are stored in the app and your device.
  • Page 6 Low battery • Power saving mode • DND mode • Sleep mode • Theater mode • Stopwatch (tap the state point to go to the app) • Countdown (tap the state point to go to the app) • In workouts (tap the state point to go to the app) •...
  • Page 7 Zepp app. Incoming call alerts To enable this feature, open the Zepp app, and go to Profile > Amazfit Bip 5 > App Settings > Phone > Incoming call. Once the feature is enabled, and while the device and phone are connected, the device will display a prompt when the phone receives a call, and you can ignore or hang up the call on the device.
  • Page 8 BPM data. You can also open the Zepp app and go to Profile > Amazfit Bip 5 > Shortcut Cards, where you can set the content and the display order of the shortcut cards.

  • Page 9: Start A Workout

    Press buttons for quick start-up Press and hold the watch side button to quickly open an app. You can go to the watch Settings>Preferences>Long Press Side Button to change the quick start- up app. Workouts Workout modes The device supports more than 120 workout modes, including Running & Walking, Cycling, Outdoor Workouts, Indoor Workouts, Dance, Combat Workouts, Ball Workouts, Water Workouts, Winter Workouts, Leisure Workouts, Board &...
  • Page 10 Workout operations Turn pages during a workout During a workout, you can either swipe up or down on the screen to turn pages. Swipe left or right to turn page left or right. The workout operations page is on the left side of the workout data page, where you can pause or end the workout.

  • Page 11: Workout Settings

    Resume later Press to save the current workout and return to the watch face. Enter the workout app again to return to the workout Auto screen lock After the auto screen lock is turned on, the screen will lock after being active for the Screen-on Duration during a workout.
  • Page 12 Workout alerts In this setting, you can set various reminders according to your needs, such as Distance Reminder, Heart Rate Reminder, etc. Workout alerts vary according to the workout. Distance reminder The device vibrates and displays the duration that you use for each full kilometer/mile during the workout.

  • Page 13: Auto Pause

    Auto pause Enable or disable Auto pause. After the function is enabled, the workout will be automatically paused when the workout speed is 0. When the speed increases to a certain threshold, the workout can be resumed. You can also resume the working during the pause.
  • Page 14 In the treadmill workout mode, you need to calibrate according to the actual distance after each exercise. Calibration with a distance greater than 0.5 km allows the watch to learn your running habits. After multiple calibrations, the watch will record the distance more and more accurately.

  • Page 15: Workout History

    Continuous workout status monitoring will greatly reduce the battery life. When • no workout is selected, the Workout Detection feature is not enabled. If the watch detects an ongoing workout, some data cannot be synchronized with the app. Voice broadcast during workout Voice broadcast is support when workout alerts or workout laps are triggered or when you pause, continue, end a workout or go to the workout history.
  • Page 16 VO₂ Max in the Workout Status app. Training Effect (TE) is an indicator for measuring the effect of a workout on improving the aerobic capacity. When you work out while wearing the device, the TE score starting from 0.0 increases as the workout progresses. The TE score ranges from 0.0 to 5.0, and different score ranges indicate different effects.
  • Page 17 anaerobic capacity. Post-workout recovery is required for non-athlete users. The TE score is evaluated based on your profile, as well as your heart rate and speed during your workout. A low TE score does not indicate a problem during your workout, but instead signifies that the workout is too easy and has no significant effect on improving aerobic capacity (for example, a low TE score for 1-hour of jogging).
  • Page 18 Training Load The training load score is calculated based on your Excess Post-Exercise Oxygen Consumption (EPOC). A higher score indicates a longer workout time and a greater workout intensity. The training load score is calculated as your total training load over the past 7 days, which represents the burden brought to your body from the recent workouts.
  • Page 19 36-53 hours Appropriately reducing the intensity of your training will allow you to gain workout benefits from your last training, and you should do recovery workouts to relieve physical fatigue. 54-96 hours Proper rest will allow you to get the benefits of the workout from your last high-intensity training.

  • Page 20: Heart Rate

    While the phone and device are connected, the following sleep settings can also be accessed in the Zepp app under Profile > Amazfit Bip 5 > Health Monitoring. Assisted sleep monitoring Open the Sleep app, swipe down to the last page, and go to sleep settings to enable assisted sleep monitoring.
  • Page 21 While the phone and device are connected, the following heart rate settings can also be accessed in the Zepp app under Profile > Amazfit Bip 5 > Health Monitoring. Manual heart rate measurement Wake up the device, press the side button on the watch face page to open the app...
  • Page 22 While the phone and device are connected, the following blood oxygen settings can also be accessed in the Zepp app under Profile > Amazfit Bip 5 > Health Monitoring. Manual blood oxygen measurement to manually measure your blood oxygen.
  • Page 23 Stress app as a quick access app allows you to easily measure your stress. While the phone and device are connected, the following stress settings can also be accessed in the Zepp app under Profile > Amazfit Bip 5 > Health Monitoring. Manual stress measurement In the Stress app, tap to manually measure your stress.
  • Page 24 Open the Activity app, swipe up to the last page, and go to the activity settings to enable Goal Reach Notifications. While the phone and device are connected, these settings can also be accessed in the Zepp app under Profile > Amazfit Bip 5 > Notifications and Reminders > Goal notifications.
  • Page 25 Tracking the menstrual cycles helps you understand your own physiological rhythms. Wake up the device, press the side button on the watch face page to open the app list, and swipe up or down on the screen to select and open the Cycle Tracking app. In the Cycle Tracking app on the device, you can view information such as menstrual cycle records and predictions.

  • Page 26: Voice Features

    With your watch connected to your phone, start the Zepp app, choose Profile > Amazfit Bip 5 > App settings > Amazon Alexa, and log in to the Amazon account to authorize Alexa. After successful authorization, you can start Alexa by pressing and holding the upper button for one second, or using the shortcut card.
  • Page 27 morning." Cancel an alarm: "Alexa, cancel my alarm for 2 p.m." Set a timer: "Alexa, timer" or "Alexa, set a timer for 15 minutes." or "Alexa, set a pizza timer for 20 minutes." Create a reminder: "Alexa, reminder" or "Alexa, remind me to check the oven in 5 minutes."...

  • Page 28: Music Control

    Keep the device connected to your phone, open the Zepp app, go to Profile > Amazfit Bip 5 > App settings > To-Do List, and you can create or edit to-dos and set a reminder time or repetition for to-dos. Up to 60 to-dos can be added.

  • Page 29: Camera Remote

    Keep the device connected to your phone, open the Zepp app, go to Profile > Amazfit Bip 5 > App settings > More > Go to store > App store , select a target app to download and install it, or update an installed app to the latest version.

  • Page 30: Time Format

    Watch settings Units Keep the device connected to your phone, open the Zepp app, go to Profile > More > Settings > Units, where you can set the units for distance, weight and temperature. During data synchronization, the device automatically follows the settings in the app. Time format Keep the device connected to your phone.
