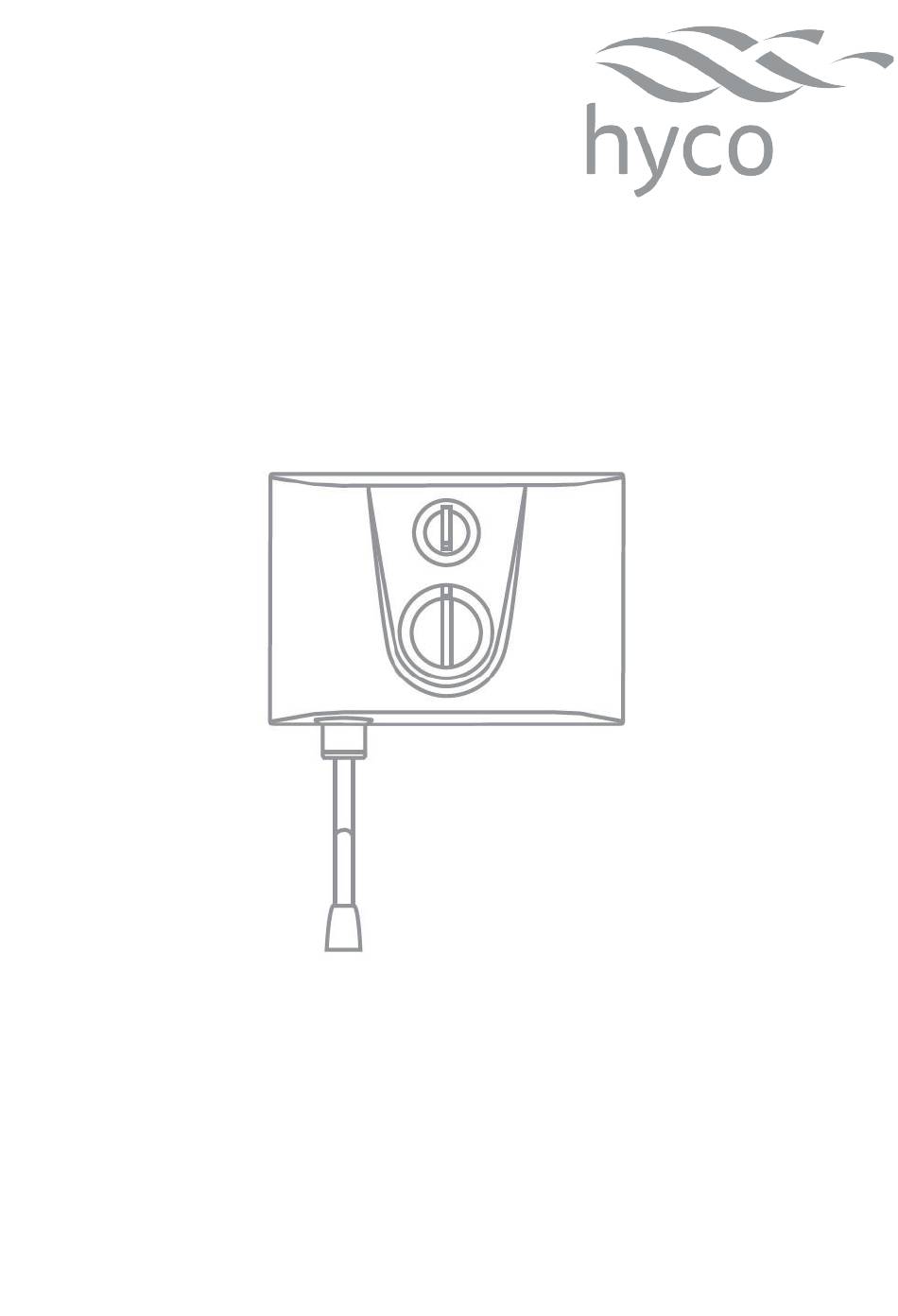

- Page 1 Product Instruction Manual Wave HW30M, HW30A Instantaneous Hand Wash v24.5.4...
-
Page 2: Important Safety Points
Overview Thank you for purchasing a Wave Instantaneous Hand Wash. Available in manual and automatic models, to be used for light hand washing at a single basin. Instantaneous water heaters are energy efficient as they only consume energy when in use, so have no standing losses. - Page 3 Do not use pre heated water to supply the inlet of this appliance. Only connect the appliance to an electrical supply that meets the specification detailed on the rating label. The appliance must be permanently connected to the electrical supply through an appropriately rated isolating switch with a contact separation in all poles.
-
Page 4: Installation
1. Installation Wall Mounting Do not locate the appliance where the consequences of a water leak could be unusually serious. This appliance is not designed for outdoor use or use in very damp environments. Ensure there are no hidden cables or pipework before commencing any drilling. •... -
Page 5: Plumbing Connection
2. Plumbing Connection This appliance is intended for open outlet usage, use only the fittings provided/ specified and do not attempt to modify them in any way. This appliance is intended to be permanently connected to the water mains and should not be connected by a detachable hose-set. -
Page 6: Electrical Connection
3. Electrical Connection Do not commence electrical installation before completing all stages of the plumbing installation. Only connect the appliance to an electrical supply that meets the specification detailed on the rating label. The appliance must be permanently connected to the electrical supply through an appropriately rated isolating switch with a contact separation in all poles. - Page 7 HW30M Manual Model...
-
Page 8: Refitting The Cover
4. Refitting the Cover • Ensure the internal flow valve is in the fully closed position, turned clockwise as far as it will go and pointing straight up (see diagram 2). • When the cover is replaced ensure that the temperature control dial on the front cover indicates that the valve is closed. -
Page 9: Operation
5. Operation Do not use the appliance in an ambient temperature exceeding 30°C. Do not switch on if there is a possibility that the water in the appliance is frozen. On first use the commissioning sequence must be followed to prevent dry operation of the element. - Page 10 Normal Operation HW30M - Manual Model • Turn on power to the appliance using the power dial (see diagram 2). Adjust the temperature control dial until the desired temperature is achieved. When hand washing is complete turn off using the power dial. HW30A - Automatic Model •...
-
Page 11: Cleaning And Maintenance
6. Cleaning and Maintenance The appliance should only be installed and maintained by a competent person in accordance with any local electrical and plumbing regulations. Do not use abrasive chemicals or cloths to clean this appliance. Isolate the appliance from the electrical and plumbing supply before performing any maintenance task. -
Page 12: Additional Information
7. Additional Information Safety Features • This appliance is fitted with two levels of thermal protection, the first is an auto reset cutout that will operate at 60°C. The second is a manual reset cutout that operates at 90°C. Automatic Thermal Cutout •... - Page 13 Isolate the appliance from the power and water supply. • Spare relief valve balls and the required tool are available from Hyco as spare parts. • Using the appropriate tool, push the ball into the valve at the base of the tank (behind the spout) and push into the valve as far the tool will allow.
-
Page 14: Troubleshooting
Appliance not heating, Manual cut-out has Reset manual cut-out and establish cause of water cold. operated. overheat. If problems persist contact Hyco Technical Department on 01924 225200. -
Page 15: Specification
9. Specification Model HW30M HW30A Power 2.84 kW 2.84 kW Voltage 230 V~ 230 V~ Rated current 13 A 13 A Frequency 50 Hz 50 Hz Max flow rate for light hand 1.7 l/m 1.7 l/m wash only Min working pressure 0.1 MPa (1 bar) 0.1 MPa (1 bar) Max working pressure... - Page 16 In order to underline the duty to dispose of this equipment separately, the product is marked with a crossed out dustbin. Hyco Manufacturing Ltd Normandy Court Express Way...
