Product Instruction Manual
Pressure and Expansion Kit
Fast Install
SF7
Unvented Accessory Kit
v23.6.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF7 and is the answer not in the manual?

Questions and answers

Related Manuals for Hyco SF7

Summary of Contents for Hyco SF7

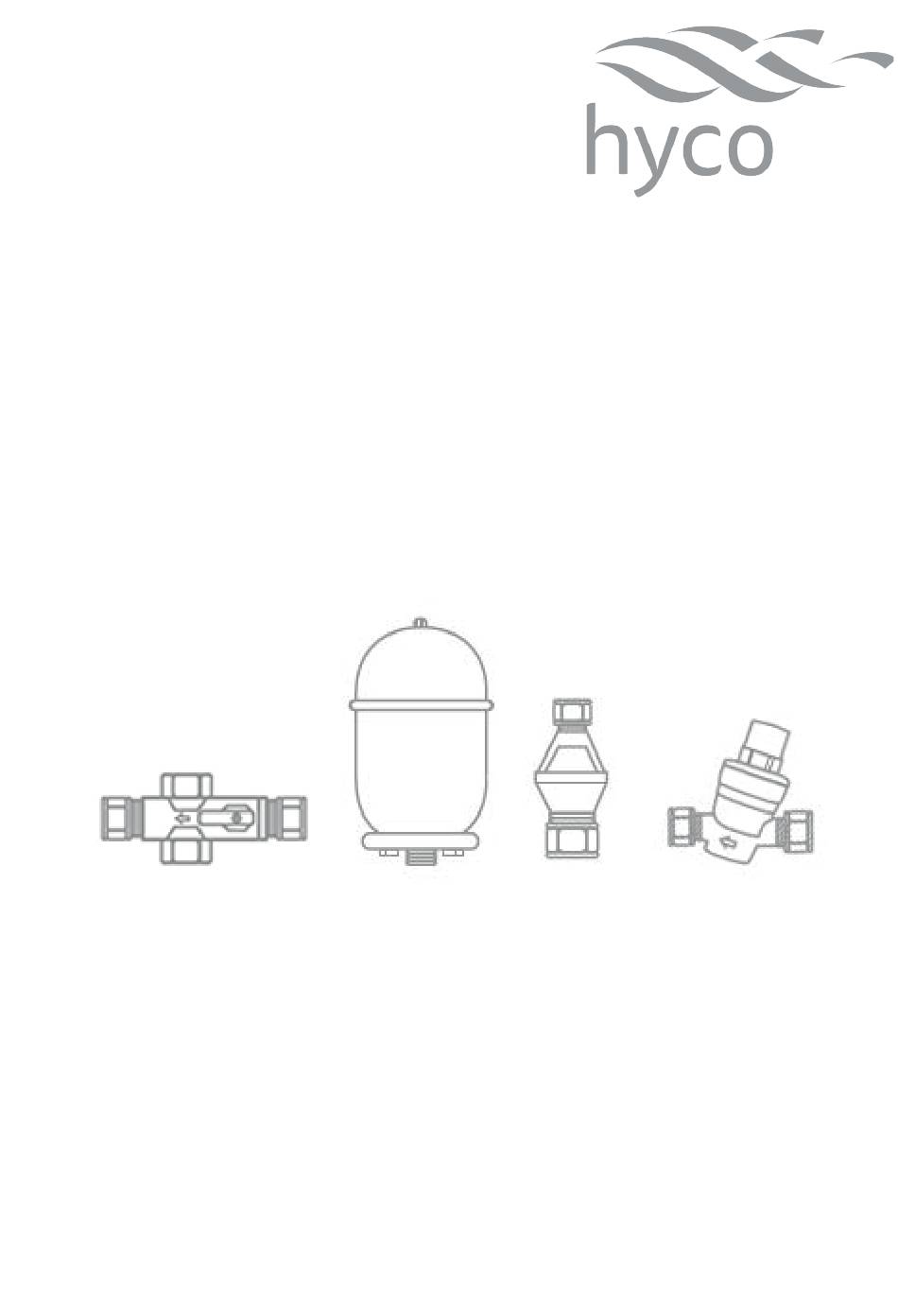

  • Page 1 Product Instruction Manual Pressure and Expansion Kit Fast Install Unvented Accessory Kit v23.6.2...

  • Page 2: Box Contents

    Overview Thank you for purchasing an SF7 Pressure and Expansion Kit with fast install inlet group (manifold) incorporating check valve and service valve. To be used with the Speedflow range of unvented water heaters, available in 5, 10 and 15L capacity.

  • Page 3: Installation

    2. Installation The installation of this kit should be carried out by a competent person in accordance with any local plumbing regulations. • Connect the inlet of the manifold to the incoming water supply. The orientation of the manifold is optional, but the direction of flow must follow the arrow marked on the manifold.
  • Page 4 • Attach the bracket to the wall before securing the vessel to it using the supplied banding. • Connect the flexible hose to the vessel using the black washer. • Using a length of 15 mm piping, connect the pressure relief valve (supplied with the heater) to the top outlet of the manifold.

  • Page 5: Maintenance

    3. Commissioning • Upon completion of installation, turn on the water supply to the manifold and allow the water heater to fill. Open the hot water tap to allow air to purge from the system. • Once the water runs smoothly from the hot water tap and the air is purged from the system, close the tap, and inspect all fittings for leaks.

  • Page 6: Specification

    5. Specification Product Manifold Flexihose Expansion Vessel Tundish Pressure Reducing Valve Connections 2 x 15 mm 1/2 ” MBSP to 1/2 ” MBSP 15 mm to 22 mm 2 x 15 mm compression 1/2 ” FBSP compression compression 2 x 1/2” FBSP Details Built in service 600 mm length...
  • Page 7 This product is guaranteed against faulty materials and manufacture for a period of one year from the date of purchase. Hyco will in its sole discretion replace, repair or refund any faulty unit. Incorrect installation and failure to follow correct operating instructions are excluded.
  • Page 8 Hyco Manufacturing Ltd Normandy Court Express Way Castleford, WF10 5NR 01924 225 200 sales@hyco.co.uk hyco.co.uk...
