Summary of Contents for Hyco Vega VEGAQ

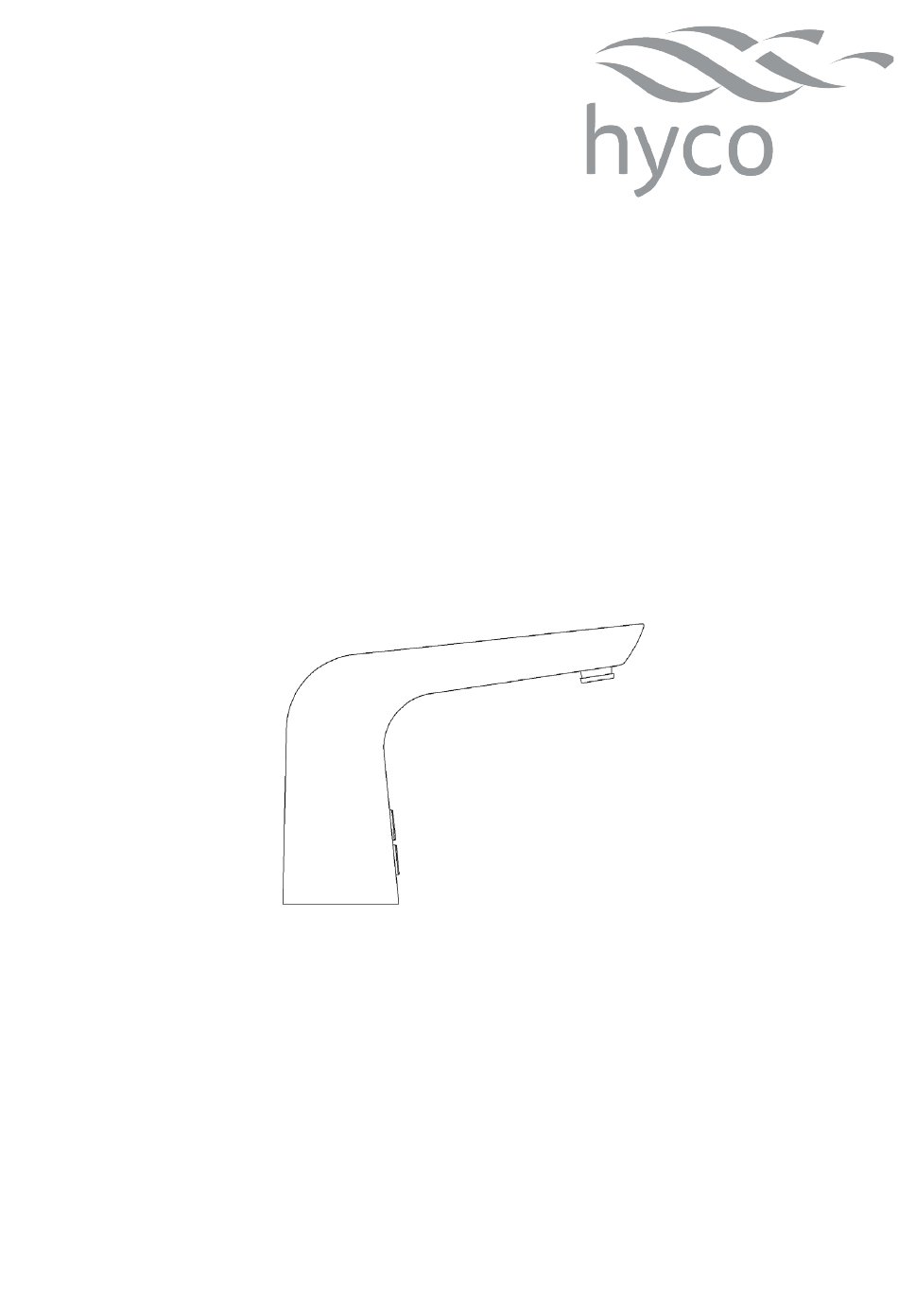

- Page 1 Product Instruction Manual Vega VEGAQ Square Automatic Infrared Tap v20.12.1...
- Page 2 Thank you for purchasing a Vega Tap. This tap is suitable for a wide range of washroom applications. It is ideal for use with Hyco Ara, Rho and Aquila instantaneous water heaters to provide optimum hand washing performance in washroom settings and for use with Hyco Speedflow and Powerflow unvented water heaters.
- Page 3 Please fully read these instructions before commencing installation and follow to ensure that installation and operation are simple and safe. Important Safety Points The tap has no water mixing capability and should be supplied by premixed/ thermostatically controlled water, comfortable for hand washing. Recommended temperature range between 36-42C Not suitable for installation in locations where bright reflective surfaces may interfere with the motion sensor, e.g.
- Page 4 1. Installation Do not install where any obstacle is within the sensor range. Do not install where glass or other strong reflective material is on the opposing wall. Ensure sensor is not damaged in any way. All supply pipework should be thoroughly flushed before connecting to the tap to ensure any debris is removed.
- Page 5 Diagram 1...
- Page 6 2. Operation • Place hands in line with the infrared sensor and water will flow from the spout. • Remove hands to stop the flow. 3. Cleaning and Maintenance Cleaning and user maintenance should not be carried out by children without supervision.
- Page 7 4. Specification Power supply 4 x AA batteries Dimensions H155 x W63 x D177 mm Centre to centre dimension 145 mm Protection class IP24 Min operating flow rate 1.2 L/min Min operating pressure 0.05 MPa (0.5 bar) Max rated pressure 0.6 MPa (6 bar) Water fittings 1/2”...
- Page 8 If you experience a problem with this product you should first contact our service department on 01924 225 200 before taking any further action. Experience has shown that issues can often be resolved without the need to return or uninstall the product. Hyco Manufacturing Ltd Normandy Court Express Way...
