Assembly Instructions

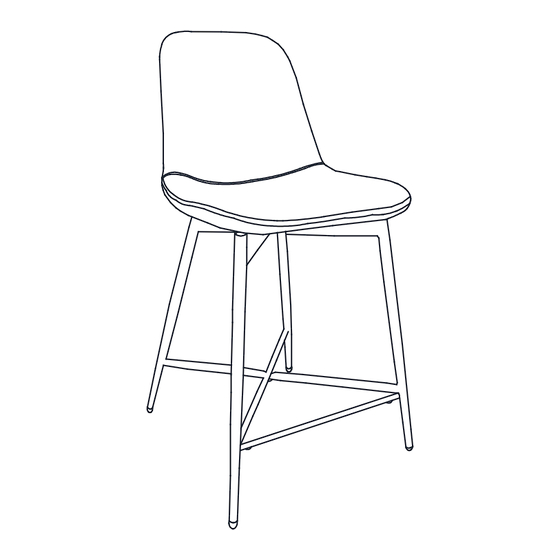

TYLER BICAST STOOL
SKU# 554322 / 554321
THANK YOU FOR YOUR PURCHASE.
IF YOU HAVE ANY QUESTIONS PERTAINING TO THE ASSEMBLY
OF THIS FURNITURE PIECE, PLEASE CONTACT THE NEAREST
COST PLUS WORLD MARKET STORE. IF YOU ARE NOT NEAR A STORE,
PLEASE CALL OUR CUSTOMER SERVICE CALL CENTER
TOLL FREE AT 877- 967-5362 FOR ASSISTANCE.
CH208
Material #: 980663COG01 / 980664COG01
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TYLER BICAST STOOL 554321 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for World Market TYLER BICAST STOOL 554321

Summary of Contents for World Market TYLER BICAST STOOL 554321

  • Page 1 IF YOU HAVE ANY QUESTIONS PERTAINING TO THE ASSEMBLY OF THIS FURNITURE PIECE, PLEASE CONTACT THE NEAREST COST PLUS WORLD MARKET STORE. IF YOU ARE NOT NEAR A STORE, PLEASE CALL OUR CUSTOMER SERVICE CALL CENTER TOLL FREE AT 877- 967-5362 FOR ASSISTANCE.
  • Page 2 Seat Upper leg frame Lower leg frame Front rail Page 2...

  • Page 3: Tool List

    Tool List Allen Wrench (M6) Allen Wrench (M5) (M6x60mm) Bolt Bolt (M6x70mm) Bolt (M6x15mm) Bolt (M5x10mm) Spring Washer Flat Washer Page 3...
  • Page 4 Have 2 adults on hand for assembly- In case of missing parts,Please call toll free 877-967-5362 for assistance. Page 4...
  • Page 5 Step 1 Attach Lower leg frame C To Upper leg frame B as shown. Step 2 Attach Front rail D to the assembled leg frame as shown. Page 5...
  • Page 6 Step 3 Secure Lower leg frame C and Upper leg frame B with Bolt H-3 using Allen key. Secure Front rail D to the assembled leg frame with Bolts H-4 (2) using Allen key T-2. Do not fully tighten the bolts. Step 4 Remove the PE sheet before attaching the assembled Leg frame.
  • Page 7 Step 5 Attach assembled Leg frame to Seat A with Bolts H-1 (2), Spring washers H-5 (2) and Flat washers H-6 (2) using Allen key. Do not fully tighten the bolts. Step 6 Attach assembled Leg frame to Seat A with Bolts H-2 (2), Spring washers H-5 (2) and Flat washers H-6 (2) using Allen key.
  • Page 8 Step 7 Tighten all the bolts completely. Note: If your stool is not level, put it on a hard surface, then adjust the levelers. Step 8 Assembly complete stool is now ready to use. Page 8...
  • Page 9 Page 9...
