OPERATION OF THE REMOTE POWER CONTROLLER
Setting power level
Pick Up the radio remote power controller PTVTEL:
Choose the Channel corresponding to the heater or group of heaters that you want to
control («1» in example below).
•
On channel «1», press the
•

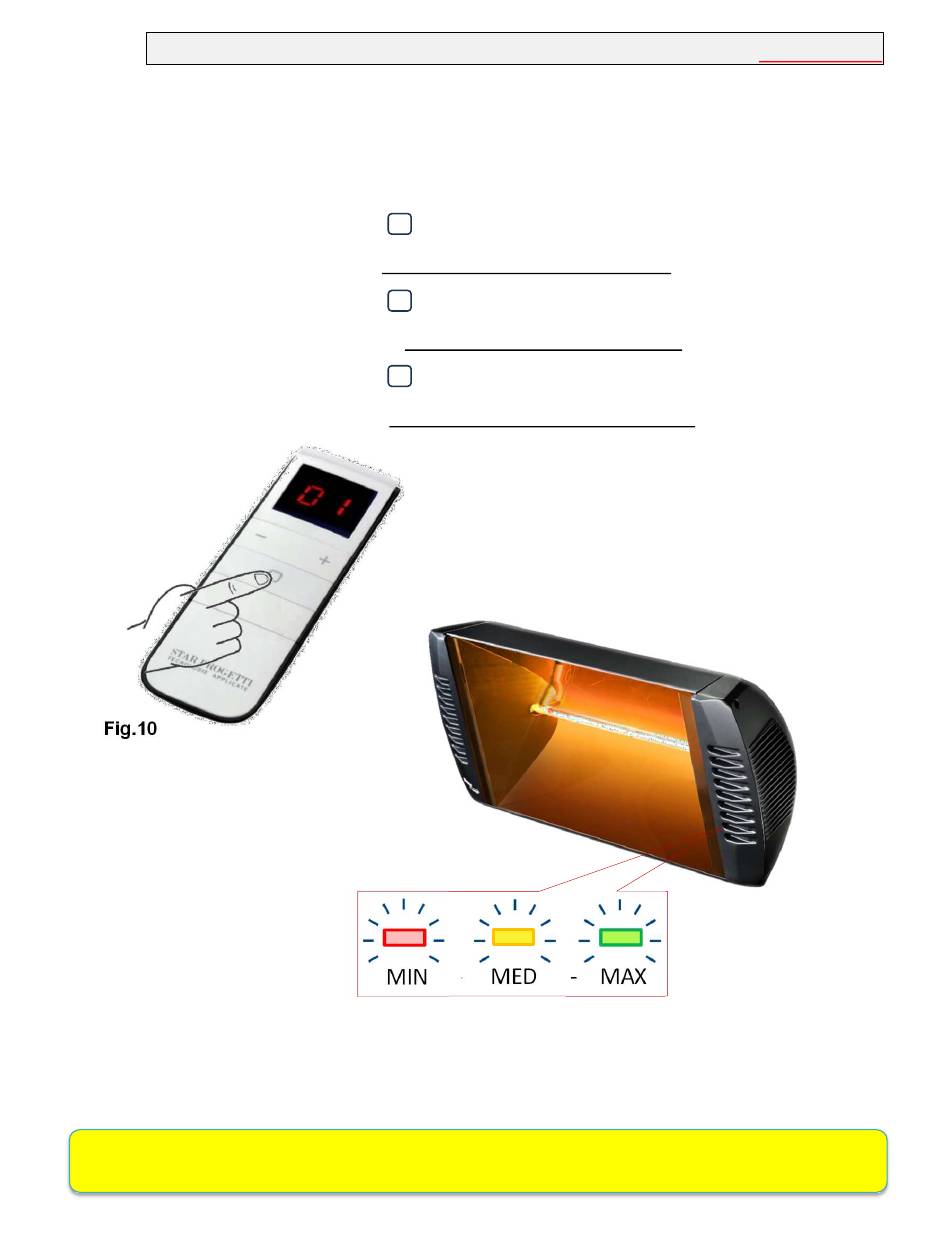

RED LED lights up Fig.11 : minimum power = 50% or 1000W
•
On channel «1», press the
•
Yellow LED
•
On channel «1», press the
•
Green LED
Fig.10
THE HEATER REMEMBERS THE LAST POWER SETTING BEFORE IT WAS
SWITCHED OFF AND WILL RESTART AT THAT LEVEL
button as shown in Fig. 10
button as shown in Fig. 10
lights up Fig.12 : medium power = 75% or 1500W
button as shown in Fig. 10
lights up Fig.13 maximum power = 100% or 2000W
MIN
The LED changes colour
( Red, Yellow, Green ) according to the set power level.
- MED - MAX
.
6
CHANNELS 1 - 12
Fig. 11, 12, 13
