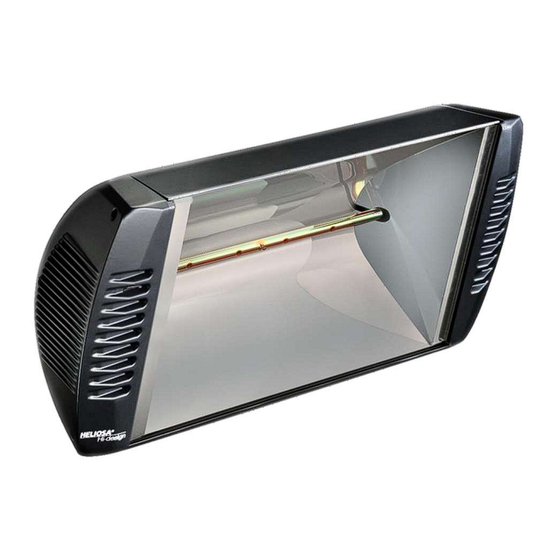

- Page 1 HELIOSA RADIO OPERATING INSTRUCTIONS Remote Power Controller -Australia Warning! Before installing the HELIOSA RADIO, please read these instructions carefully WIDE ANGLE STAR PROGETTI RADIO ELECTRIC HEATERS MADE IN ITALY...
- Page 2 ENGLISH 690070 690071 RATED RATED PART no. COD. COLOUR POWER VOLTAGE WDBR20 WHITE 690070 1 x 2000W 230Vac 690071 WDNR20 BLACK...
-
Page 3: Channel Function
Radio remote power control unit PTVTEL 15 CHANNELS CHANNEL FUNCTION CHANNEL REMOVE RADIO SELECTION CONTROLS AND DETECTORS 1-12 SETTING HEATER MANAGEMENT POWER PROGRAMMING ENABLE / DISABLE GHOST BUTTON PIR DETECTOR* ST15 PIR DETECTOR TRANSMISSION Degree of protection: IP20 • Battery: 3 V type CR2450 •... - Page 4 START UP After installing the heater on the wall (see separate instructions (Fig.A): Operate the main switch Fig.1 The heater is now powered by 220-240Vac mains voltage. A green light flashes for a few seconds to confirm the operation. Fig. 2 Fig.1 Fig.A Fig.2...
- Page 5 Using the radio remote power controller PTVTEL: • Within 10 seconds press the "+" and "-" buttons to select a channel [1-12] chosen for pairing. Example channel «1» Fig.7 • Immediately afterwards press the button as shown in Fig. 8. •...
- Page 6 OPERATION OF THE REMOTE POWER CONTROLLER CHANNELS 1 - 12 Setting power level Pick Up the radio remote power controller PTVTEL: Choose the Channel corresponding to the heater or group of heaters that you want to control («1» in example below). •...
- Page 7 OPERATION OF THE PROXIMITY SENSOR (PIR) CHANNEL 14 NOT INCLUDED • AVAILABLE IN ACCESSORY AUSTRALIA COD.ST15 To Enable PIR* from remote control Pick Up the radio power controller cod. PTVTEL: • Using the "+" and "-" buttons select channel 14 Fig.14 and immediately after press the button as shown in Fig.
- Page 8 CLEARING THE HEATER MEMORY CANCELLAZIONE PIR CHANNEL PP TO REMOVE PAIRING OF CONTROLLERS AND DETECTORS. To change channels or groups of channels or to completely re-set the system, the heater memory has to be cleared. ALWAYS CARRY OUT OPERATION WITH ONLY ONE HEATER CONNECTED TO MAINS VOLTAGE / SWITCHED ON UNLESS YOU WANT TO CLEAR MEMORY OF ALL HEATERS.
- Page 9 RE-PROGRAMMING A HEATER AND CONTROLLER CHANNELS 1 - 12 Once a heater memory has been cleared, to re-PAIR follow Instructions in Sections 2A and 2B to pair with new selected channel. The only difference is that once paired the heater will not power up automatically. It must be powered up using the “GHOST BUTTON”...
- Page 10 BATTERY WARNING DANGER • The Remote Power Controller uses a Lithium Button Battery which is Hazardous and must be kept away from children (whether new or used). • Fatal injury can occur within 2 hours if the battery is swallowed or placed inside any part of the body.
-
Page 11: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSES SOLUTIONS The radio remote control • Batteries are low • Replace battery Fig. 23 with does not work CR2450 3V • Store PTVTEL read Section radio remote PTVTEL has not been stored 2 «Pairing 1 Remote Power p o w e r controller works with the heater Controller with 1 Heater»... - Page 12 SEDE CENTRALE/PRODUZIONE – HEADQUARTERS/PRODUCTION: STAR PROGETTI Tecnologie Applicate SpA - Via Cassino D’Alberi,17 - 20067 TRIBIANO (MI) ITALYTel +39/02/90639261 Fax +39/02/90639259 STAR PROGETTI France Sarl - 345, Rue du Bois Bernoux 71290 CUISERY – France Tel +33 (0)3 85 40 12 62 Fax + 33 (0)3 85 40 06 91 www.starprogetti.com...
