IMPORTANT:
, O
PERATION AND
M
Model QMR6
6,000 lbs. Capacity
1500 lb Per Arm
2311 South Park Rd Louisville, Kentucky 40219
/
502-625-0700 Fax 502-587-1933
READ THIS MANUAL COMPLETELY BEFORE
INSTALLING or OPERATING LIFT
M
AINTENANCE
-R
L
ID
ISE
IFT
Web
site:www.challengerlifts.com
M
ANUAL
04/02/2021
Advertisement
Table of Contents
Related Manuals for QUALITY LIFTS QMR6
Summary of Contents for QUALITY LIFTS QMR6

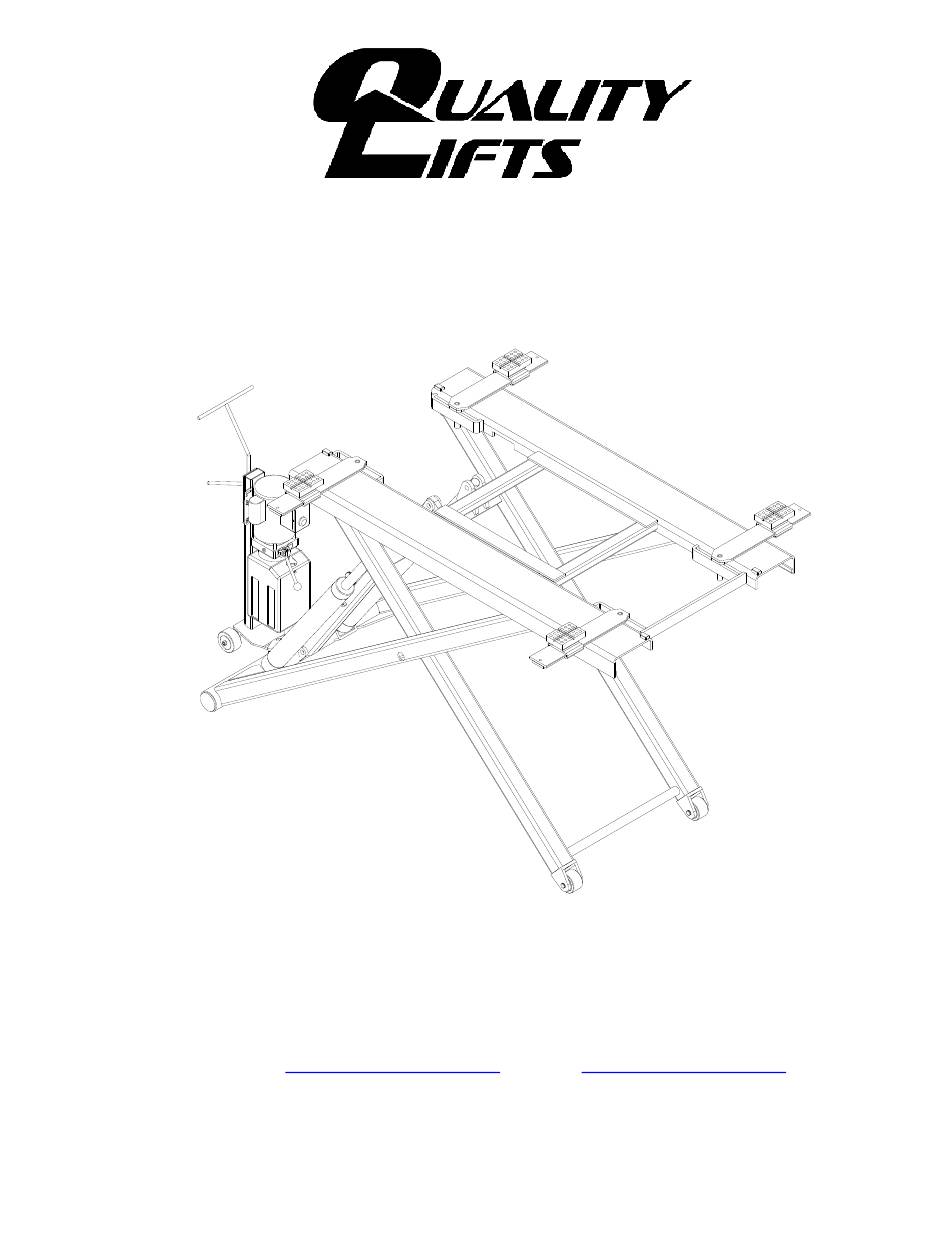

- Page 1 NSTALLATION PERATION AND AINTENANCE ANUAL ORTABLE Model QMR6 6,000 lbs. Capacity 1500 lb Per Arm 2311 South Park Rd Louisville, Kentucky 40219 Email:sales@challengerlifts.com site:www.challengerlifts.com Office 800-648-5438 502-625-0700 Fax 502-587-1933 IMPORTANT: READ THIS MANUAL COMPLETELY BEFORE INSTALLING or OPERATING LIFT 04/02/2021...
-
Page 2: General Specifications
Model QMR6 Installation, Operation, and Maintenance GENERAL SPECIFICATIONS Maximum Capacity ..................6,000 lbs Minimum Table Height ................5 1/2 inches Maximum Table Height ................. 53 inches Electrical Requirements ............115V, 50/60 Hz, 1 phase Lifting Time ....................45 seconds Safety Lock ………………………………………………System Mechanical Safety Lock Fig. - Page 3 Model QMR6 Installation, Operation, and Maintenance Before You Begin Safety decals similar to those shown here are found on a properly installed lift. Be sure that all safety decals have been Safety Notices and Decals correctly installed on the lift. Verify that all...
-
Page 4: Installation
Model QMR6 Installation, Operation, and Maintenance Electrical Requirements Receiving For lift installation and operation, it is necessary to The shipment should be thoroughly inspected as have a dedicated 115V single-phase 60-cycle circuit soon as it is received. The signed bill of lading is with a 20 amp circuit breaker or time delay fuse. -
Page 5: Safety Notices And Decals
Model QMR6 Installation, Operation, and Maintenance Owner/Operator Checklist CAUTION The power unit operates at high SAVE THESE INSTRUCTIONS deliver them to pressure. owner/user/employee along with other materials furnished with this lift. Raise and lower lift a few times and check hose and fittings for leaks and tighten if required. - Page 6 Model QMR6 Installation, Operation, and Maintenance IMPORTANT SAFETY Owner/Employer INSTRUCTIONS Responsibilities When using your garage equipment, basic safety precautions should always be followed, including This lift has been designed and constructed the following: according to ANSI/ALI ALCTV standard. The 1. Read all instructions.
- Page 7 Model QMR6 Installation, Operation, and Maintenance Operating Instructions NOTE: After reviewing these instructions and all decals, get familiar with lift controls by running the lift through a few cycles before loading vehicle on lift. Loading Vehicle Ladder 1. Be sure lift is fully lowered and service bay is clear of all personnel before the vehicle is driven on to lift.
-
Page 8: Lowering Vehicle
Model QMR6 Installation, Operation, and Maintenance CAUTION Most specialty or modified vehicles Raising Vehicle cannot be raised on a frame engaging or pad lift. Contact vehicle manufacturer for raising or jacking 4. To raise lift: details. Actuate RAISE switch on electric power unit. -
Page 9: Maintenance
Model QMR6 Installation, Operation, and Maintenance MAINTENANCE NOTE: To avoid personal injury, permit only qualified personnel to perform maintenance on this lift. See repair parts breakdown for replacement parts. ALWAYS: Keep all bolts tight. Check periodically. ALWAYS: Keep lift clean. Raise lift when cleaning floor area. -
Page 10: Parts Breakdown
Model QMR6 Installation, Operation, and Maintenance ARTS REAKDOWN Description Part # Description Part # Scissor Outside Scissor Pin GTYJ3-01-00 TYJ3-13 Safety Locking Pin GTYJ3-03-00 Scissor Inside TYJ3-08 (Bottom) Platform Safety Locking Pin (Top) GTYJ3-02-00 TYJ3-10 Cylinder Assy. (Left) 16 Locking Nut, M18... - Page 11 Model QMR6 Installation, Operation, and Maintenance AFETY SSEMBLY Part # Qty. Description GTYJ3-07-02CH Lock Sheath GTYJ3-07-01 Lock Pole TYJ3-07-05 Base MR6-006 Socket Head Bolt, M8 x 16 SR-0112 Washer, M8 TYJ3-07-04-00CH Pulley Assy. TYJ3-07-06 Spring GTYJ3-07-03CH Lock Block X10-081 Roll Pin 4 x 30 TYJ3-22 Split Bolt M8 x 1.25...
- Page 12 Model QMR6 Installation, Operation, and Maintenance OWER TAND OLLY SSEMBLY NSTRUCTIONS Part # Qty. Description Part # Qty. Description TYJ3-00-01-1 Handle MR6-008 Lock Washer, M8 TYJ3-00-01-2-1 Stand MR6-009 Hex Bolt, M8x25 TYJ3-00-01-2 Base SR-0112 Washer, M8 AB-1563-B Electric/Hyd. Unit HEXNM8...
- Page 13 Model QMR6 Installation, Operation, and Maintenance YDRAULIC ELEASE REAKDOWN Part # Qty. Description TYJ3-25 Hydraulic Hose Short GTYJ3-31X Lock Release Cable TYJ3-26 Hydraulic Hose Long 16167 Hyd. Elbow; 9/16-18 O-Ring x 37 deg Male MR6-011 3/8 NPTM x #6 JIC 37 deg Female Swivel TYJ3-21 M14x1.5-6g Male x 3/8 NPT...
- Page 14 Model QMR6 Installation, Operation, and Maintenance REVISIONS 2020/11/19 – CORRECTED PARTS BREAKDOWN X10-099 TO TYJ3-17 AND TYJ3-07-03CH CORRECTED TO GTYJ3-07-03CH. 2021/04/02 – Changed GTYJ3-07-04CH to TYJ3-07-04CH Pulley As. in PBD 2024/01/22 – CORRECTED PARTS BREAKDOWN TO INCLUDE CABLE NUT & BLOT FOR LOCK RELEASE, UPDATED ANSI/ALI REFERENCE MATERIAL File: MR6-IOM-Q.doc...
