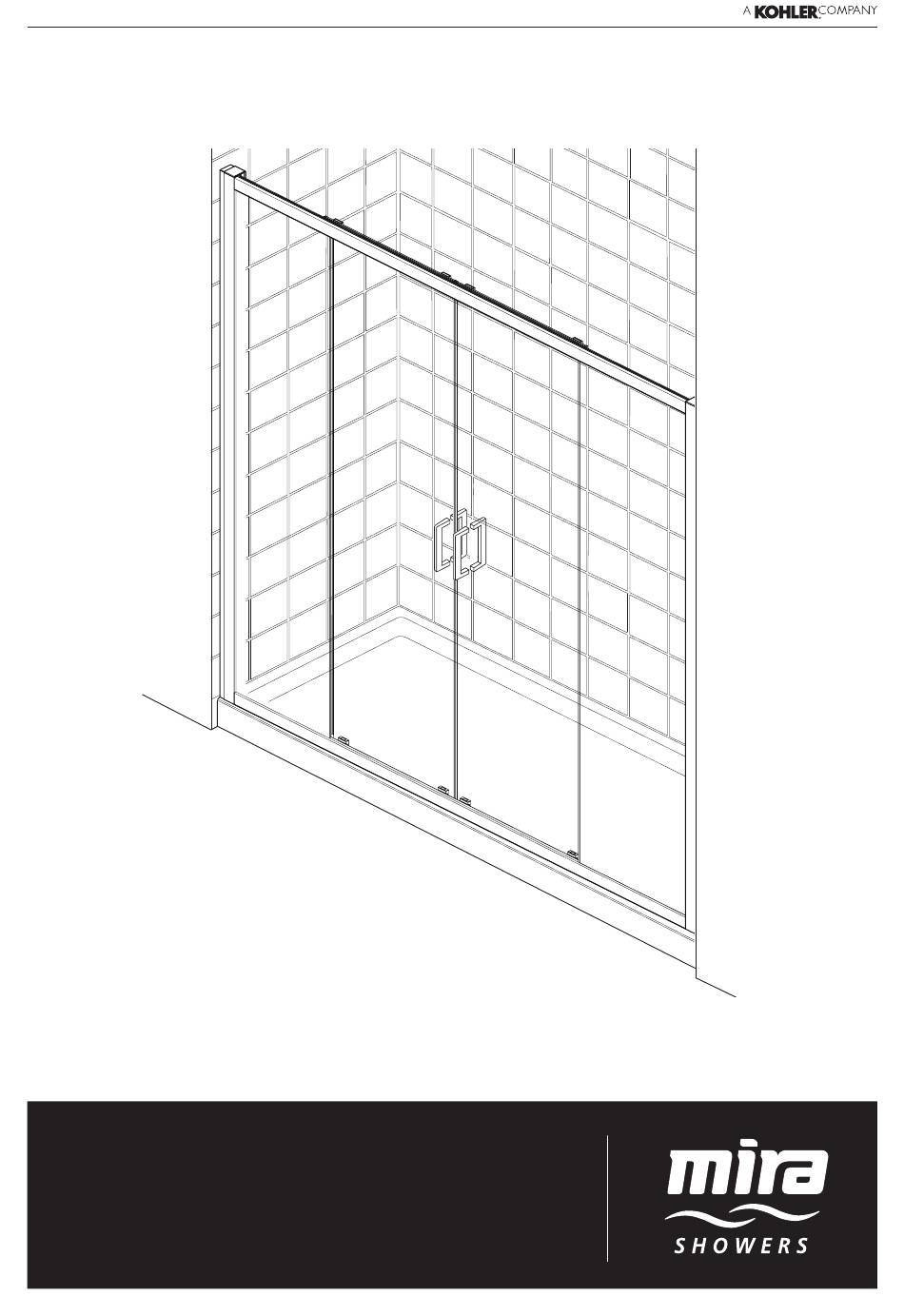

- Page 1 Leap Double Door Slider (S43F) These instructions must be left with the user Installation Guide 1242346-W2-D...
- Page 2 1242346-W2-D...
-
Page 3: General Information
INTRODUCTION Thank you for purchasing a quality Mira product. To enjoy the full potential of your new product, please take time to read this guide thoroughly, having done so, keep it handy for future reference. The following pages aim to provide comprehensive installation instructions, plus advice on how to care and maintain your product. -
Page 4: Recommended Usage
Ensure the size of door/panel is suitable for the installation. Tempered safety glass cannot be cut. Ensure nothing can impact the door or glass panels during operation. When Fitting the Enclosure The wall channels must be installed onto a tiled or waterproof finished flat and even wall surface. -
Page 5: Pack Contents
PACK CONTENTS 1 x 3.0 mm A/F 1 x 2.0 mm A/F 1242346-W2-D... - Page 6 Pack 1 X 1 q X 1 q X 2 q X 2 q X 1 q X 1 q X 2 q 1242346-W2-D...
- Page 7 Pack 2 X 2 q X 2 q X 1 q 1242346-W2-D...
-
Page 8: Installation
INSTALLATION 10 mm ± 0 mm Note! Make sure that the walls have been tiled down to the tray. Height of Enclosure (mm) 1900 Min/Max Frame Adjustment Enclosure Size Minimum (mm) Maximum (mm) 1500 1450 1510 1600 1550 1610 1700 1650 1710 (a) Install the shower tray in accordance with the manufacturer’s instructions. - Page 9 (a) Remove the wall channel from the panel. 1242346-W2-D...
- Page 10 2 Persons (a) Install the seals to the top of the panels as shown above and cut to length, leaving 5 mm extra to allow for shrinkage. 1242346-W2-D...
- Page 11 2 Persons Lubricate liberally with water (a) Lower the track onto the first panel working the seal into the track. (b) Slide the track infil into the correct position. (c) Place the second panel in position and work the track onto the seal. 1242346-W2-D...
- Page 12 2 Persons (a) Fully tighten the screws to secure the assembly. 1242346-W2-D...
- Page 13 2 Persons (a) Carefully turn the whole assembly through 180 degrees. 1242346-W2-D...
- Page 14 2 Persons (a) Install the seals to the top of the panels as shown above and cut to length, leaving 5 mm extra to allow for shrinkage. 1242346-W2-D...
- Page 15 2 Persons Lubricate liberally with water (a) Slide the track infil into the middle of the channel and lower the track onto the seal. 1242346-W2-D...
- Page 16 2 Persons (a) Fully tighten the screws to secure the assembly. 1242346-W2-D...
- Page 17 5 10 ± 0 mm 6 mm 10 mm (a) Position the wall channel (handle side) on the wall. Using a spirit level make sure that it is upright. (b) Mark the position of the fixing holes, then remove the wall channel. (c) Drill with a 6 mm masonry bit (not supplied) and plug using the wall plugs (supplied).
- Page 18 5 11 ± 0 mm 6 mm 10 mm (a) Position the second wall channel (fixed panel side) on the wall. Using a spirit level make sure that it is upright. (b) Mark the position of the fixing holes, then remove the wall channel. (c) Drill with a 6 mm masonry bit (not supplied) and plug using the wall plugs (supplied).
- Page 19 5 12 10 mm (a) Apply silicone sealant along the length of the wall and at the bottom where the wall channel will be placed. 1242346-W2-D...
- Page 20 5 13 2 Persons (a) Install the first wall channel into the door frame and hold in position. (b) Install the door frame over the wall channel that had been secured to the wall earlier. Make sure that you do not smudge the silicone sealant applied in the previous step.
- Page 21 5 14 (a) Open the door. (b) Install the wall channel fixing screws through the access holes in the door frame. Note! The plastic sleeve is provided as an installation aid. (c) Fully tighten the fixing screws, making sure that the wall channel is upright. 1242346-W2-D...
- Page 22 5 15 ± 0 mm (a) Centralise the door frame within the wall channels, making sure that the door frame is square. 1242346-W2-D...
- Page 23 5 16 Side Profile 3.0 mm 90° (a) Using the 3.0 mm hexagonal wrench (supplied), turn through 90° clockwise to lock the door frame in position. (b) Fit the seals. 1242346-W2-D...
- Page 24 5 17 Top Roller (a) Turn the door so that it in the correct orientation. (b) Fully turn the allen key clockwise on both top rollers to lock rollers in uppermost position. (c) Refit the door by first locating the top roller assemblies on the track. (d) Fit the roller covers.
- Page 25 5 18 If the door is out of square, adjust as follows: (a) Unlock the roller assemblies (b) Adjust the door as required. (c) Lock the roller assemblies. (d) Fit the chrome covers. 1242346-W2-D...
- Page 26 5 19 Bottom Roller (a) Unlock the bottom roller assemblies. (b) Move the bottom roller assemblies up or down until they locate correctly in the bottom track and release correctly using the roller release buttons. (c) Lock the bottom roller assemblies. (d) Fit the chrome covers.
- Page 27 5 20 Note! Ensure infill strip is installed as illustrated with thicker section towards outside of enclosure. (a) Lubricate the rubber strip with washing up liquid or a suitable lubricant to help aid installation. (b) Install the rubber strip as shown above to both sides, working from top to bottom. (c) Install the infill strip.
- Page 28 5 21 Side Profile (a) Install the door seal and the magnetic seals. 1242346-W2-D...
- Page 29 5 22 5 23 5 24 2.0 mm 1242346-W2-D...
- Page 30 5 25 Note! Silicone should be applied vertically where the door jamb and wall channel join on the outside of the enclosure. Note! Silicone should be applied 10cm vertically up from the base on the glass/aluminum join on the outside of the enclosure on the fixed panel. Any excess silicone should be wiped clean.
-
Page 31: Maintenance
Chrome Parts Use only cleansers expressly specified for chrome! KOHLER Glass Cleaner For occasional cleaning of glass treated with KOHLER Glass Protector or for more regular maintenance of untreated surfaces, we recommend using KOHLER Glass Cleaner. The cleaner cleans and polishes without smearing or streaking and rejuvenates the Glass Protector. -
Page 32: Spare Parts
SPARE PARTS 1242346-W2-D... - Page 33 1781.484 Double Slider Door Spare 1781.485 1500 Slider Panel Spare 1781.486 1600 Slider Panel Spare 1781.487 1700 Slider Panel Spare 1857.284 Handle Spare 1781.419 Slider Top Bearing Spare 1781.420 Slider Bottom Bearing Spare 1781.377 Door Top Cap Spares 1781.380 Locking Mechanism Spare 1781.381 Infill Spare (1 set of rear door seals only, 2 required for both doors)
- Page 34 NOTES 1242346-W2-D...
-
Page 35: Declaration Of Performance
The performance of the products described above, are in conformity with the relevant community harmonisation legislation. This declaration of performance is issued under the sole responsibility of Kohler Mira Ltd. Signed for and on behalf of Kohler Mira Ltd. Signature:... - Page 36 United Kingdom and the Republic of Ireland). DAP 16.06.2013 5 013181 077131 Mira is a registered trade mark of Kohler Mira Limited. The company reserves the right to alter product specifi cations without notice. 1242346-W2-D © Kohler Co. January 2018...
