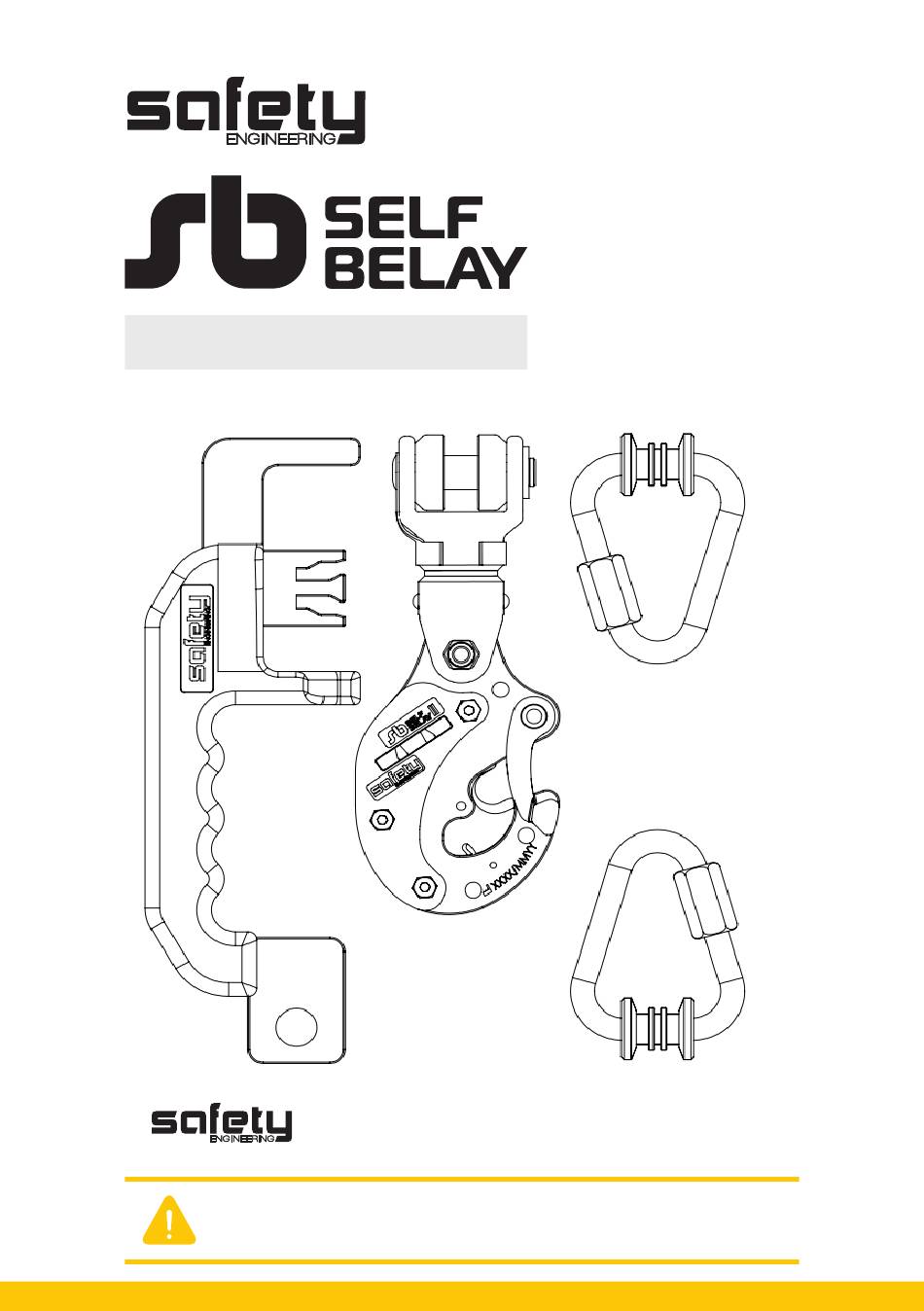

2.0
OPERATIONS MANUAL
by
Last revision: 2024-03-13
WARNING: INSTALLERS AND OPERATORS MUST READ THIS OPERATIONS
MANUAL AND COMPLETELY UNDERSTAND ALL REQUIREMENTS AND AGERE TO
MAINTENANCE GUIDELINES. THE FOLLOWING MANUAL IS ONLY INTENDED FOR
SELFBELAY 2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Self Belay 2.0 and is the answer not in the manual?

Questions and answers

Related Manuals for Safety Engineering Self Belay 2.0

Summary of Contents for Safety Engineering Self Belay 2.0

  • Page 1 OPERATIONS MANUAL Last revision: 2024-03-13 WARNING: INSTALLERS AND OPERATORS MUST READ THIS OPERATIONS MANUAL AND COMPLETELY UNDERSTAND ALL REQUIREMENTS AND AGERE TO MAINTENANCE GUIDELINES. THE FOLLOWING MANUAL IS ONLY INTENDED FOR SELFBELAY 2.0...

  • Page 2: Table Of Contents

    9.4. Installation of quicklinks to user harness .................. 11 9.5. Installation of Self Belay 2.0 key ......................13 10. Usage of the Self Belay 2.0 and Quicklink connector..............13 11. Inspection and maintenance ......................... 17 11.1. Daily inspection ............................17 11.2.

  • Page 3: Introduction And Overview

    1. Introduction and overview The Self Belay 2.0 is a safety connector that is used for securing oneself to the end of an auto belay device. It adds to the safety of climbing through its unique design. The Self Belay 2.0 Set is comprised of three main parts that come packaged inside the box.

  • Page 4: Product Identification

    2. Product identification Self Belay 2.0 devices are marked with some identifying information. The Self Belay 2.0 device and the accompanying quicklinks are marked individually. XXXX/MM/YY XXXX – Serial No. in batch MM – Month of manufacture (e.g. 03 - March) YY –...

  • Page 5: Certification

    Read the instructions for use Complies with Regulation 2016/425 of European Union 0123 Number of notified body performing conformity aseessment Safety Engineering Manufacturer MM/YY is the batch number MM - Month of manufacture (e.g. 03 - March) MM/YY is also the YY - Year of manufacture (e.g.

  • Page 6: Manufacturer's Details

    • For any other auto belay devices please consult Safety Engineering for confirmation. The Self Belay 2.0 set is compatible with harnesses that conform to the following standards: • EN 361 - Personal protective equipment for prevention of falls from a height – Full body harness.

  • Page 7: Device Specification

    10kN Self Belay 2.0 Set can be used with textile webbing that have width of min 20 mm – up to 25mm OR with steel cables that have diameters of not less than ø6.4 mm! – up to 10 mm Required strength for webbing and/or steel cables must be noted by the user/installer;...

  • Page 8: Installation

    Self Belay 2.0 Key Material: AISI 304; ABS 9. Installation In order to successfully install Self Belay 2.0 on auto belay devices, you will need the following tools: • A flat screwdriver • Set of pliers For installation on steel cable, see sections Prepare the Self Belay device(9.1) and Installation on steel cable (9.2).

  • Page 9: Prepare The Self Belay 2.0 Device

    9.1. Prepare the Self Belay 2.0 device The installation of the Self Belay 2.0 device on a textile webbing includes the following steps: Remove the lock washer with a flat screwdriver from the folding bolt: Do no try to install a damaged...

  • Page 10: Installation On Steel Cable

    9.2. Installation on steel cable With the Self Belay 2.0 device prepared, position the cable between the plastic washers: Insert the folding bolt and lock it to the body of the swivel. Make sure the bolt is securely fastened and cannot be detached from the device by hand.

  • Page 11: Installation On Textile Webbing

    9.3. Installation on textile webbing Self Belay 2.0 can be installed on textile webbing of width 20 mm to 25 mm. Installation on other webbing sizes is not recommended. Before you proceed, remove the plastic washers and keep them together with the original device packaging.

  • Page 12: Installation Of Quicklinks To User Harness

    Refer to section Compatibility with autobelay devices and harness for a list of compatible harnesses. WARNING: Use only harnesses compatible with the Self Belay 2.0. Usage of other types of harnesses is not supported and does not guarantee end user safety! Connect Self Belay 2.0 only to full body harnesses class A: fall arrest.

  • Page 13: Installation Of Self Belay 2.0 Key

    2.0 (together with Auto Belays) as prescribed in the manufacturer's operating instructions. Self Belay 2.0 Set Self Belay device is intended for use by a single person of weight no more than 130 kg, including their other personal protective equipment. It is strictly prohibited using the device to secure more than one person, or to use it to lift and transport goods.
  • Page 14 (or unlock) the Self Belay 2.0 Key fixed to the ground so that the key can be used to unlock the Self Belay 2.0 and the participant can be removed without any problems. If the Self Belay 2.0 Key cannot be released from the ground, then the staff must have a second (additional) Self Belay 2.0 Key to release...
  • Page 15 2:1, given that the maximum load permissible to be applied to a falling climber is 6kN. The connection of Self Belay 2.0 to the anchor device does not differ significantly from the way of connecting ordinary carabiners at Auto Belay.
  • Page 16 To detach: • Take the Self Belay 2.0 key and insert it all the way in the opening on the side of the Self Belay 2.0. • Push the gate inwards to open using your finger. • Pull the quicklink away from the device.

  • Page 17: Inspection And Maintenance

    2. Self Belay 2.0 key check Inspect closely the Self Belay 2.0 key; pay particular attention to the condition of the three pins. If any of the pins is bent, partly or completely broken, stop using the key and replace it immediately.
  • Page 18 If the swivel is deformed, damaged or shows signs of cracking, stop using the device immediately. Contact Safety Engineering for a replacement. 4.Self Belay 2.0 covers check The plastic covers on both sides should be inspected for cracks and damage; missing or damaged covers should be replaced in a timely manner.
  • Page 19 5.Self Belay 2.0 key measurement (Inspection required on weekly basis) Measure the width of the middle pin of the Self Belay 2.0 key as shown; measured value should be above 5.3 mm. This dimension is between 5.8 and 6.0 mm as manufactured; if the measured value is close (but still above) 5.3 mm, order replacement keys.
  • Page 20 With the quicklink inserted all the way, remove the key from the device; key should slide out easily without excessive effort. When the key is out of the device, verify that the Self Belay 2.0 is firmly locked and the quicklink cannot be taken out.

  • Page 21: General Care

    • Cleaning (device only): Clean the exterior of the Self Belay 2.0 device with a damp cloth with small amount of mild detergent. Do not submerge the device in water! Let the device dry completely before next use.

  • Page 22: Checklist

    Missing, damaged or Stop using the key immediately. Daily deformed middle pin? Self Belay 2.0 key Middle pin thickness below Stop using the key immediately. Weekly 5.3 mm? Damaged, deformed or Stop using the quicklink immediately.

  • Page 23: Annual Maintenance And Recertification

    Maintenance and repair must be performed by device manufacturer (Safety Engineering) or authorized representative of Safety Engineering. Unauthorized disassembly or repair are strictly forbidden. 11 months after the Self Belay 2.0 have been in use, the customer contacts the manufacturer (Safety Engineering) at support@safetyeng.eu or orders directly at https://safetyeng.eu/product/self-belay2-recertification-upgrade/ For a fixed price, the manufacturer sends out new or refurbished devices to the client.

  • Page 24: Lifespan

    12. Lifespan The Self Belay 2.0 has a lifespan of 12 months, which can be extended up to 5 years with re-certification. The lifespan of Self Belay 2.0 Key and Quicklink Delta assembly is 12 months, and the client is obliged to periodically monitor their condition during these 12 months.

  • Page 25: Declaration Of Conformity

    16. Product Inspection The product needs to be inspected at least once a year by the device manufacturer (Safety Engineering), or by an authorized representative of Safety Engineering. The following equipment record must be kept with this operation manual. Product name:...
