Summary of Contents for Omega OFI101XKIT

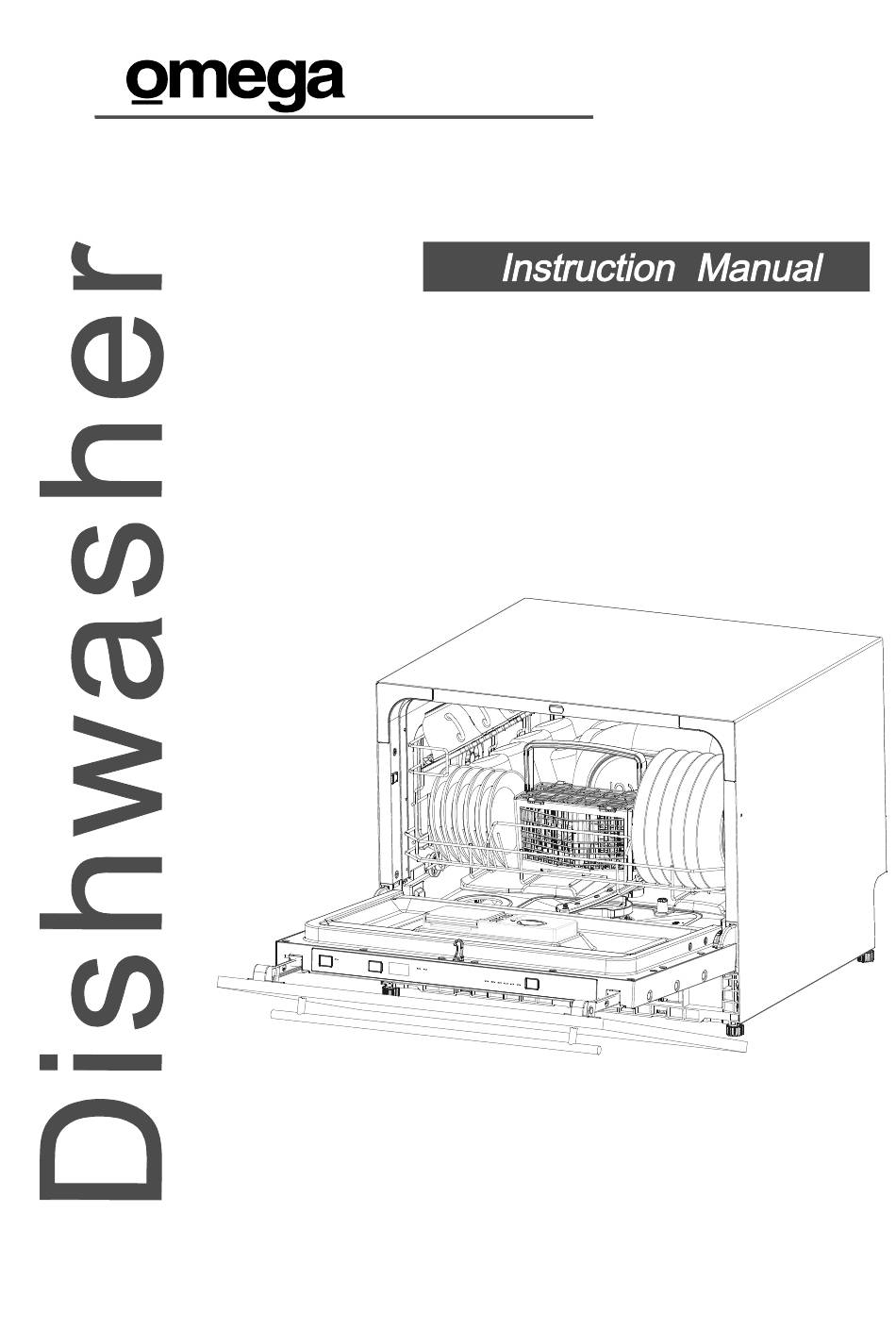

  • Page 1 OFI101XKIT...
  • Page 2 You are welcoming an Omega appliance into your place and you can be sure it'll always serve you well. For important information about your Omega such as warranty registration, online manuals, specifications and catalogues, please visit...
  • Page 3 For detailed operating method read the corresponding content on the instruction manual. Switch on the appliance Press the Power switch button to switch on the appliance, Open the door. For each wash cycle. Fill the detergent dispenser For programs with pre-wash only. (Follow the user instructions) Check the rinse aid level Electric indicator on control panel (if provided).
  • Page 5 When using your dishwasher, follow the precautions listed below: This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses; -by clients in hotels, motels and other residential type environments; -bed and breakfast type environments.
  • Page 6 Do not abuse, sit on, or stand on the door or dish rack of the dishwasher. Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.
  • Page 7 Dispose of the dishwasher packaging material correctly. All packaging materials can be recycled. Plastic parts are marked with the standard international abbreviations: for polyethylene, e.g. sheet wrapping material for polystyrene, e.g. padding material polyoxymethylene, e.g. plastic clips polypropylene, e.g. Salt filler Acrylonitrile Butadiene Styrene, e.g.
  • Page 8 To get the best performance from your dishwasher, read all operating instructions before using it for the first time. Tap Light : To be on when the faucet is opened. Power Button: To turn on/off the power supply. Power indicator Program indicator: Intensive, Heavy Normal Glass,90min,Rapid...

  • Page 9: How To Fill The Rinse Aid Dispenser

    Rinse Aid Dispenser The rinse aid is released during the final rinse to prevent water forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids.

  • Page 10: Adjusting Rinse Aid Dispenser

    Adjusting Rinse Aid Dispenser The rinse aid dispenser has six or four settings. Always start with the dispenser set on "4". If spots and poor drying are a problem, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to "5". If the dishes still are not drying properly or are spotted, adjust the dial to the next higher number until your dishes are spot-free.

  • Page 11: Proper Use Of Detergent

    Adding detergent to dispenser If the lid is closed: push the latch to open. Always add the detergent just before starting each wash cycle. Only use branded detergent and rinse aid for dishwasher. Dishwasher detergent is corrosive! Take care to keep it out of reach of children. Proper Use of Detergent Use only detergent specifically made for use in dishwashers.
  • Page 12 Consider buying utensils which are identified as dishwasher-proof. Use a mild detergent that is described as 'kind of dishes'. If necessary, seek further information from detergent manufacturers. For particular items, select a programme with as low a temperature. To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the programme has ended.
  • Page 13 Position the dishes and cookware so that they do not get moved by the spray of water. Cups Saucers Glasses Dessert dishes Dinner plates Soup plates Cutlery basket Cutlery should be placed into the cutlery basket with handles at the bottom. Soup spoons 2 Forks Knives...
  • Page 14 Pre-wash(50 ) Wash (55 ) For heaviest soiled crockery, 、 Rinse and normally soiled pots 0.85 5/17.5g 、 Rinse pans dishes etc with dried Intensive (1or2 pieces) Rinse(70 ) on soiling. Drying For heavily soiled loads, Pre-wash such as pots, plates, glasses Wash (60 ) and lightly soiled pans.
  • Page 15 Premise: You can modify the washing program, If the dishwasher just worked for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. in this case, the detergent dispenser must be refilled (see the section entitled "...

  • Page 16: Filter Assembly

    The filter prevent larger remnants of food or other objects from getting inside the pump. The filter system consists of a coarse filter, a flat (Main filter) and a micro filter (fine filter). Main filter Food and soil particles trapped by this filter are pulverized by a special jet on the spray arm and washed down to drain.

  • Page 17: Cleaning The Filter

    Notes: - Inspect the filters for blocking after every time the dishwasher has been used. - By unscrewing the coarse filter, you can remove the filter system.Remove any food remnants and clean the filters under running water. The entire filter assembly should be cleaned once a week. Cleaning The Filter To clean the coarse filter and the fine filter, use a cleaning brush.

  • Page 18: Cleaning The Spray Arms

    Cleaning the Spray Arms The spray arms can be easily removed for periodic cleaning of the nozzles to prevent possible clogging. Wash them under running water and carefully replace them in their seats, checking that their rotary movement is in no way impeded. Grasp the middle of the spray arm, pull it upwards to remove it.
  • Page 19 Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or wall. The dishwasher is equipped with water supply and drain hoses that can be positioned to the right or the left to facilitate proper installation. Step 1a: If only the body into cabinets, please make this map the size of the cabinet hole.
  • Page 20 Step1b: If the entire decorative panel into the cabinet also, the size of A should be equal to D +9.5; size B should be equal to C +6; Meanwhile, the cabinet around the inward booster: both sides of the (C-555) / 2 +3; C, D and E as the second step within the relevant size decorative panels;...
  • Page 21 Step 2: Weight of the decorative panel should be min 3Kg-max 4Kg. Dim.A and B could be alterable by handle, Dim.C,D and E could be alterable by fact, Dim.E should be in range 16~22mm, besides the appliance assembling decorative panel decorative panel...
  • Page 22 Step 3: Assemble the decorative panel If the m achine with a decorative plate, no this step. Cabinet base board Step 4: Assemble the decorative door on the dishwasher, as figure. First install screw between the cabinet base board and decorative panel ,in all 16;...
  • Page 23 Step 5: Install the adjust screw into the base Step 6: Install the dishwasher in aperture, but not full, as figure, adjust screw, let its bottom align apertureЎs base, then push dishwasher full.
  • Page 24 For personal safety: Do not use an extension cord or an adapter plug with this appliance. Do not cut or remove the earthing under any circumstances . Connection from the power cord. Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.
  • Page 25 Insert the drain hose into a drain pipe with a minimum diameter of 4cm, or let it run into the sink, making sure to avoid bending or crimping it. The free end of the hose must be at a height lower than 30 cm and must not be immersed into water to avoid the backflow of it.

  • Page 26: Water Outlet

    How to Drain Excess Water From Hoses If the sink is more than 300mm higher than the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.
  • Page 27 Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other circuit breaker tripped. appliances sharing the same circuit with the dishwasher Power supply is not Make sure the dishwasher is turned on and the door is turned on. closed securely.
  • Page 28 The dishes were not See notes in " Loading the Dishwasher Baskets ". loaded correctly. The program was Select a more intensive programme. not powerful enough. See" Wash Cycle Table ". Not enough detergent Use more detergent, or change your detergent. was dispensed.
  • Page 29 The dimensions with * variable according to actual situation Height : 452mm(without decorative panel) Width : 550mm(without decorative panel) Depth : 518mm(without decorative panel) Voltage connected Load : see rating label Water pressure: 0.04-1.0MPa Power supply: see rating label Capacity: 6 Place settings...
