Summary of Contents for CDA CRI851

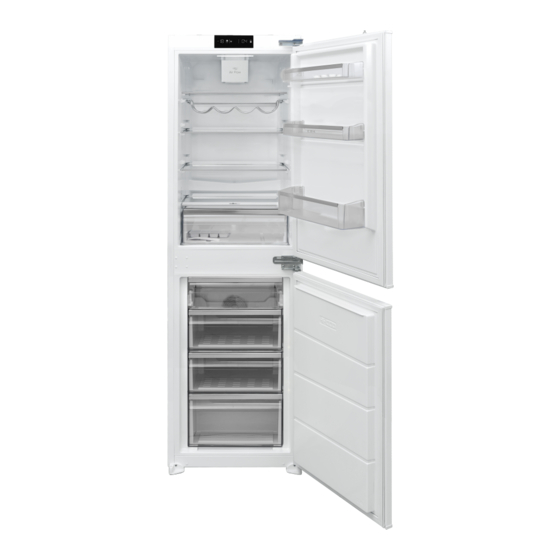

- Page 1 CRI851 Integrated fridge freezer Installation, use and maintenance www.cda.co.uk...
- Page 2 Appliance information: Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a fault with your appliance and to register your appliance for guarantee purposes. Appliance Model...
- Page 3 This appliance has been manufactured to the strictest standards and complies with all applicable legislation, including Electrical safety (LVD) and Electromagnetic interference compatibility (EMC). Parts intended to come into contact with food conform to 1935/2004/EC. This refrigeration appliance is intended for use as a built-in appliance. IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2012/19/EU.
-
Page 4: Important Safety Warnings
Important safety warnings • Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. • This appliance is intended to be used in household and similar applications such as: 1. Staff kitchen areas in shops, offices and other working environments 2. - Page 5 • When placing, moving, lifting the appliance, do not hold the door handles, do not pull the condenser at the rear part of the refrigerator and do not touch the compressor unit. • When transporting, moving or positioning the fridge-freezer do not tilt it by more than 40°...
- Page 6 eyes, rinse them with clean water and call for medical assistance immediately. • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard. • This appliance is intended for food storage, do not use it for other purposes.
- Page 7 • Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. To avoid contamination of food, please respect the following instructions: • Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. •...
- Page 8 • The list of spare parts and the ordering procedure are available on the websites of the manufacturer, importer or an authorized representative. • For more information about the product, please refer to the EU EPREL Product Database at https://eprel. ec.europa.eu. For more information, please use your mobile device to scan the QR code on the energy label or enter the product model listed on the energy label in the EPREL search engine https://eprel.ec.europa.
- Page 9 Controls Freezer set value screen. Cooler set value screen. Mode button. (Enables the modes economy, holiday, etc. to be activated if desired.) Freezer set button. (Enables the setting of the freezer to be modified and super freeze mode to be activated if desired. The freezer may be set to -16, -18, -20, -22, or -24°C.) Cooler set button.
- Page 10 Adjusting the temperature The initial temperature value for the freezer setting indicator is -18°C, this can be adjusted. • Press the set freezer button once. • Once pressed, the last set value will blink on the screen. • Continuing to press this button will set a lower temperature (-16 °C, -18 °C, -20 °C, -22 °C, -24 °C, super freeze).
- Page 11 freeze mode, super cool mode or economy mode is activated and will remain the same when the mode is over or cancelled. The appliance continues to operatewith this temperature value. Super freeze mode To activate the super freeze mode, press the freezer set button until the super freeze symbol shows on the screen and the buzzer sounds to indicate that the mode is set.
- Page 12 During this mode: • Temperature of the freezer and super freeze mode may be adjusted. In this case super cool mode continues. • Economy and holiday mode cannot be selected. • Super cool mode can be cancelled by the same operation of selecting.
- Page 13 Holiday mode To activate the holiday mode, push the “MODE” button until holiday symbol appears. • If no button is pressed for 1 second, the mode will be set, indicated by the holiday symbol blinking 3 times and the buzzer sounding.
- Page 14 • A special animation will start on freezer set value screen and 05 will blink on cooler set value screen. • Press cooler button to adjust the time (05 - 10 - 15 - 20 - 25 - 30 minutes). •...
- Page 15 • To reactivate screen saving mode, press and hold the “MODE” button for 3 seconds. Stand-by mode This mode saves energy whilst the home is unoccupied during holiday/time away from the home. • To activate this mode, select “8” set value. •...
- Page 16 stated in the information label. It is not recommended that your fridge is operated in the environments which are outside of the stated temperature ranges. This will reduce the cooling efficiency of the appliance. • Temperature adjustments should be made according to the frequency of door openings, the quantity of food kept inside the appliance and the ambient temperature in the location of your appliance.
- Page 17 • The storage of vegetables containing significant quantities of water will cause the deposition of condensation on the vegetable containers, it does not impact on the proper functioning of the fridge. • Before putting the vegetables into the fridge, dry them well. •...
- Page 18 the food that is in the middle of the freezer, so that it does not touch the products that are not yet frozen. • It is recommended that you move the already frozen products to one side and place the fresh products that are to be frozen on the opposite side, as close to the rear and side walls as possible.
- Page 19 them once or twice a year. • Select the right temperature: 6 to 8°C in your refrigerator and -18°C in your freezer is sufficient. • When on holiday, turn up the temperature in your fridge. • Only open your fridge or freezer when necessary. It helps if you know what food each contains and where it is located.
- Page 20 - Fruit and vegetables which are sensitive to cold - Fruit which is not yet ripe - Potatoes To achieve the most effective food preservation for the longest possible time and to avoid wasting any food, position the products as shown in Figure 12. In addition, this figure illustrates the layout of drawers, baskets and shelves, which allows the most efficient use of energy.
- Page 21 Climate range The information about the climate range of the appliance is provided on the rated plate. It indicates at which ambient temperature (that is, room temperature, in which the appliance is working) the operation of the appliance is optimal (proper). Climate class Allowable ambient temperature Extended...
-
Page 22: Recommended Storage
Recommended storage Compartment Target Appropriate food type storage temp. Fridge +2≤+8 Eggs, cooked food, packaged food, fruits and vegetables, dairy products, cakes, drinks and other foods are not suitable for freezing. Freezer ≤-18 Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), suitable for frozen fresh food. -
Page 23: Care And Cleaning
Care and cleaning Always disconnect the appliance from the power supply before any cleaning or maintenance. Never clean the product’s casing or plastic parts using solvents or strong, abrasive detergents (e.g. washing powders or creams)! Use mild liquid detergents and soft cloths only. Do not use sponges. External surfaces made of plastic should be cleaned with a microfiber cloth, otherwise irreversible micro scratches will appear. - Page 24 • The whole appliance, except for the door gasket must be cleaned with a mild cleaning detergent. The door gasket should be cleaned with water and wiped dry. • Wash all the accessories (vegetable containers, door shelves, glass shelves, etc.) Defrosting the freezer •...
-
Page 25: Troubleshooting
Troubleshooting If you have any problems with your appliance, you should check the troubleshooting prior to calling CDA Customer Care, to prevent unnecessary service calls and potential cost. CDA Customer Care Phone: 01949 862 012 Email: customer.care@cda.co.uk Certain sounds can be heard during normal use of the refrigerator, which do not affect its correct operation. - Page 26 Issue Possible cause Remedies The electric circuit is • Check whether the plug is properly appliance disrupted inserted into the socket does not • Check whether the power cable of work the appliance is not damaged • Check whether there is voltage in the socket, by plugging another appliance, e.g.
- Page 27 Issue Possible cause Remedies Incorrect setting of the Reset the knob to a higher adjustment knob position The ambient temperature The appliance is adapted to is higher or lower than the operation in the climate range climate range from table with from table with technical technical specification specification...
-
Page 28: Installation
Installation This refrigeration appliance is intended for use as a built-in appliance. Installation before using the appliance for the first time • Take the product out of the package, remove the scotch tape protecting the door and the equipment. Any remaining adhesive stains may be removed with a mild washing agent. - Page 29 WARNING: Keep ventilation openings, in the appliance enclosure or in the built - in structure, clear of obstruction Minimum distances from the heat sources • from the electric gas and other ovens - 30 mm • from oil or coal fired ovens - 300 mm •...
- Page 31 Notes...
- Page 32 The Customer Care Department on or email co.uk For more information please contact: The Sales Department on 01949 862 010 or email sales@cda.co.uk Customer Care Department. The CDA Group Ltd, Harby Road, Langar, Nottinghamshire, NG13 9HY 01949 862 012 01949 862 003 customer.care@cda.co.uk...
