FOR YOUR SAFETY - This product must be installed and serviced by a contractor who is licensed and
qualified in pool equipment by the jurisdiction in which the product will be installed where such state or
local requirements exist. The maintainer must be a professional with sufficient experience in pool equipment
installation and maintenance so that all of the instructions in this manual can be followed exactly. Before
installing this product, read and follow all warning notices and instructions that accompany this product.
Failure to follow warning notices and instructions may result in property damage, personal injury, or death.
Improper installation and/or operation may void the warranty. DO NOT MODIFY THIS EQUIPMENT.
Improper installation and/or operation can create unwanted electrical hazard which can
cause serious injury, property damage, or death.
ATTENTION INSTALLER - This manual contains important information about the installation,
operation and safe use of this product. This information should be given to the owner/
operator of this equipment.
INSTALLATION AND
OPERATION MANUAL
ENGLISH | FRANÇAIS | ESPAÑOL

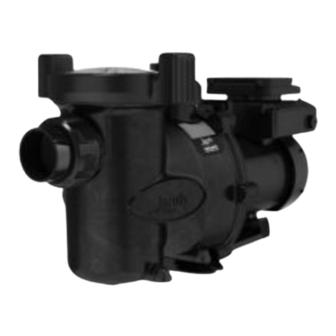

Variable-Speed Pumps
VSFHP130DV
VSFHP165DV
VSFHP185DV
WARNING
Jandy
VSFHP130DVS
VSFHP165DVS
VSFHP185DVS
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Jandy VSFHP130DV
Summary of Contents for Jandy VSFHP130DV
- Page 1 INSTALLATION AND OPERATION MANUAL ENGLISH | FRANÇAIS | ESPAÑOL Jandy Variable-Speed Pumps VSFHP130DVS VSFHP130DV VSFHP165DVS VSFHP165DV VSFHP185DVS VSFHP185DV WARNING FOR YOUR SAFETY - This product must be installed and serviced by a contractor who is licensed and qualified in pool equipment by the jurisdiction in which the product will be installed where such state or local requirements exist.
-
Page 2: Table Of Contents
Page 2 ENGLISH Jandy Variable-Speed Pumps, DV/DVS Models Installation & Operation Manual ® Table of Contents Section 1. Important Safety Instructions ..3 Section 5. Service & Maintenance ....17 Safety Instructions ..........3 Removing the Pump Lid ........17 Pool Pump Suction Entrapment Prevention Winterizing the Pump ........ -
Page 3: Section 1. Important Safety Instructions
Jandy pumps are powered by a high voltage electric motor and must be installed by a licensed or certified electrician or a qualified swimming pool service technician. WARNING Due to the potential risk of fire, electric shock, or injuries to persons, Jandy pumps must be installed in accordance with the National Electrical Code (NEC ), all local electrical and safety codes, and the Occupational Safety ®... - Page 4 Page 4 ENGLISH Jandy Variable-Speed Pumps, DV/DVS Models Installation & Operation Manual ® WARNING • Do not connect the system to an unregulated city water system or other external source of pressurized water producing pressures greater than 35 PSI. • Trapped air in system can cause the filter lid to be blown off, which can result in death, serious personal injury, or property damage.
-
Page 5: Pool Pump Suction Entrapment Prevention Guidelines
Page 5 ENGLISH Jandy Variable-Speed Pumps, DV/DVS Models Installation & Operation Manual ® Pool Pump Suction Entrapment Prevention Guidelines WARNING SUCTION HAZARD. Can cause serious injury or death. Do not use this pump for wading pools, shallow pools or spas containing bottom drains, unless the pump is connected to at least two (2) functioning suction outlets. -
Page 6: Section 2. General Description
This manual contains information for the proper installation, operation, and maintenance of specific Jandy variable- speed pumps. Procedures in this manual must be followed exactly. To obtain additional copies of this manual, visit Jandy.com. -
Page 7: Product Specifications
Installation & Operation Manual ® Product Specifications 2.3.1 Specifications Model No. Voltage Max Watts Max Amps Union Size Weight 11.0 230 VAC 39.3 lb VSFHP130DV(S) 1.30 1100 2" [17.8 kg] 10.9 115 VAC 15.6 230 VAC 10.5 39.3 lb VSFHP165DV(S) 1.65 1700 2"... - Page 8 Page 8 ENGLISH Jandy Variable-Speed Pumps, DV/DVS Models Installation & Operation Manual ® POOL/SPA PUMP 3 WAY VALVE FILTER HEATER SKIMMER CHECK VALVE (Check Valve recommended for systems installed with Erosion Feeders or Aquapure salt chlorination systems) ® SPA DRAIN...
-
Page 9: Section 3. Installation Information
Page 9 ENGLISH Jandy Variable-Speed Pumps, DV/DVS Models Installation & Operation Manual ® Section 3. Installation Information Install the pump such that any disconnecting means and/or junction boxes for power connection Plumbing are within sight of the pump and at least five feet horizontally from the edge of the pool and/or spa. - Page 10 The piping must be well supported and not forced Air Lock together where it will experience constant stress. Always use properly sized valves. Jandy Diverter Valves and Ball Valves typically have the best flow capabilities. Bad Install Use the fewest possible fittings and limit the use of 90 degree elbows.
-
Page 11: Electrical Installation
Class: CC, G, H, J, K, RK, or T 230 VAC 115 VAC 230 VAC 115 VAC 230 VAC 115 VAC 230 VAC 115 VAC VSFHP130DV 14 AWG 12 AWG 12 AWG 10 AWG 10 AWG 6 AWG VSFHP130DVS (2.1mm (3.3mm... - Page 12 Jandy Automation System. This auto sensing power circuit eliminates the need for Dip Switches 1-2 that are present on other Jandy Pumps. Ensure power to the pump is disconnected and remove the access cover on the motor. Connect the RS-485 cable through the liquid tight cord grip fitting supplied as shown in Figure 8.
- Page 13 Page 13 ENGLISH Jandy Variable-Speed Pumps, DV/DVS Models Installation & Operation Manual ® for detailed instructions on installation and programming. Bonding Lug RS-485 Cable (22 AWG) 1-RED 2-BLACK 3-YELLOW 4-GREEN Liquid Tight Cord Grip Detail A Wire Order: Power and Ground...
-
Page 14: Pump Dip Switch Settings
Utilize the App or other a 2022 mid-year update alters the method in which device to complete pump setup. pumps in this manual interact with Jandy AquaLink RS systems. Refer to the RS manual for more information. -
Page 15: Conduct Pressure Test
Jandy SpeedSet controller. 3.3.6 Other Jandy Automation Systems Seal Other Jandy automation systems support up to four (4) Blue Pressure Test O-ring variable-speed pumps utilizing DIP Switches 3-4 in the same manner as defined in Section 3.3.3. Figure 11. Blue Pressure Test O-Ring... -
Page 16: Section 4. Operation
Page 16 ENGLISH Jandy Variable-Speed Pumps, DV/DVS Models Installation & Operation Manual ® See Installation Recommendations in Section 3.1.3 for Section 4. Operation proper elevation and pipe size. Start-up The default priming speed is 2750 RPM. The pump will take approximately 15 minutes to prime at this priming... -
Page 17: Section 5. Service & Maintenance
Dispose of the debris and thoroughly clean the basket, making sure all the holes are open. Using In Canada, Jandy Pumps must be installed in accordance with the Canadian Electrical Code (CEC). a garden hose, spray the basket from the outside to help clear the holes. -
Page 18: Winterizing The Pump
Page 18 ENGLISH Jandy Variable-Speed Pumps, DV/DVS Models Installation & Operation Manual ® Winterizing the Pump Lid with CAUTION Locking Ring The pump must be protected when freezing temperatures are expected. Allowing the pump to freeze will cause severe damage and may void the warranty. -
Page 19: Section 6. Troubleshooting And Repair
Page 19 ENGLISH Jandy Variable-Speed Pumps, DV/DVS Models Installation & Operation Manual ® Section 6. Troubleshooting and Repair Zodiac Pool Systems LLC strongly recommends that you call a qualified service technician to perform any repairs on the filter/pump system. To locate a qualified technician, check your local yellow pages or visit ZodiacPoolSystems. -
Page 20: Service Technician Maintenance
Page 20 ENGLISH Jandy Variable-Speed Pumps, DV/DVS Models Installation & Operation Manual ® Symptom Possible Cause/Solution Make sure that there is adequate room around the motor to circulate air and keep the motor cool. Have a qualified electrician check for loose connections and check the The motor gets hot and voltage at the motor while it is in operation. -
Page 21: Section 7. Product Specifications And Technical Data
Exploded view for general reference only. Specific models may differ. Please refer to the contact information below to obtain spare parts information for specific pump models. For a complete list of replacement parts, please visit www. Jandy.com or contact Zodiac Technical Support at 1.800.822.7933 or email productsupport@fluidra.com. In Canada, please call 1.888.647.4004 or email customer.service@fluidra.com. -
Page 22: Performance Curves
Page 22 ENGLISH Jandy Variable-Speed Pumps, DV/DVS Models Installation & Operation Manual ® Performance Curves VSFHP130DV(S) Pump Curves - 115V/230V 3450 RPM 3000 RPM 2750 RPM 2400 RPM 1730 RPM 1200 RPM 600 RPM Flow Rate - Gallons per Minute (GPM) - Page 23 Page 23 ENGLISH Jandy Variable-Speed Pumps, DV/DVS Models Installation & Operation Manual ® VSFHP185DV(S) Pump Curves - 115V/230V 3450 RPM 3000 RPM 2750 RPM 115 VAC 2400 RPM 1730 RPM 1200 RPM 600 RPM Flow Rate - Gallons per Minute (GPM)
- Page 24 Zodiac Pool Systems LLC 2882 Whiptail Loop #100, Carlsbad, CA 92010 Zodiac Pool Systems Canada, Inc. 2-3365 Mainway, Burlington, ON L7M 1A6 Canada USA | Jandy.com | 1.800.822.7933 ETL LISTED CONFORMS TO Canada | Jandy.ca | 1.888.647.4004 UL STD 1081 ©2023 Zodiac Pool Systems LLC.
