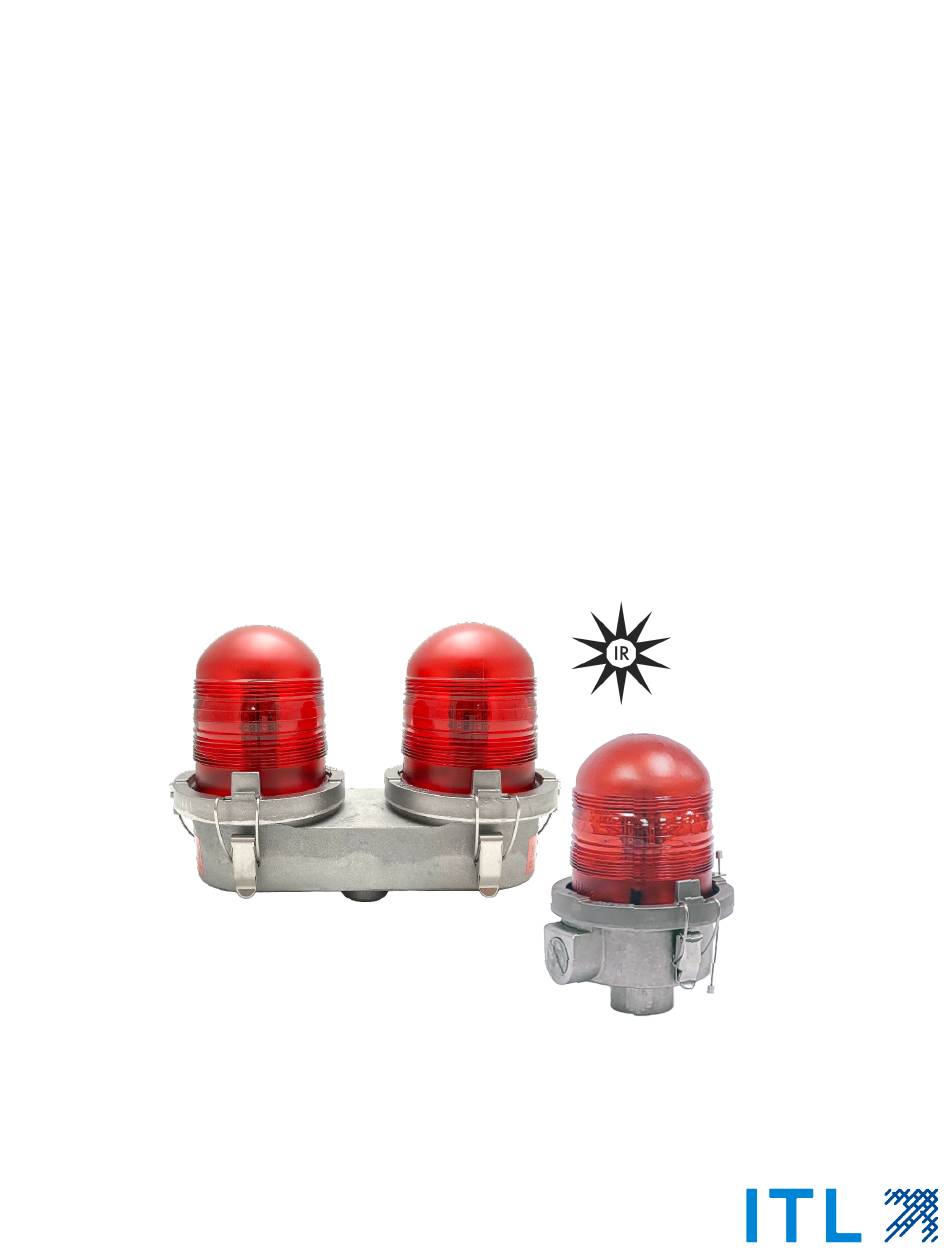

- Page 1 Installation Manual MKR-LTG1-0IR MKR-LTG2-0IR-FB Single and Double Red/Infrared LED Obstruction Lights itl-llc.com Toll Free: +1 (866) 624-8309...
-
Page 2: Front Matter
ITL, LLC to obtain a Return Authorization Number, RMA. In no event shall ITL, LLC’s liability exceeds the price paid for the product from direct, indirect, special, incidental, or consequential damages resulting from the use of the product, its accompanying software, or its documentation. -
Page 3: Safety Warning
(HV1, HV2) using a DC voltmeter to ensure that power is off and has been completely removed before servicing. Do not wear any jewelry. Gold and silver are excellent conductors of electricity. This equipment emits near infrared radiation. Avoid direct eye exposure. DOC-MKR-LTG-MNL Rev3.Docx Copyright 2024 ITL, LLC Page 3 of 10... -
Page 4: Table Of Contents
Grounding ..................................8 Maintenance ..........................9 Technical Support and Contact Information ................10 Contact Information ..............................10 Web and Internet Sites .............................. 10 Customer Support Technicians ..........................10 RMA .................................... 10 DOC-MKR-LTG-MNL Rev3.Docx Copyright 2024 ITL, LLC Page 4 of 10... -
Page 5: Introduction
LEDs, infrared (IR) emitters are included to enhance conspicuity for personnel using Night Visions Systems (NVS) and Night Vision Goggles (NVG). The ITL, LLC L-810(L) / L-810F(L) red obstruction light has been tested for compliance with applicable FAA and Transport Canada specifications for marking hazards to air navigation such as towers, smokestacks, or similar structures. -
Page 6: Specifications
Weight 2 lbs (0.9 kg) max 5 lbs (2.3 kg) max Electrical Input Power 100 to 240 VAC at 50/60 Hz Power Consumption (max.) 7W, MKR-LTG1-0IR 14W, MKR-LTG2-0IR-FB (double) DOC-MKR-LTG-MNL Rev3.Docx Copyright 2024 ITL, LLC Page 6 of 10... -
Page 7: Installation
Quick Installation The MKR-LTG1-0IR L-810(L) LED Single Obstruction Light has ¾” NPT side and bottom hubs available for mounting. The MKR-LTG2-0IR-FB LED Double Obstruction Light has a ¾” NPT bottom hub available for mounting. All fixtures, enclosures and junction boxes must be mounted in the upright position. -
Page 8: Installation Wiring Diagram
Sample connections for typical LED obstruction lights are shown in the diagrams below. Obstruction Wiring Diagram for MKR-LTG1-0IR Single and MKR-LTG2-0IR-FB Double Grounding The metal base of the Side Light must be grounded as shown. The grounding screw includes a square washer which accepts stripped copper wire or terminal lugs. -
Page 9: Maintenance
• gaskets or seals. Install plugs to close any unused conduit ports that may allow insect infiltration. Verify that all breathers and drain holes are clear of blockages. • DOC-MKR-LTG-MNL Rev3.Docx Copyright 2024 ITL, LLC Page 9 of 10... -
Page 10: Technical Support And Contact Information
For information on the MKR-LTG LED obstruction lights’ basic functions, refer to this manual and the accompanying drawings. For additional help with the installation or operation of any ITL products, please contact ITL, LLC at one of the following below.
