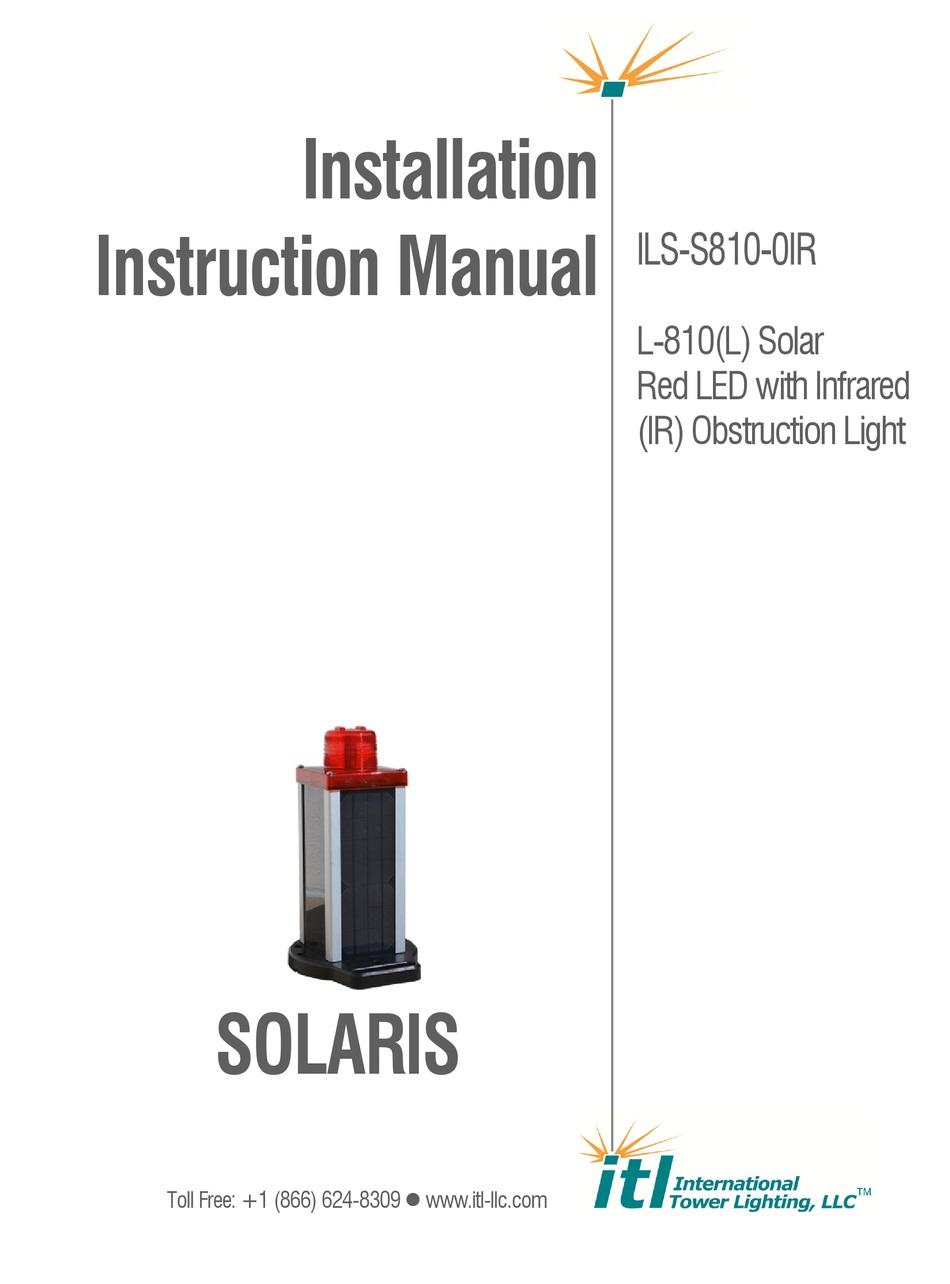

- Page 1 Installation Instruction Manual ILS-S810-0IR L-810(L) Solar Red LED with Infrared (IR) Obstruction Light SOLARIS Toll Free: +1 (866) 624-8309 www.itl-llc.com...
-
Page 2: Front Matter
If the product proves defective during this warranty period, please contact ITL, LLC in order to obtain a Return Authorization Number, RMA. In no event shall ITL, LLC’s liability exceed the price paid for the product from direct, indirect, special, incidental, or consequential damages resulting from the use of the product, its accompanying software, or its documentation. -
Page 3: Table Of Contents
Lens Replacement ......................16 Technical Support and Contact Information ..............17 Contact Information ...................... 17 ..........................17 Appendix A – Troubleshooting ..................18 DOC-S810-0IR-MNL Rev1.doc (9/22/2021) Copyright 2021 ITL, LLC Page 3 of 18... -
Page 4: List Of Illustrations And Tables
Figure 5: Spare Part Locations ..................12 Figure 6: Battery Assembly ..................... 14 Figure 7: Battery Charging ....................15 Figure 8: Lens Assembly ....................16 DOC-S810-0IR-MNL Rev1.doc (9/22/2021) Copyright 2021 ITL, LLC Page 4 of 18... -
Page 5: Introduction
The ILS-S810-0IR Solar Red LED with Infrared (IR) obstruction light utilizes LED technology and Fresnel Optics to provide a reliable solar power lighting solution. The ITL, LLC L-810(L) Solar Red LED with Infrared (IR) obstruction light complies with applicable FAA specifications for marking hazards to air navigation such as towers, smoke stacks or similar structures. -
Page 6: Specifications
Weight: 14.0 lbs. (6.4 Kg) Voltage: Battery: 6 - 12 VDC Input: 7 - 12 VDC (1 A max) Temperature: -40°C to +55°C Humidity: less than 95%, non-condensing DOC-S810-0IR-MNL Rev1.doc (9/22/2021) Copyright 2021 ITL, LLC Page 6 of 18... -
Page 7: Installation
The ILS-S810-0IR must be mounted in the upright position. Use the mounting kit to attach the base. Do not mount in an area that is often shaded. Visually verify proper day/night operation. DOC-S810-0IR-MNL Rev1.doc (9/22/2021) Copyright 2021 ITL, LLC Page 7 of 18... -
Page 8: Infrared Remote Control
The Channel Up button is used for turning On a function and the Channel Down for turning Off a function. Figure 2: Infrared Remote Control Port DOC-S810-0IR-MNL Rev1.doc (9/22/2021) Copyright 2021 ITL, LLC Page 8 of 18... -
Page 9: Leveling
Place the level across the base as shown and repeat on an adjacent side to level both axis. Figure 3: Leveling DOC-S810-0IR-MNL Rev1.doc (9/22/2021) Copyright 2021 ITL, LLC Page 9 of 18... -
Page 10: Mounting Detail
ILS-S810-0IR Mounting Detail Figure 4: Outline Dimension sand Mounting Detail DOC-S810-0IR-MNL Rev1.doc (9/22/2021) Copyright 2021 ITL, LLC Page 10 of 18... -
Page 11: Bird Deterrent Installation
ILS-S810-0IR Bird Deterrent Installation 1. Align bird deterrent wires with snap-in slots 2. Snap bird deterrent wires into slots 3. Complete remaining bird deterrent wire installation DOC-S810-0IR-MNL Rev1.doc (9/22/2021) Copyright 2021 ITL, LLC Page 11 of 18... -
Page 12: Spare Parts
S810 Battery Pack ILS-S810-CHG Battery Charger (not shown) HAR-S810-PWR Battery Connector Wiring Harness ILS-S810-IRC Infrared Remote Control (not shown) ILS-S810-BRD Bird Deterrent (not shown) Figure 5: Spare Part Locations DOC-S810-0IR-MNL Rev1.doc (9/22/2021) Copyright 2021 ITL, LLC Page 12 of 18... -
Page 13: Maintenance
Check the battery voltage by removing the lens and then testing the terminals of the battery connector with a multimeter. Ensure that no water is present inside the housing. DOC-S810-0IR-MNL Rev1.doc (9/22/2021) Copyright 2021 ITL, LLC Page 13 of 18... -
Page 14: Battery Replacement
9. Ensure the gasket is flush in the gasket channel (ILS-S810-GSL). 10. Slide the battery and base back into the fixture and replace the base screws (see figure 6 for more details). Figure 6: Battery Assembly DOC-S810-0IR-MNL Rev1.doc (9/22/2021) Copyright 2021 ITL, LLC Page 14 of 18... -
Page 15: Battery Charging
Figure 7: Battery Charging Long Term Storage 1. Remove the lens screws from the lens and fixture body (HDW-2520-125S). 2. Disconnect the Battery Cable by unplugging the 5-position green connector. DOC-S810-0IR-MNL Rev1.doc (9/22/2021) Copyright 2021 ITL, LLC Page 15 of 18... -
Page 16: Lens Replacement
6. Reconnect the battery cable and solar panel cable. 7. Replace lens on body and secure with lens screws. (see figure 8 for more details). Figure 8: Lens Assembly DOC-S810-0IR-MNL Rev1.doc (9/22/2021) Copyright 2021 ITL, LLC Page 16 of 18... -
Page 17: Technical Support And Contact Information
For information on the ILS-S810-0IR Solar Red LED with Infrared (IR) obstruction lights’ basic functions, refer to this manual and the accompanying drawings. For additional help with the installation or operation of any ITL products, please contact ITL, LLC at one of the following below. -
Page 18: Appendix A - Troubleshooting
Date Preparer / Approval Initial Release 3/3/2021 Prepared By: Elke Hinson Approved By: Andy Rudolph Updated Title, added “SOLARIS”. 9/22/2021 Prepared By: Elke Hinson Approved By: Andy Rudolph DOC-S810-0IR-MNL Rev1.doc (9/22/2021) Copyright 2021 ITL, LLC Page 18 of 18...
