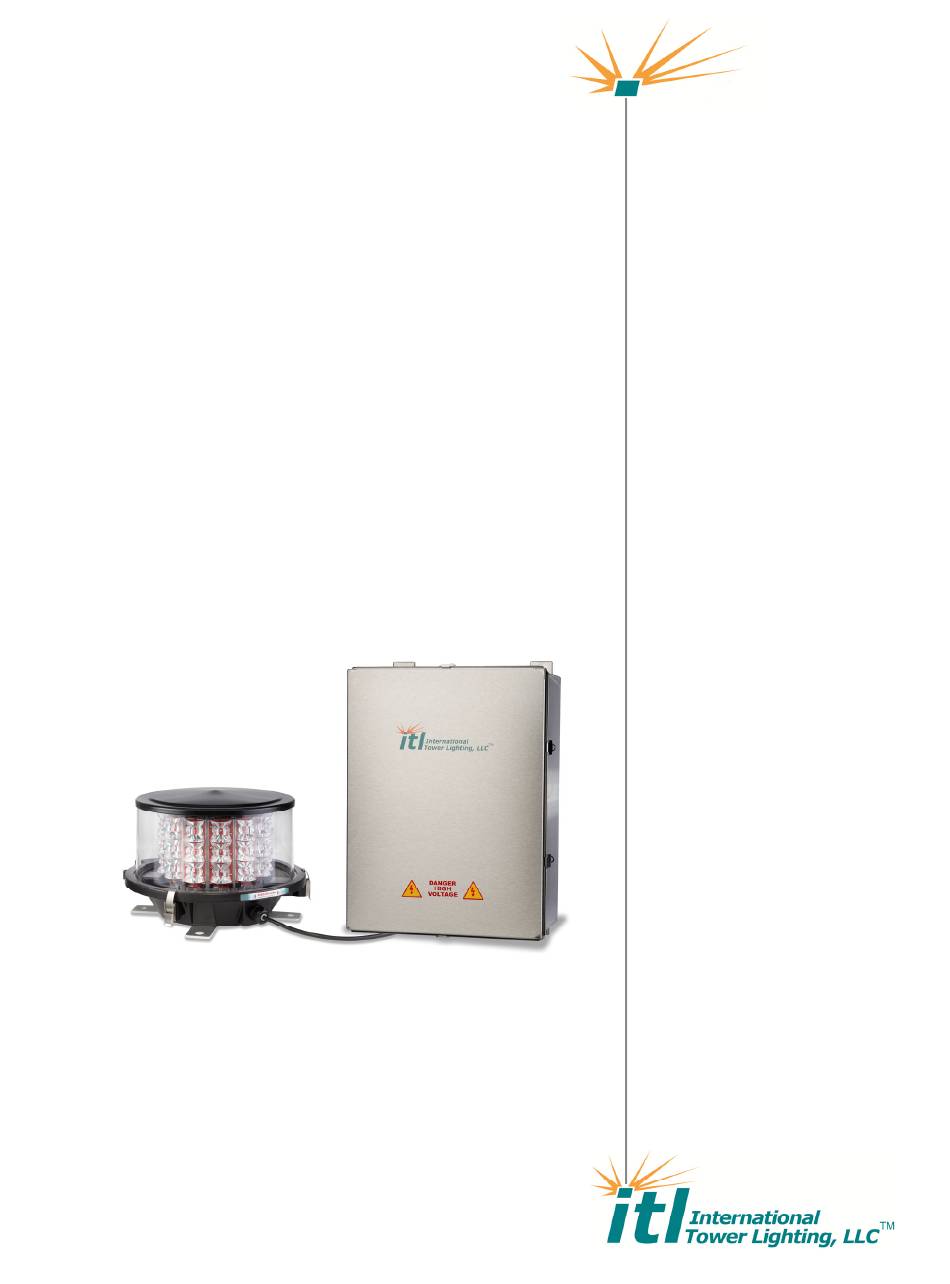

ITL ILS-1700-CAT Installation And Operation Manual

Led red catenary obstruction lighting system

Advertisement

Quick Links

Installation
ILS-1700-CAT
and
LED Red Catenary
Operation
Obstruction Lighting
System
Manual
Toll Free: +1 (866) 624-8309  www.itl-llc.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ILS-1700-CAT and is the answer not in the manual?

Questions and answers

Summary of Contents for ITL ILS-1700-CAT

  • Page 1 Installation ILS-1700-CAT LED Red Catenary Operation Obstruction Lighting System Manual Toll Free: +1 (866) 624-8309  www.itl-llc.com...
  • Page 2: Front Matter

    ITL, LLC. ITL, LLC and the ITL logo are trademarks of ITL, LLC. All other trademarks and brand names are the property of their respective proprietors.
  • Page 3: Safety Warning

    Do not wear any jewelry. Gold and silver are excellent conductors of electricity.  Copyright 2000-2015 ITL, LLC Page 3 of 20 DOC-ILS-1700-CAT-MNL Rev3.doc (5/12/2015)
  • Page 4: Table Of Contents

    Indicator Lights......................18   Spare Parts & Replacement Parts ................... 19   Technical Support and Contact Info ................20   Contact Info ......................... 20   ..........................20    Copyright 2000-2015 ITL, LLC Page 4 of 20 DOC-ILS-1700-CAT-MNL Rev3.doc (5/12/2015)
  • Page 5: List Of Illustrations And Tables

    Figure 13: RLC-0236-000 Indicator Lights Table ............. 18   Figure 14: RLC-0236-000 Alarm Board Indicator Lights Table ........19   Figure 15: RLC-0236-000 Spare Parts & Replacement Parts List Table ......19    Copyright 2000-2015 ITL, LLC Page 5 of 20 DOC-ILS-1700-CAT-MNL Rev3.doc (5/12/2015)
  • Page 6: Introduction

    Obstruction Lighting System. Product Description The ILS-1700-CAT Catenary Obstruction Lighting System consists of at least one RLC- 0236-000 Controller and multiple LED Beacons, typically model IFH-1700, although other models are supported. The RLC-0236-000 controller is capable of controlling from 3 to 6 red LED beacons.
  • Page 7: Specifications

    Designed to comply with AC 150/5345-43 Environment Temperature -40ºC to +55ºC Humidity less than 95% relative humidity (non-condensing) Obstruction Lights 3, 4, 5 or 6 ITL IFH-1700-000 or Beacons Dialight D464 Series LED Beacons Mechanical Dimension Height: 22.29” (566mm) Width: 16.57”...
  • Page 8: Catenary Applications

    ILS-1700-CAT Catenary Applications ILS-1700-CAT Catenary Red Obstruction Lighting Systems are used for night time marking of catenary support structures such as transmission line river crossings. The lights flash in a middle-top-bottom sequence at 60FPM. Top-level lights mark the highest point of the catenary support structure. Mid-level lights mark the middle of the catenary and may be omitted if the distance from the top and bottom lights is less than 100ft.
  • Page 9: Installation

     Install FAA type L-810(L) LED obstruction lights (if used) per manufacturer’s instruction and FAA requirements.  Install Photoelectric Cell and socket (ITL P/N: PEC-NITE-120, PEC-SOCK-000).  Install 120Vac line power to the RLC-0236-000 Controller.  Copyright 2000-2015 ITL, LLC Page 9 of 20 DOC-ILS-1700-CAT-MNL Rev3.doc (5/12/2015)
  • Page 10: Rlc-0236-000 Controller Mounting

    ILS-1700-CAT RLC-0236-000 Controller Mounting Figure 3: RLC-0236-000 Controller Dimensions and Mounting Details  Copyright 2000-2015 ITL, LLC Page 10 of 20 DOC-ILS-1700-CAT-MNL Rev3.doc (5/12/2015)
  • Page 11: Electrical Connections

    It is the responsibility of the installer to comply with all applicable local, state, and federal regulations for installation and operation of this device. Figure 4: RLC-0236-000 Typical Electrical Connections  Copyright 2000-2015 ITL, LLC Page 11 of 20 DOC-ILS-1700-CAT-MNL Rev3.doc (5/12/2015)
  • Page 12: Connector Descriptions

    Marker Level 2 Power (Not used on Catenary systems) Marker Level 1 Power Beacon 6 Power Beacon 5 Power Beacon 4 Power Beacon 3 Power Beacon 2 Power Beacon 1 Power Figure 5: RLC-0236-000 Connector Descriptions  Copyright 2000-2015 ITL, LLC Page 12 of 20 DOC-ILS-1700-CAT-MNL Rev3.doc (5/12/2015)
  • Page 13: Enclosure Grounding

    (5/8” centers) compression lug for bonding to earth ground. AWG 6 copper conductor should be used. ¼-20 Bolt, Lock Washer and Nut (2 each) Figure 6: RLC-0236-000 Enclosure Grounding Detail  Copyright 2000-2015 ITL, LLC Page 13 of 20 DOC-ILS-1700-CAT-MNL Rev3.doc (5/12/2015)
  • Page 14: Gps Connections

    ILS-1700-CAT GPS Connections An optional GPS (ITL P/N ANT- 018X-GPS-KIT) can be added to synchronize the flashing of multiple systems. Each RLC-0236-000 controller requires a GPS. Electrical connections the GPS are made on connector P8 on the main panel shown in the figure. DIP Switch SW2-2 must be in the ON position to enable the GPS.
  • Page 15: Setup And Operation

    Switch. Beacon Configuration Configuration Installed Beacons Manual Mode Jumpers DIP Switches DIP Switches Select Switch GPS Connector Indicator LEDs Alarm Contacts Figure 8: RLC-0236-000 Setup and Operation Details  Copyright 2000-2015 ITL, LLC Page 15 of 20 DOC-ILS-1700-CAT-MNL Rev3.doc (5/12/2015)
  • Page 16: Dip Switches

    *If only one beacon is used on a level it must be the “A” beacon. *If only two levels are used it must be the “TOP” and “BOT” levels. Figure 10: RLC-0236-000 Configuration DIP Switch SW1 Table  Copyright 2000-2015 ITL, LLC Page 16 of 20 DOC-ILS-1700-CAT-MNL Rev3.doc (5/12/2015)
  • Page 17: Manual Mode Select Switch

    In the AUTO position the operating mode is determined by the photoelectric cell. The Manual Mode Select Switch timed out after 8 hours of manual operation and returns to automatic (PEC) operation regardless of the switch position.  Copyright 2000-2015 ITL, LLC Page 17 of 20 DOC-ILS-1700-CAT-MNL Rev3.doc (5/12/2015)
  • Page 18: Indicator Lights

    DIP Switch SW1. When not lit the catenary configuration is not valid and all beacons are enabled. Figure 13: RLC-0236-000 Indicator Lights Table  Copyright 2000-2015 ITL, LLC Page 18 of 20 DOC-ILS-1700-CAT-MNL Rev3.doc (5/12/2015)
  • Page 19: Spare Parts & Replacement Parts

    Fuse, 1A, Slo-blow, PEC Fuse FUS-002A-3AG Fuse, 2A, Slo-blow, F2-F10 SW0-ASSY-INT Interlock Switch LMP-NEON-02K Neon Lamp, RED, 120V Figure 15: RLC-0236-000 Spare Parts & Replacement Parts List Table  Copyright 2000-2015 ITL, LLC Page 19 of 20 DOC-ILS-1700-CAT-MNL Rev3.doc (5/12/2015)
  • Page 20: Technical Support And Contact Info

    Contact Info For information on the RLC-206 controller’s basic functions, refer to this manual. For additional help with the installation or operation of any ITL products, please contact ITL, LLC at one of the following below. Web and Internet Sites Corporate home page: http://www.itl-llc.com...
