ITL PULSAR ILS-1400 Installation Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Installation
ILS-1400
ILS-2400
Instruction Manual
ILS-3400
ILS-3800
ILS Strobe
Lighting Systems
PULSAR
(XENON Series)
Toll Free: +1 (866) 624-8309  www.itl-llc.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PULSAR ILS-1400 and is the answer not in the manual?

Questions and answers

Related Manuals for ITL PULSAR ILS-1400

Summary of Contents for ITL PULSAR ILS-1400

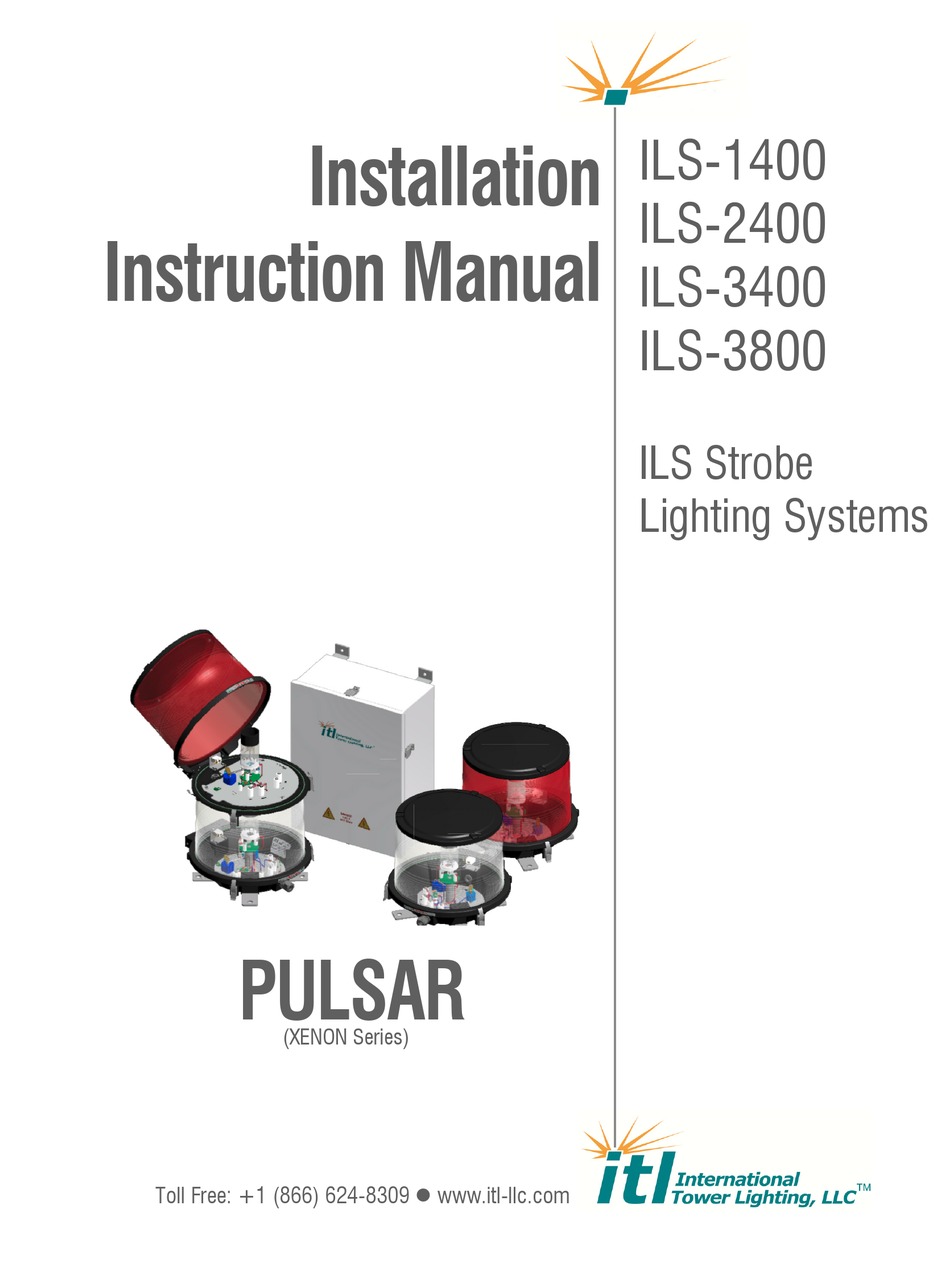

  • Page 1 Installation ILS-1400 ILS-2400 Instruction Manual ILS-3400 ILS-3800 ILS Strobe Lighting Systems PULSAR (XENON Series) Toll Free: +1 (866) 624-8309  www.itl-llc.com...

  • Page 2: Front Matter

    Please contact ITL, LLC in order to obtain a Return Authorization Number, RMA. In no event shall ITL, LLC’s liability exceed the price paid for the product from direct, indirect, special, incidental, or consequential damages resulting from the use of the product, its accompanying software, or its documentation.

  • Page 3: Safety Warning

    Do not incinerate, disassemble, or puncture the battery. For questions or details please contact The Battery Council International at (312) 664- 6610, or your local waste agency.  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 3 of 86 DOC-3400-MNL Rev23.doc...

  • Page 4: Table Of Contents

      1. ITL-3400-TRG Trigger Board ................... 51   A. LEDs and Caution Neon Light ................52   Switches....................... 54   C. Hardware vs. Software Configuration ..............57    Copyright 2007-2021 ITL, LLC (9/22/2021) Page 4 of 86 DOC-3400-MNL Rev23.doc...
  • Page 5 ILS Strobe Lighting Systems E. Connectors ......................58   2. ITL-3401-RLY Relay Board ..................59   3. ITL-3420-SEN / ITL-3421-SEN Sense Board............60   4. ITL-3410-0HV High Voltage Board ................60   5. ITL-3451-RNC R/C Network Board ................62  ...

  • Page 6: List Of Illustrations And Tables

    Link ........................... 44   Figure 39: ILS-1400 Single System Typical Installation Diagram – 350’ ......45   Figure 40: ILS-1400 Triple System Typical Installation Diagram – 500’ ......46    Copyright 2007-2021 ITL, LLC (9/22/2021) Page 6 of 86 DOC-3400-MNL Rev23.doc...
  • Page 7 Figure 46: ITL-3400 LEDs Location Detail ............... 52   Figure 47: ITL-3400 LEDs Table ..................52   Figure 48: ITL-3400 Neon Trigger Indicator Location Detail ..........53   Figure 49: ITL-3400 Toggle Switches Location Detail ............. 54   Figure 50: ITL-3400 DIP Switch Location Detail .............. 55  ...

  • Page 8: Introduction

    ILS Strobe Lighting Systems Introduction Congratulations, and thank you for choosing an ITL PULSAR XENON Series lighting system. We trust that ITL’s reputation for technical excellence, experience in product development, commitment to our customers and testing will ensure your complete satisfaction.

  • Page 9: Product Description

    The ILS-1400 is a red only system which produces a low intensity red “burst” of rapid flashes every 3 seconds (20 FPM) in Night Mode. See major component block diagram below. Figure 1: ILS-1400 Red Strobe System  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 9 of 86 DOC-3400-MNL Rev23.doc...
  • Page 10 1.5 seconds equating to 40 flashes per minute (FPM) in Day Mode and a low intensity white “burst” of rapid flashes every 1.5 seconds (40 FPM) in Night Mode. See major component block diagram below. Figure 2: ILS-2400 White Strobe System  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 10 of 86 DOC-3400-MNL Rev23.doc...
  • Page 11 See major component block diagram below. Figure 3: ILS-3400 Dual Strobe System The intensity for all lighting systems is 20,000cd for a day flash and 2,000cd for a burst of night flashes.  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 11 of 86 DOC-3400-MNL Rev23.doc...

  • Page 12: Power Conversion, Ips-3400

    1.5s for white night operation or every 3s for red night operation. After each flash the ITL-3400 then examines the intensity of the flash and either confirms the successful flashing or generates an alarm otherwise.

  • Page 13: Flash Head, Ifh-1400/2400/3400

    Figure 6: IFH-3400-000 Dual Red/White Flash Head  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 13 of 86...
  • Page 14 A third terminal, the trigger, is used to temporarily energize the tube and produce a short brilliant white flash. Figure 7: FH0-3400-000 Flash Tube Detail  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 14 of 86...

  • Page 15: Specifications

    25” (63.5cm) Diameter: 16.5” (42cm) Weight 24 lbs (11Kg) max IPS-3400/3800 Power Supply Dimension Height: 23.63” (60.02cm) Width: 16.57” (42cm) Depth: 9.76” (24.8cm) Weight 65 lbs (30Kg) max  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 15 of 86 DOC-3400-MNL Rev23.doc...

  • Page 16: Electrical

    120/240VAC at 60Hz Power Consumption Day: 180W Red Night: 140W White Night: IPS-3800 (ILS-3800 only) Input Power 120/240VAC at 60Hz Power Consumption Day: 180W Red Night: White Night:  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 16 of 86 DOC-3400-MNL Rev23.doc...

  • Page 17: Installation

    Tools for Installation The following tools are suggested for mounting of the ITL power supply and flash head.  Digital multi-meter capable of reading 600VAC/DC (Fluke 177 or 179)  Nut Drivers and Sockets ...

  • Page 18: Flash Head

    If the flash head mounting surface is not level already use shims to correct. Do not compromise grounding of the four flash head mounting feet. Figure 8: Flash Head Leveling - Axis 1  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 18 of 86...
  • Page 19 ILS Strobe Lighting Systems Figure 9: Flash Head Leveling - Axis 2  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 19 of 86 DOC-3400-MNL Rev23.doc...

  • Page 20: Ifh-1400/2400 Flash Head Mounting

    IFH-1400/2400 Flash Head Mounting 4 SETS OF MOUNTING HARDWARE BOLT HDW-B500-150-GAL LOCK WASHER HDW-0500-LGA H.H.NUT HDW-0500-NGA INCLUDED Figure 10: IFH-1400 / IFH-2400 Flash Head Dimensions and Mounting Detail  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 20 of 86 DOC-3400-MNL Rev23.doc...
  • Page 21 ILS Strobe Lighting Systems Figure 11: IFH-1400 / IFH-2400 Flash Head Component Layout, Top View Figure 12: IFH-1400 / IFH-2400 Flash Head Component Layout, Isometric View  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 21 of 86 DOC-3400-MNL Rev23.doc...
  • Page 22 RED LENS ASSEMBLY WITH MOUNTING RING AND COVER FOR IFH-1400 SW0-ASSY-INT INTERLOCK SWITCH XFR-FLSH-CPL COUPLING TRANSFORMER XFR-3400-TRG TRIGGER TRANSFORMER Figure 13: IFH-1400 / IFH-2400 Flash Head Parts List Table  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 22 of 86 DOC-3400-MNL Rev23.doc...
  • Page 23 ILS Strobe Lighting Systems Figure 14: IFH-1400 Red Flash Head Wiring Diagram Figure 15: Red Flash Head Component Locator Diagram  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 23 of 86 DOC-3400-MNL Rev23.doc...
  • Page 24 ILS Strobe Lighting Systems Figure 16: IFH-2400 White Flash Head Wiring Diagram Figure 17: White Flash Head Component Locator Diagram  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 24 of 86 DOC-3400-MNL Rev23.doc...

  • Page 25: Ifh-3400 Flash Head Mounting

    IFH-3400 Flash Head Mounting 4 SETS OF MOUNTING HARDWARE BOLT HDW-B500-150-GAL LOCK WASHER HDW-0500-LGA H.H.NUT HDW-0500-NGA INCLUDED Figure 18: IFH-3400 Dual Flash Head Dimensions and Mounting Detail - 1  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 25 of 86 DOC-3400-MNL Rev23.doc...
  • Page 26 ILS Strobe Lighting Systems 4 SETS OF MOUNTING HARDWARE BOLT HDW-B500-150-GAL LOCK WASHER HDW-0500-LGA H.H.NUT HDW-0500-NGA INCLUDED Figure 19: IFH-3400 Dual Flash Head Dimensions and Mounting Detail - 2  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 26 of 86 DOC-3400-MNL Rev23.doc...
  • Page 27 ILS Strobe Lighting Systems Figure 20: IFH-3400 Dual Flash Head Component Layout, Top View  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 27 of 86 DOC-3400-MNL Rev23.doc...
  • Page 28 ILS Strobe Lighting Systems Figure 21: IFH-3400 Dual Flash Head Component Layout, Isometric View  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 28 of 86 DOC-3400-MNL Rev23.doc...
  • Page 29 AND MIDDLE RING LEN-3400-RED-ASY RED LENS ASSEMBLY WITH MOUNTING RING AND COVER SW0-ASSY-INT INTERLOCK SWITCH XFR-FLSH-CPL COUPLING TRANSFORMER XFR-3400-TRG TRIGGER TRANSFORMER Figure 22: IFH-3400 Dual Flash Head Parts List Table  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 29 of 86 DOC-3400-MNL Rev23.doc...
  • Page 30 ILS Strobe Lighting Systems Figure 23: IFH-3400 Dual Flash Head Wiring Diagram  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 30 of 86 DOC-3400-MNL Rev23.doc...
  • Page 31 ILS Strobe Lighting Systems Figure 24: IFH-3400 Dual Flash Head Component Locator Diagram  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 31 of 86 DOC-3400-MNL Rev23.doc...

  • Page 32: Power Supply Grounding

    The mounting can not obstruct access to the power supply’s internal components for the purpose of installing and maintaining the equipment. The following diagrams detail the mounting dimensions and clearance for proper access.  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 32 of 86...

  • Page 33: Ips-3400 Power Supply Mounting

    ILS Strobe Lighting Systems IPS-3400 Power Supply Mounting Figure 25: IPS-3400 Power Supply Dimensions and Mounting Details  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 33 of 86 DOC-3400-MNL Rev23.doc...
  • Page 34 ILS Strobe Lighting Systems Figure 26: IPS-3400 Power Supply Overall Component Layout  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 34 of 86 DOC-3400-MNL Rev23.doc...
  • Page 35 SW0-ASSY-INT INTERLOCK SWITCH XFR-3400-ASY TRANSFORMER FOR IPS-3400 POWER CONVERTER XFR-3400-CPL COUPLING TRANSFORMER Note: Additional Parts for IPS-3800 see Appendix A Figure 27: IPS-3400 Power Supply Parts List Table  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 35 of 86 DOC-3400-MNL Rev23.doc...
  • Page 36 ILS Strobe Lighting Systems Figure 28: IPS-3400 Power Supply Panel Component Locator  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 36 of 86 DOC-3400-MNL Rev23.doc...
  • Page 37 ILS Strobe Lighting Systems Figure 29: IPS-3400 Power Supply Wiring Diagram Note : Wiring Diagram for IPS-3800 see appendix A  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 37 of 86 DOC-3400-MNL Rev23.doc...
  • Page 38 ILS Strobe Lighting Systems Figure 30: IPS-3400-30FPM Power Supply Wiring Diagram with Flashing Side Lights  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 38 of 86 DOC-3400-MNL Rev23.doc...

  • Page 39: Power Transformer Input Voltage Wiring

    ILS Strobe Lighting Systems Power Transformer Input Voltage Wiring Figure 31: IPS-3400 120VAC Primary Figure 32: IPS-3400 230/240VAC Primary  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 39 of 86 DOC-3400-MNL Rev23.doc...
  • Page 40 ILS Strobe Lighting Systems Figure 33: IPS-3400 Configuration Quick Info Guide  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 40 of 86 DOC-3400-MNL Rev23.doc...

  • Page 41: Pec Mounting And Wiring

    ILS Strobe Lighting Systems PEC Mounting and Wiring Figure 34: PEC Assembly Drawing Figure 35: PEC Wiring Diagram  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 41 of 86 DOC-3400-MNL Rev23.doc...
  • Page 42 Fitting For Flex Conduit 1/2" With 1/2" Npt HDW-ORNG-075 O-Ring I.D. 0.75” PEC-NITE-120 Photoelectric Cell (Pec) PEC-1800-120 Photoelectric Cell (Pec) Ils-1400 Only PEC-SOCK-000 Socket For Photoelectric Cell Figure 36: PEC Assembly Parts List Table  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 42 of 86 DOC-3400-MNL Rev23.doc...
  • Page 43 USE A CONTINUOUS CABLE FROM THE POWER SUPPLY TO THE FLASH HEAD WITHOUT TERMINAL STRIPS OR SPLICES. SUPPLY LIGHTNING PROTECTION FOR THE TOP FLASH HEAD. Figure 37: ILS-1400 / ILS-2400 / ILS-3400 Installation Wiring Diagram Note: For ILS-3800 Installation Diagram see Appendix A  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 43 of 86 DOC-3400-MNL Rev23.doc...
  • Page 44 ILS Strobe Lighting Systems Figure 38: ILS-1400 / ILS-2400 / ILS-3400 Triple System Installation w/Sync and Data Link  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 44 of 86 DOC-3400-MNL Rev23.doc...
  • Page 45 ILS Strobe Lighting Systems Figure 39: ILS-1400 Single System Typical Installation Diagram – 350’  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 45 of 86 DOC-3400-MNL Rev23.doc...
  • Page 46 ILS Strobe Lighting Systems Figure 40: ILS-1400 Triple System Typical Installation Diagram – 500’  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 46 of 86 DOC-3400-MNL Rev23.doc...
  • Page 47 ILS Strobe Lighting Systems Figure 41: ILS-2400 Single System Typical Installation Diagram – 350’  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 47 of 86 DOC-3400-MNL Rev23.doc...
  • Page 48 ILS Strobe Lighting Systems Figure 42: ILS-2400 Triple System Typical Installation Diagram – 500’  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 48 of 86 DOC-3400-MNL Rev23.doc...
  • Page 49 ILS Strobe Lighting Systems Figure 43: ILS-3400 Single System Typical Installation Diagram – 350’  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 49 of 86 DOC-3400-MNL Rev23.doc...
  • Page 50 ILS Strobe Lighting Systems Figure 44: ILS-3400 Triple System Typical Installation Diagram – 500’  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 50 of 86 DOC-3400-MNL Rev23.doc...

  • Page 51: Circuit Boards

    The following section describes each all of the ILS-1400/2400/3400 circuit boards. 1. ITL-3400-TRG Trigger Board The ITL-3400 is the power supply’s main board. This microprocessor controlled circuit board controls and monitors all functions relating to the strobe light. Figure 45: ITL-3400 Main Board Picture ...

  • Page 52: Leds And Caution Neon Light

    An array of LEDs provides visual feedback relating to the boards current function and alarm status. Red LEDs are utilized for alarm functions only. Any red LED which is lit indicates an active alarm condition. Figure 46: ITL-3400 LEDs Location Detail Color Function...
  • Page 53 The indicator will temporarily flicker when the trigger capacitor is discharged during flashing. The location of the neon indicator is shown below. Figure 48: ITL-3400 Neon Trigger Indicator Location Detail  Copyright 2007-2021 ITL, LLC...

  • Page 54: Switches

    Day Mode or White Night or Red Night LED will blink indicating this special mode. To assure that this switch is not accidentally left in the wrong position the ITL-3400 will automatically generate a PEC alarm if SW3 is not in its neutral position.
  • Page 55 ILS Strobe Lighting Systems ii. Configuration DIP Switch In addition to the two toggle switches the ITL-3400 has a two hardware configuration switches, SW4 and SW5 . The board will follow operation of this hardware configuration switch unless overridden by remote software. This is only the case for systems which are connected to a separate ITL monitoring product and communicate with ITL’s ADP family...
  • Page 56 Installed Bulbs Figure 54: Sidelight Configuration Detail Table If the ITL-3400 does not seem to respond to the configuration switches the board may have been configured with remote software. If necessary the board can be reset to factory defaults and will then follow the setup of the hardware configuration switches.

  • Page 57: Hardware Vs. Software Configuration

    C. Hardware vs. Software Configuration As already indicated in the sections above relating to the hardware configuration switch and factory reset switch the ITL-3400 main board can be configured both with hardware configuration switches or remote software. The normal configuration mode and factory default is that the board will follow the settings of the two configuration switches SW4 and SW5.

  • Page 58: Connectors

    ILS Strobe Lighting Systems D. Sync Line and RS485 Interface The ITL-3400 has two means of interfacing to other ITL-3400 boards if used in a configuration where three power supplies are interconnected. Basic sync and mode information is communicated from any board to the others via the SYNC connector J2.

  • Page 59: Itl-3401-Rly Relay Board

    2. ITL-3401-RLY Relay Board Figure 58: ITL-3401-RLY Alarm Relay Board Picture The ITL-3401-RLY alarm relay board connects directly to the ITL-3400 main board and contains all Form-C dry contact alarm relays indicating alarm status of the ILS- 1400/2400/3400 system. In addition, the board contains one mode relay indicating day or night mode operation.

  • Page 60: Itl-3420-Sen / Itl-3421-Sen Sense Board

    3. ITL-3420-SEN / ITL-3421-SEN Sense Board Figure 59: ITL-3420-SEN Sense Board Picture The ITL-3420-SEN / ITL-3421-SEN board connects directly to the ITL-3400 main circuit board. It contains the strobe and sidelight sense transformers. Additionally, a set of jumpers allow for configuration of the sidelight type. For details on the jumper settings please refer to the Configuration DIP Switch section (Page 55 &...

  • Page 61: Itl-3410-0Hv High Voltage Board

    ILS Strobe Lighting Systems 4. ITL-3410-0HV High Voltage Board Figure 61: ITL-3410-0HV High Voltage Board Picture The ITL-3410-0HV high voltage board rectifies the incoming 1000VAC for energy storage in the day and night bank capacitors. Two neon indicators show the presence of high voltage.

  • Page 62: Itl-3451-Rnc R/C Network Board

    ILS Strobe Lighting Systems 5. ITL-3451-RNC R/C Network Board Figure 62: ITL-3451-RNC R/C Board Picture The ITL-3451-RNC circuit board contains a resistor-capacitor network and is installed in the IFH-2400 and IFH-3400 flash head. The IFH-3400 contains two of these circuit boards.

  • Page 63: Maintenance / Trouble-Shooting

     Digital multi-meter capable of reading 600VAC/DC and capacitance (Fluke 177 or 179)  Clamp-on type AC Current Meter (Fluke 322 or equivalent)  #2 Phillips Screwdriver  5/16 Flat Head screwdriver  Crimp Tool  Needle Nose Pliers  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 63 of 86 DOC-3400-MNL Rev23.doc...

  • Page 64: Maintenance

    Install plugs to close any unused conduit ports that may allow insect infiltration.  Verify that all breathers and drain holes are clear of blockages.  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 64 of 86...

  • Page 65: Strobe Light Basics

    The High Voltage Rectifier board performs full-wave rectification and charges the Day Capacitor Bank, C2A-E, on terminals +500VD and -500V and the Night Capacitor, C3, on terminal +500VN and -500V to 1000VDC between Anode and Cathode.  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 65 of 86...

  • Page 66: Day Circuit

    On the timing and trigger board this voltage is full-wave rectified and used to charge a 3.3uF trigger capacitor. For the purpose of triggering a SCR is used to quickly discharge  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 66 of 86...

  • Page 67: Measuring High Voltage

    Use clamp-on type current meter to read AC Current around wire connected to terminal 8 on TB1. Put the strobe light in night mode using the Day Night Switch on the Trigger Board. Your meter should indicate about 1Amp for each side light burning.  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 67 of 86...

  • Page 68: Measuring Capacitance

    The night capacitor must be measured separately and should read about 3uF. Remove all wires from one terminal of the capacitor to keep other circuitry from interfering with the measurement.  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 68 of 86...

  • Page 69: Troubleshooting Flowchart

    2) Power Xfmr, T1 3) Trigger Xfmr, XFR-TRIG-205 4) FH Coupling Xfmr, XFR- FLSH-CPL **Always use a meter to test 5) Flash head High Voltage. See section cable “Measuring High Voltage.”  Copyright 2007-2021 ITL, LLC DOC-3400-MNL Rev23.doc (9/22/2021) Page 69 of 86...

  • Page 70: Red Alarm

    2) Power Xfmr, T1 3) Trigger Xfmr, XFR-TRIG-205 4) FH Coupling Xfmr, XFR- FLSH-CPL **Always use a meter to test 5) Flash head High voltage. See section cable “Measuring High Voltage.”  Copyright 2007-2021 ITL, LLC DOC-3400-MNL Rev23.doc (9/22/2021) Page 70 of 86...

  • Page 71: Sidelight Alarm

    3) Trigger Board, SW5 on PCB1 PCB1 Set 4) Damaged wiring incorrectly 3) Sense Module, PCB3 4) Sense Module Settings, PCB3, JP1 and JP2 5) Trigger Board PCB1  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 71 of 86 DOC-3400-MNL Rev23.doc...

  • Page 72: Pec Alarm Led

    Day to Night 2) Wiring to TB1-10 Switched Likely Causes: Likely Causes: 1) PEC defective 1) Trigger Board, PCB1 2) Wiring to PEC 2) Wiring between Trigger Board and TB1-12  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 72 of 86 DOC-3400-MNL Rev23.doc...

  • Page 73: No High Voltage

    PCB2 4) Power Xfmr, T1 * Measure High Voltage using a volt meter as describe in section above. Both +500VDC anode and -500VDC cathode voltages must be present  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 73 of 86 DOC-3400-MNL Rev23.doc...

  • Page 74: Spare Parts & Replacement Parts

     IPS-3400/3800 Power Supply Parts List Table, Page 35 & 80  IFH-2400 White Flash Head Parts List Table, Page22  IFH-3400 White Flash Head Parts List Table, Page 29  PEC Assembly Parts List Table. Page, 41  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 74 of 86 DOC-3400-MNL Rev23.doc...

  • Page 75: Technical Support And Contact Info

    Technical Support and Contact Info Contact Info For information on the ITL strobe lighting systems’ basic functions, refer to this manual and the accompanying drawings. For additional help with the installation or operation of any ITL products, please contact ITL, LLC at one of the following below.

  • Page 76: Appendix

    The system consists of a power conversion unit, the IPS-3800, a strobe cable, a red LED (IFH-1700-000) and white strobe (IFH-2400) flash head. See major component block diagram below. Figure 64: ILS-3800 Strobe/LED System  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 76 of 86 DOC-3400-MNL Rev23.doc...

  • Page 77: Installation

    USE A CONTINUOUS CABLE FROM THE POWER SUPPLY TO THE FLASH HEAD WITHOUT TERMINAL STRIPS OR SPLICES. SUPPLY LIGHTNING PROTECTION FOR THE TOP FLASH HEAD. Figure 65: ILS-3800 Installation Wiring Diagram  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 77 of 86...
  • Page 78 SIDE LIGHT PRIMARY POWER International Tower Lighting, LLC POWER WHITE SIDE NIGHT FAIL ALARM ALARM LIGHT ALARM MODE ALARM ALARM ALARM Figure 66: IPS-3800 Power Supply Panel Component Locator  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 78 of 86 DOC-3400-MNL Rev23.doc...
  • Page 79 ILS Strobe Lighting Systems Figure 67: IPS-3800 Power Supply Wiring Diagram  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 79 of 86 DOC-3400-MNL Rev23.doc...
  • Page 80 POWER TO UNIT TO SET TRIGGER WHITE STROBE/ BOARD TO FACTORY DEFAULTS. RED LED ITL 1700 Series International Tower Lighting, LLC Figure 68: IPS-3800 Configuration Quick Info Guide  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 80 of 86 DOC-3400-MNL Rev23.doc...
  • Page 81 TERMINAL BLOCK, FUSE BLOCK OTB-1492-EFB END BARRIER FOR FUSE BLOCK RES-ASSY-34K-RED SOLID STATE RELAY Note: Additional Parts for IPS-3800 see Page 35 Figure 69: IPS-3800 Power Supply Parts List Table  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 81 of 86 DOC-3400-MNL Rev23.doc...
  • Page 82 ILS Strobe Lighting Systems Figure 70: IPS-3800 Single Typical Installation Diagram – 350’  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 82 of 86 DOC-3400-MNL Rev23.doc...

  • Page 83: Reference

    Resistance is measured in Ohms. Used in night circuit. Terminal Block An insulating base with binding posts to make connections where sets of terminals are mounted. Use to connect flash head cable, power, sidelights and PEC.  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 83 of 86 DOC-3400-MNL Rev23.doc...

  • Page 84: Schematic Symbols

    Component Symbol Designator Units Resistor Ohms (Ω) Capacitor Farad uF (Micro-Farad) Inductor Henry mH (Milli-Henry) Fuse Transformer Metal-oxide Varistor (MOV) Volts, Joules Switch Relay Terminal Block  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 84 of 86 DOC-3400-MNL Rev23.doc...

  • Page 85: Index - Everything From A To Z

    J4 ꞏ 58 SW3 ꞏ 54 SW4 ꞏ 55, 57 SW5 ꞏ 55, 57 SYNC ꞏ 58 FAA ꞏ 9, 75 factory default ꞏ 57 L-810 ꞏ 8  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 85 of 86 DOC-3400-MNL Rev23.doc...
  • Page 86 CAT_BOT Approved By: Andy Rudolph Corrected Page error pg reference on page 60. Updated Title, 9/22/2021 Prepared By: Elke Hinson added “Pulsar Xenon Series”. Approved By: Andy Rudolph  Copyright 2007-2021 ITL, LLC (9/22/2021) Page 86 of 86 DOC-3400-MNL Rev23.doc...

This manual is also suitable for:

Pulsar ils-2400Pulsar ils-3400Pulsar ils-3800

Table of Contents
