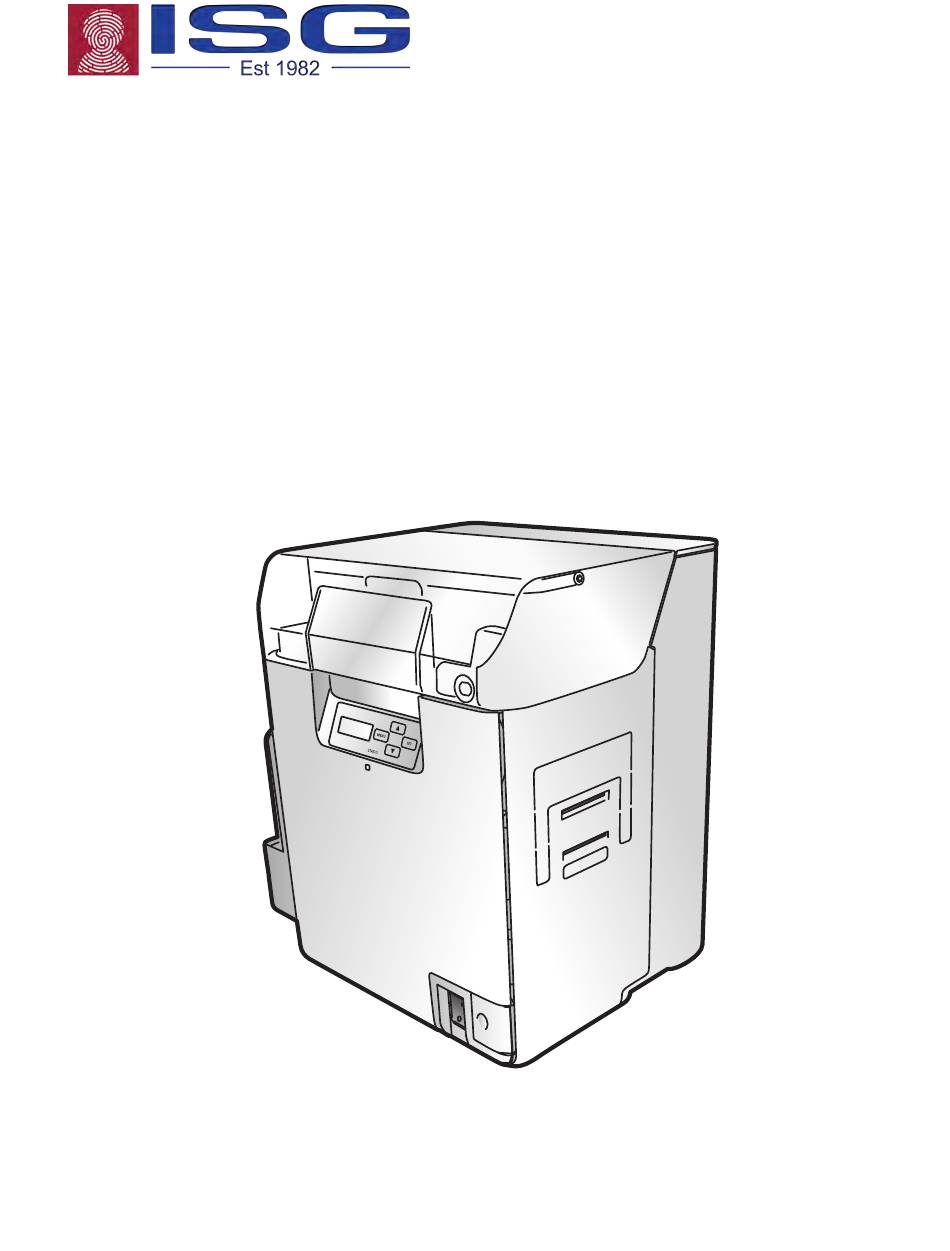

Operating Manual PEAK RTX6600
Operating Manual
PEAK RTX6600
Identification Systems Group

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PEAK RTX6600 and is the answer not in the manual?

Questions and answers

Related Manuals for ISG PEAK RTX6600

Summary of Contents for ISG PEAK RTX6600

  • Page 1 Operating Manual PEAK RTX6600 Operating Manual PEAK RTX6600 Identification Systems Group...
  • Page 2 Operating Manual PEAK RTX6600 Features of the card printer RTX6600 Easy Card Loading Thanks to the Multifunctional Card Case, it is possible to feed cards without detaching the Card Case. (→ p10) Strengthened Security • You can anchor the printer with a cable using the Security Cable Slot. (→ p55) •...
  • Page 3 Operating Manual PEAK RTX6600 Regulations for RTX6600 FCC and IC regulations This device contains licence-exempt transmitter(s) / receiver(s) that comply with Innovation, Science and Economic Development Canada's licence exempt (RSS)s. Operation is subject to the following two conditions: (1) This device may not cause interference.
  • Page 4 Operating Manual PEAK RTX6600 Identification Systems Group...

  • Page 5: Table Of Contents

    Operating Manual PEAK RTX6600 Contents Operating the Printer Safely ..................1 Regulations for this product FCC Regulations.............. 3 Part Names and Descriptions..................4 Front Side of the Printer....................4 Inside the Top Cover ..................... 5 Rear Side of the Printer ....................6 Front Cover ........................
  • Page 6 Operating Manual PEAK RTX6600 Full Color Card Printer Adjusting the color shift of an image (horizontal) ........39 Setting the Type of Ink Ribbon or Transfer Film to Use..........41 Notification of Time for Ink Ribbon and Transfer Film Replacement ......43 Setting the Types of Card to Use ................

  • Page 7: Operating The Printer Safely

    Operating Manual PEAK RTX6600 Operating the Printer Safely The following precautions must be observed to assure safe operation of the printer. Also, do not do anything that is not described in this manual. Doing so may cause an unexpected accident.
  • Page 8 Operating Manual PEAK RTX6600 Full Color Card Printer The lower part of the Top Access Cover, the printer internal heat roller High Temperature section, and the thermal head Warning Label section get very hot. Ensure you do not touch these three locations.

  • Page 9: Regulations For This Product Fcc Regulations

    Operating Manual PEAK RTX6600 Under the following conditions images on cards may deteriorate or cards may warp after printing.  The surface of the card is in contact for an extended period of time with a vinyl card holder or synthetic leather or other material that contains plasticizer.

  • Page 10: Part Names And Descriptions

    Operating Manual PEAK RTX6600 Full Color Card Printer Part Names and Descriptions Front Side of the Printer a Top Cover e Power Switch Open when loading cards or cleaning the Turns the power on and off. feeding roller. →See "Turning On and Off the Printer" on page 9 for instructions on turning the power on and off.

  • Page 11: Inside The Top Cover

    Operating Manual PEAK RTX6600 Inside the Top Cover Interior of the Top Cover. a Card Case c Top Access Cover Up to 250 cards can be loaded at one time. Open when cards are jammed or similar. You can adjust the gate gap to match the →See "When a Card is Jammed..."...

  • Page 12: Rear Side Of The Printer

    Operating Manual PEAK RTX6600 Full Color Card Printer Rear Side of the Printer (OPTION) (PC) (10/100) RS-232C(PC) RS-232C(OPTION) a Card Ejection Slot (Right) e Security Cable Slot Ejects correctly printed cards and cards with Use the Security Cable Slot to prevent theft of errors.

  • Page 13: Front Cover

    Operating Manual PEAK RTX6600 Front Cover Interior of the Front Cover. a Card Feeding Knob e Reverse Knob Rotating the dial to the left or right ejects cards Rotate the knob to the left to change the jammed in the secondary transfer section from direction of the cards in the reverse section.

  • Page 14: Operation Panel

    Operating Manual PEAK RTX6600 Full Color Card Printer Operation Panel Ready to Print a MENU Key d LED Indicator Switches between Normal Mode and User This indicator is lit blue depending on the status Mode. In User Mode, it is used to go up one of the printer.

  • Page 15: Basic Card Printing Methods

    Operating Manual PEAK RTX6600 Basic Card Printing Methods This section explains the basic flow of operations, from turning on the power through printing a card. Turning On and Off the Printer Turn on the printer before starting to print. Before turning on the power, make sure the following preparations are complete: •...

  • Page 16: Loading Cards

    Operating Manual PEAK RTX6600 Full Color Card Printer Loading Cards Cards can be loaded in two ways: using the card retainer, and using the card feeding slot. The Card Retainer can be loaded with a large quantity of cards, making it useful for mass printing.
  • Page 17 Operating Manual PEAK RTX6600 Pull the card retainer, and load cards. • Hold the card retainer lever with your fingers, and pull it right out. • Load the card case with the printing side (front surface) to the left. • When loading the cards, be sure to hold their edges, and never touch the front or rear printing sides.

  • Page 18: Manually Loading Cards One By One

    Operating Manual PEAK RTX6600 Full Color Card Printer  Manually Loading Cards One by One Open the Top Cover. Open the Card Case, and insert cards into the Card Feeding Slot. • Pull the lock, and open the Card Case lid.

  • Page 19: Loading Magnetic/Ic Cards

    Operating Manual PEAK RTX6600  Loading Magnetic/IC Cards The factory default for magnetic cards/IC cards is to be loaded as below. →See "Loading Cards into the Card Case" on page 10 for the procedure on loading cards into the Card Case.

  • Page 20: Printing

    Operating Manual PEAK RTX6600 Full Color Card Printer Printing Command/menu names and the order of the procedure may differ depending on your application software. For more information on operations, refer to the instruction manual for your application software. Also, for more information about printer driver operations, refer to the driver help files.

  • Page 21: Removing Cards

    Operating Manual PEAK RTX6600 Click [Print]. • Printing starts. • Cards are pulled into the printer and the LED Indicator blinks blue. [Now Printing] appears on the LCD Panel. • If the cards are not loaded, [Card Empty] appears on PEAK RTX6600 the LCD Panel.

  • Page 22: Changing The Ink Ribbon And Transfer Film

    Operating Manual PEAK RTX6600 Full Color Card Printer Changing the Ink Ribbon and Transfer Film Change the Ink Ribbon and Transfer Film when these run out. →See "Ink Ribbon/Transfer Film" on page 83 for details about Ink Ribbon and Transfer Film.

  • Page 23: Changing The Ink Ribbon

    Operating Manual PEAK RTX6600  Changing the Ink Ribbon Use the following procedure when replacing the Ink Ribbon. Remove the Ink Ribbon Cassette. • Pull out the handle of the ink ribbon cassette with the handle turned up.  Note...
  • Page 24 Operating Manual PEAK RTX6600 Full Color Card Printer Take up the Ink Ribbon slack. • Turn the knob as in the diagram at right, and take up the ribbon slack. • If the slack is not taken up properly, then the Ink Ribbon may jam.

  • Page 25: Transfer Film Replacement

    Operating Manual PEAK RTX6600  Transfer Film Replacement Use the following procedure when replacing the Transfer Film. Remove the Transfer Film Cassette. • Pull out the handle of the transfer film cassette with the handle turned up.  When placing the Transfer Film down,...
  • Page 26 Operating Manual PEAK RTX6600 Full Color Card Printer Load new Transfer Film in the Cassette. • Insert the spool spindle into the feed side (white) holder. As in the diagram at right, unwind and load onto the shaft. Finally, insert the spool spindle into the winding side holder.
  • Page 27 Operating Manual PEAK RTX6600 Insert the Transfer Film Cassette. • Insert the Transfer Film Cassette until a "click" is heard. →For replacing Cleaning Tape, See "Cleaning Tape Replacement" on page 22.  When inserting the Transfer Film, insert Note while turning the knob in order to prevent slack.

  • Page 28: Cleaning Tape Replacement

    Operating Manual PEAK RTX6600 Full Color Card Printer  Cleaning Tape Replacement Remove the Cleaning Tape Cassette. • Hold the Cleaning Tape Cassette handle, lift it, and pull. Lift up the tape spindle. • As in the diagram at right, lift the tape spindle by hand.

  • Page 29: Normal Mode And User Mode

    Operating Manual PEAK RTX6600 Normal Mode and User Mode You can switch the printer from Normal Mode to User Mode while it is operating. This section provides an outline of both modes, explains how to change modes and explains the basic operations of the User Mode.

  • Page 30: User Mode

    Operating Manual PEAK RTX6600 Full Color Card Printer  User Mode User Mode is used to set operations and check the status of the printer. Menu names such as [Card Count] and [Ribbon Type] appear on the LCD Panel. Switching to User Mode This section explains how to switch from Normal Mode to User Mode.

  • Page 31: Basic User Mode Operations

    Operating Manual PEAK RTX6600 Basic User Mode Operations The User Mode has multiple menus in a hierarchical tree organized according to function. This section explains how to switch menus in the User Mode hierarchy tree and how to switch from User Mode to Normal Mode.

  • Page 32: Returning To The Main Menu (Switching To Menus On A Higher Level)

    Operating Manual PEAK RTX6600 Full Color Card Printer  Returning to the Main Menu (Switching to Menus on a Higher Level) You can return to a higher level by pressing the Printer Setup Printer Setup Buzzer Buzzer MENU Key. You can return to the main menu by SET:>>...

  • Page 33: Printer Settings

    Operating Manual PEAK RTX6600 Printer Settings This section explains how to check the printer's status and change the printer's settings. Counting the Number of Cards that Are Printed You can count the number of cards that are printed. You can also count the number of cards that have been printed in a specified period of time by resetting the count with the SET Key.

  • Page 34: Displaying The Total Number Of Sides That Are Printed

    Operating Manual PEAK RTX6600 Full Color Card Printer Press the SET key. • The display changes to [Reset ?]. Card Count Card Count Reset ? Reset ? Change the setting to [YES] by using Reset ? the / Keys then press the SET key.

  • Page 35: Checking The Type And Remaining Quantity Of The Ink Ribbon Or Transfer Film

    Operating Manual PEAK RTX6600 Press the  Key until [Total Count] is Card Count Card Count displayed. • The total number of sides is displayed. Total Count Total Count  The count cannot be reset. Checking the type and remaining quantity of the Ink Ribbon or Transfer Film You can check the type and remaining quantity of the Ink Ribbon or Transfer Film.

  • Page 36: Checking The Program Version And Serial Number

    Operating Manual PEAK RTX6600 Full Color Card Printer Checking the Program Version and Serial Number You can check the version of the program and the printer's serial number.  You can also display the status on the printer driver (→See "Opening the Printer Note Driver Settings Screen"...

  • Page 37: Turning The Error Alarm On Or Off

    Operating Manual PEAK RTX6600 Turning the Error Alarm On or Off The initial setting is for the buzzer to sound when an error occurs. You can set the buzzer so that it does not sound.  You can also change the settings by using the printer driver (→See "Opening the Note Printer Driver Settings Screen"...

  • Page 38: Reduce Printer Power Consumption

    Operating Manual PEAK RTX6600 Full Color Card Printer Reduce Printer Power Consumption Select the power-saving mode for when the printer is not being used. Additionally, you can set a time to switch to heater stop state.  You can also change the settings by using the printer driver (→ See "Opening the Note Printer Driver Settings Screen"...

  • Page 39: Adjusting The Print Results

    Operating Manual PEAK RTX6600 Press the  Key until [Power Save Power Save Mode Time] is displayed, then press the SET Key. Power Save Time Power Save Time Change the settings by using the / Power Save Time Keys, then press the SET Key.
  • Page 40 Operating Manual PEAK RTX6600 Full Color Card Printer Switch from Normal Mode to User Normal Mode User Mode MENU Mode. Ready to Print Ready to Print Printer Info. Printer Info. SET:>> SET:>> →See "Switching to User Mode" on page 24 for details on how to switch to User Mode.

  • Page 41: Adjusting The Contour Level

    Operating Manual PEAK RTX6600  Adjusting the contour level You can adjust the sharpness of edges such as facial contour. Switch from Normal Mode to User Normal Mode User Mode MENU Mode. Ready to Print Ready to Print Printer Info.

  • Page 42: Adjusting The Hue

    Operating Manual PEAK RTX6600 Full Color Card Printer  Adjusting the hue You can adjust the level of each hue (Yellow, Magenta, Cyan, Black). Adjusting the levels changes the hues of Yellow, Magenta, and Cyan for color images, and the thickness of black text for Black printing.

  • Page 43: Adjusting The Color Shift (Vertical) Of An Image

    Operating Manual PEAK RTX6600  Adjusting the color shift (vertical) of an image You can adjust the color shift (vertical) of a color image. Switch from Normal Mode to User Normal Mode User Mode MENU Mode. Ready to Print Ready to Print Printer Info.

  • Page 44: Correcting Image And Text Misalignment (Horizontal)

    Operating Manual PEAK RTX6600 Full Color Card Printer  Correcting image and text misalignment (horizontal) You can correct the misalignment (horizontal) of the color image and black text printing position. Switch from Normal Mode to User Normal Mode User Mode MENU Mode.

  • Page 45: Adjusting The Color Shift Of An Image (Horizontal)

    Operating Manual PEAK RTX6600  Adjusting the color shift of an image (horizontal) You can adjust the color shift (horizontal) of a color image. Issue 1 card with the design that you want to adjust. • Please print a sample card from the application you are using.
  • Page 46 Operating Manual PEAK RTX6600 Full Color Card Printer Change the settings by using the Y Shift Hrz-F Keys, then press the SET key. • Confirm the confirmation pattern on the card issued by procedure 3 and adjust so that the cyan line is aligned Y Shift Hrz-F with the yellow line.

  • Page 47: Setting The Type Of Ink Ribbon Or Transfer Film To Use

    Operating Manual PEAK RTX6600 Setting the Type of Ink Ribbon or Transfer Film to Use Set the type of Ink Ribbon or Transfer Film to use. →See "Changing the Ink Ribbon and Transfer Film" on page 16 for details about changing the Ink Ribbon and Transfer Film.
  • Page 48 Operating Manual PEAK RTX6600 Full Color Card Printer Change the settings by using the / Ribbon Type OOOOO Keys, then press the SET Key. Ribbon Type xxxxx  If the Ink Ribbon type set in the printer and the [Ribbon Type] setting are different, an Note Ink Ribbon error or a transfer problem occurs.

  • Page 49: Notification Of Time For Ink Ribbon And Transfer Film Replacement

    Operating Manual PEAK RTX6600 Notification of Time for Ink Ribbon and Transfer Film Replacement If there is little remaining Ink Ribbon or Transfer Film, the LCD Panel will display the remaining quantity to notify you that it should be replaced soon.

  • Page 50: Setting The Types Of Card To Use

    Operating Manual PEAK RTX6600 Full Color Card Printer As time approaches for replacement of the Ink Ribbon or Transfer Film, a remaining quantity notification for these is displayed. • In Normal Mode, if the Ink Ribbon and Transfer Film remaining quantity drops below the settings value (%), then the remaining quantity notification will appear at a set frequency (approximately 4 seconds).

  • Page 51: Optimizing Transfer Conditions

    Operating Manual PEAK RTX6600 Rotate the dial on the lower surface of Align the Card Case and adjust the gate gap. Knob with Marks • The figures on the knob indicate the size of the gate gap. • If cards do not pass through the gate, turn the knob to the right.
  • Page 52 Operating Manual PEAK RTX6600 Full Color Card Printer Change the settings by using the Card Type Card Type PVC (0.76mm) PVC (0.76mm) Keys, then press the SET Key. • Settings values that can be changed are as below. • If CARD1-3 are selected, then go to Step 5. If other...

  • Page 53: Correcting Card Curl

    Operating Manual PEAK RTX6600 Correcting Card Curl Depending on the cards you use, even given optimum secondary transfer conditions (speed and temperature), cards may curl. After secondary transfer, by correcting card curl (decurl), you can reduce the amount of curl.

  • Page 54: Switching The Card Ejection Slot

    Operating Manual PEAK RTX6600 Full Color Card Printer Press the  Key until [Decurl (Back)] is Decurl (Front) displayed, then press the SET Key. • Cards that have had their warp corrected are output. Decurl (Back) Decurl (Back) Change the settings by using the /...
  • Page 55 Operating Manual PEAK RTX6600 Press the  Key until [Card Setup] is Printer Info. Printer Info. SET:>> SET:>> displayed, then press the SET Key. Card Setup Card Setup Card Type Card Type SET:>> SET:>> After using the / Keys to switch...

  • Page 56: Set The Orientation Of Magnetic Cards/Ic Cards To Load

    Operating Manual PEAK RTX6600 Full Color Card Printer Set the Orientation of Magnetic Cards/IC Cards to Load Before loading magnetic card/IC cards, you need to set the Orientation of Magnetic Cards/IC Cards to Load. →See "Loading Magnetic/IC Cards" on page 13 for how to set Magnetic Cards/IC Cards.

  • Page 57: Set The Orientation Of Cards To Eject

    Operating Manual PEAK RTX6600 Settings Value Card front surface (left surface) Card rear surface (right surface) STANDARD Contact IC terminal ISO magnetic strip Card Case Rear Card Case Rear Front IC Terminal Rear Surface Surface Card Case Front Card Case Front...
  • Page 58 Operating Manual PEAK RTX6600 Full Color Card Printer Press the  Key until [Card Setup] is Printer Info. Printer Info. SET:>> SET:>> displayed, then press the SET Key. Card Setup Card Setup Card Type Card Type SET:>> SET:>> Press the  Key until [Eject Face] is...

  • Page 59: Changing Network Connection Settings

    Operating Manual PEAK RTX6600 Changing Network Connection Settings You can configure Internet communications settings such as the individual printer ID and TCP/ IP-related settings.  You can also change the settings by using the printer driver (→See "2. Print over a Note network"...
  • Page 60 Operating Manual PEAK RTX6600 Full Color Card Printer Change the settings by using the / Keys, then press the SET Key. • When setting numerical values, change each digit using the / Keys. Fix changes using the SET Key then progresses to the next digit.

  • Page 61: Preventing Theft And Unauthorized Usage

    Operating Manual PEAK RTX6600 Preventing Theft and Unauthorized Usage  Preventing Theft of the Printer (Security Cable Slot) You can prevent theft of the printer by locking it with a wire cable. Use a wire cable that fits the Security Cable Slot (0.12"...

  • Page 62: Cleaning

    Operating Manual PEAK RTX6600 Full Color Card Printer Cleaning The rollers need to be cleaned to maintain good print quality. This section explains which rollers need to be cleaned and how to clean them. Before Cleaning Note the following cautions when cleaning the rollers.
  • Page 63 Operating Manual PEAK RTX6600 Press the Key until [Cleaning] is Printer Info. Printer Info. SET:>> SET:>> displayed, then press the SET Key. Cleaning Cleaning Cleaning Cleaning SET:>> SET:>> Remove Cards Remove Cards When [Cool Down ---] is displayed, wait Cleaning...
  • Page 64 Operating Manual PEAK RTX6600 Full Color Card Printer When [Remove Cards] is displayed, open the Top Cover. Open the Card Case, and remove the cards from the cassette. • Pull the lock, and open the Card Case lid. • Pull the card retainer, and after removing the cards, return the card retainer to its original position.

  • Page 65: Cleaning The Cleaning Roller

    Operating Manual PEAK RTX6600 Cleaning the Cleaning Roller Clean the Cleaning Roller if cards are printed with missing colors or if there are foreign objects on them.  Be sure to turn off the printer before cleaning the rollers. ...
  • Page 66 Operating Manual PEAK RTX6600 Full Color Card Printer Wipe the roller clean. • Use a soft cloth fully moistened with water and wrung out to wipe the roller clean. Load the Cleaning Roller and Cleaning Tape Cassette in order, and close the Front Cover.

  • Page 67: Cleaning The Feeding Roller

    Operating Manual PEAK RTX6600 Cleaning the Feeding Roller Clean the Feeding Roller under the Card Case if cards do not feed smoothly into the printer.  Be sure to turn off the printer before cleaning the rollers.  Read the cautions in "Before Cleaning" on page 56.

  • Page 68: Cleaning The Transport Roller

    Operating Manual PEAK RTX6600 Full Color Card Printer Cleaning the Transport Roller If the printing location on printed cards is out of adjustment, or there is white space at the edge of printed areas, then clean the secondary transfer section Transport Roller at the bottom of the Top Access Cover.
  • Page 69 Wipe the roller clean. • Use a soft cloth fully moistened with water and wrung out to wipe the roller clean. • As you turn the card feeding knob, fully clean the roller. • Clean the Card Transport Roller (5 locations). Card Transport Roller ...

  • Page 70: Cleaning The Reverse Roller

    Operating Manual PEAK RTX6600 Full Color Card Printer Cleaning the Reverse Roller If card delivery from the reverse section to the secondary transfer section Transport Roller is not possible, then clean the Reverse Roller.  Be sure to turn off the printer before cleaning the rollers.
  • Page 71 Operating Manual PEAK RTX6600 Wipe the roller clean. • Use a soft cloth fully moistened with water and wrung out to wipe the roller clean. • Rotate the reverse feeding knob, and fully clean the roller. • Turn the reverse knob to rotate the reverse section one Reverse Roller turn, and clean the other side of the Reverse Roller.

  • Page 72: Primary Transfer Section Transport Roller Cleaning

    Operating Manual PEAK RTX6600 Full Color Card Printer Primary Transfer Section Transport Roller Cleaning If a film-related error occurs such as [Film Wind up], or there is color bleed or image distortion, then clean the primary transfer section Transport Roller.
  • Page 73 Operating Manual PEAK RTX6600 Insert a flat screwdriver or coin into the groove on the end of the Transport Flat Screwdriver Transport Roller Roller. • Ensure you have a flat screwdriver or coin that can fit into the groove on the end of the Transport Roller.

  • Page 74: Filter Cleaning

    Operating Manual PEAK RTX6600 Full Color Card Printer Filter Cleaning If the filter becomes clogged, then dirt may enter the printer. It is recommended that the filter be cleaned monthly.  Be sure to turn off the printer before cleaning the rollers.

  • Page 75: Troubleshooting

    Operating Manual PEAK RTX6600 Troubleshooting This section explains what to do when an error message appears, a card is jammed, or there is a problem with the printed side of a card. When an Error Message Appears The LED Indicator is lit orange or blinks, and a description of the error appears on the LCD Panel when an error occurs.
  • Page 76 Operating Manual PEAK RTX6600 Full Color Card Printer Error message Cause and solution The Ink Ribbon has been used up. Replace the Ink Ribbon. Ribbon Empty → See "Changing the Ink Ribbon and Transfer Film" on page 16 for details about changing the Ink Ribbon.
  • Page 77 Operating Manual PEAK RTX6600 Error message Cause and solution The Transfer Film has been used up. Replace the Transfer Film. Film Empty →See "Changing the Ink Ribbon and Transfer Film" on page 16 for details about changing the Transfer Film.
  • Page 78 Operating Manual PEAK RTX6600 Full Color Card Printer Error message Cause and solution Both the Ink Ribbon and Transfer Film have been used up. Replace both the Ink Ribbon and the Transfer Film. Rbn & Film Empty →See "Changing the Ink Ribbon and Transfer Film" on page 16 for details about changing the Ink Ribbon and Transfer Film.
  • Page 79 Operating Manual PEAK RTX6600 Error message Cause and solution There was a card jam. Remove the cards by rotating the Ejection Dial, and press the SET Card Feed Remove Key. →See "When a Card is Jammed..." on page 75 for instructions on how to remove cards.
  • Page 80 Operating Manual PEAK RTX6600 Full Color Card Printer Error message Cause and solution During operation of the IC option 2, data reception by the computer IC2 Access Error was interrupted. Press the SET Key. →Follow the directions of the application printing cards.

  • Page 81: When A Card Is Jammed

    Operating Manual PEAK RTX6600 When a Card is Jammed... Use the following procedure to remove cards jammed during printing or when the jammed card is unable to be removed despite the SET Key being pressed. Ejection Dials are at 3 locations within the printer.
  • Page 82 Operating Manual PEAK RTX6600 Full Color Card Printer (If cards can be seen in the feed slot) Rotate the reverse feeding knob. Reverse Feeding Knob • Remove cards jammed in the cleaning section from the feed slot. • Cards jammed in the reverse section can also be output.
  • Page 83 Operating Manual PEAK RTX6600 b Rotate the reverse knob so that the edge of the cards is at the upper left, and rotate the reverse feeding knob so that this outputs as in the figure at right. • Jammed cards will be output from the top of the printer, so remove these by hand.

  • Page 84: If The Ink Ribbon Or Transfer Film Are Cut

    Operating Manual PEAK RTX6600 Full Color Card Printer If the Ink Ribbon or Transfer Film are Cut If the Ink Ribbon or Transfer Film are cut for any reason, then repair these using the method below. Remove the Ink Ribbon Cassette or Transfer Film Cassette.
  • Page 85 Operating Manual PEAK RTX6600 Rotate the winding side knob. Ink Ribbon Transfer Film • Rotate the knob until the joined section of the Ink Cassette Cassette Ribbon or Transfer Film is fully inside the winding side spool spindle. Return the Ink Ribbon Cassette or Transfer Film Cassette to their original positions.

  • Page 86: When Cards Are Not Printed Correctly

    Operating Manual PEAK RTX6600 Full Color Card Printer When Cards are Not Printed Correctly... If missing or incorrect colors are printed on a card or cards are incorrectly printed, resolve the problem according to the following instructions. Problem Cause and solution...
  • Page 87 Operating Manual PEAK RTX6600 Problem Cause and solution White cards (unprinted Only color image data was received with the Black Ink Ribbon cards) are output. loaded. Use the Overcoating Color Ink Ribbon when printing in color. →See "Changing the Ink Ribbon and Transfer Film" on page 16 for details about changing the Ink Ribbon.

  • Page 88: Other Troubles

    Operating Manual PEAK RTX6600 Full Color Card Printer Problem Cause and solution Some or all of the printed Is the Transfer Film running between the two pins on top of the area are cloudy. Transfer Film Cassette? Make sure that the Transfer Film is correctly loaded.

  • Page 89: Appendix

    Operating Manual PEAK RTX6600 Appendix Consumables  Ink Ribbon/Transfer Film The 4 types of Ink Ribbon that can be used in this printer are as follows. Number of Name Type Product no Remarks Printable Sides RTX6020 500 card yield -...

  • Page 90: Cards

    Operating Manual PEAK RTX6600 Full Color Card Printer Cards Use only cards that conform to the CR-80 standard. Size: 3.4" × 2.1" (86 mm × 54 mm) Thickness: 0.03"-0.04" (0.76 mm-1.00 mm) Material: PVC, PET, PET-G, Composite PVC, PC Do not use cards that do not conform to the CR-80 standard. Such cards may not be printed properly.

  • Page 91: Updating The Printer's Software

    Operating Manual PEAK RTX6600 Updating the Printer's Software Please contact your reseller for upgrades to printer firmware and drivers. Identification Systems Group...

  • Page 92: Menu Route Map (User Mode)

    Operating Manual PEAK RTX6600 Full Color Card Printer Menu Route Map (User Mode) Normal Mode User Mode Main Menu Settings Menu MENU Ready to Print Printer Info. Card Count [User Mode] SET:>> MENU Total Count MENU Exit Menu ? Ribbon Remainder...
  • Page 93 Operating Manual PEAK RTX6600 User Mode Settings Menu To Main Menu To [Image Setup] Menu (Previous Page) Ribbon Setup Ribbon Type SET:>> MENU Film Type Ribbon Notice(%) MENU Film Notice(%) Card Setup Card Type SET:>> MENU Decurl(Front) Decurl(Back) Normal Exit...

  • Page 94: Main Specifications

    Operating Manual PEAK RTX6600 Full Color Card Printer Main Specifications RTX6600 Function Double-sided printing (full color) Print system Indirect transfer system Print media Material: PVC, PET, PET-G, Composite PVC, PC Thickness: 0.76-1.00 mm Size: according to CR-80 standards Print quality...
