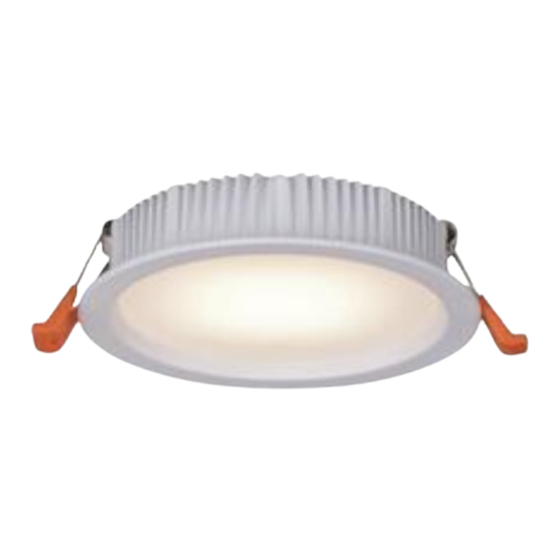

Patriot Lighting RS3122 Manual

4-3/4" recessed light, 6-3/4" recessed light

Download this manual

PACKAGE CONTENTS

HARDWARE CONTENTS Note: Hardware not shown actual size.

Questions, problems, missing parts?

Before returning to your retailer, call our customer service at 1-800-887-6326

Monday – Friday 9:00 a.m. – 5:00 p.m. CST

Template

X1 (4-1/4" / 6-1/4")

SKU Number: 349-2134

4-3/4" RECESSED LIGHT

6-3/4" RECESSED LIGHT

Model Number: RS3122

349-2135

RS3126

Wire Connector

211210

Need help?

Do you have a question about the RS3122 and is the answer not in the manual?

John Petr

February 5, 2025

Can this be installed in a shower?

Page 1 SKU Number: 349-2134 349-2135 4-3/4" RECESSED LIGHT 6-3/4" RECESSED LIGHT Model Number: RS3122 RS3126 Questions, problems, missing parts? Before returning to your retailer, call our customer service at 1-800-887-6326 Monday – Friday 9:00 a.m. – 5:00 p.m. CST PACKAGE CONTENTS HARDWARE CONTENTS Note: Hardware not shown actual size.
Page 2 SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. WARNING ● Turn off electricity at main fuse box (or circuit breaker box) before beginning installation by removing fuse (or switching off circuit breaker). ●...
Page 3 ASSEMBLY INSTRUCTIONS (continued) 5. Connect the male plug to the 6. Push spring loaded clips on female plug and secure the the fixture upwards and insert connector. fixture base into the mounting hole. Release the clips to secure the fixture to the ceiling. Turn on the power at fuse or circuit box.
Page 4 If unable to fix any of the above issues, please consult a certified electrician. FIVE-YEAR LIMITED WARRANTY: If, during normal use, this PATRIOT LIGHTING lighting fixture breaks or fails due to a defect in material workmanship within five (5) years from the date of original purchase, simply bring this lighting fixture with the original sales receipt back to your nearest MENARDS retail store.

Rs3126349-2134349-2135
